TB7100A1000/U MultiPRO Multi-Application Thermostat, 7-Day Programmable or Non-Programmable
- Part #
- TB7100A1000/U
- UPC
- 085267676724
$164.59
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Premier White®
Full specifications 4 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

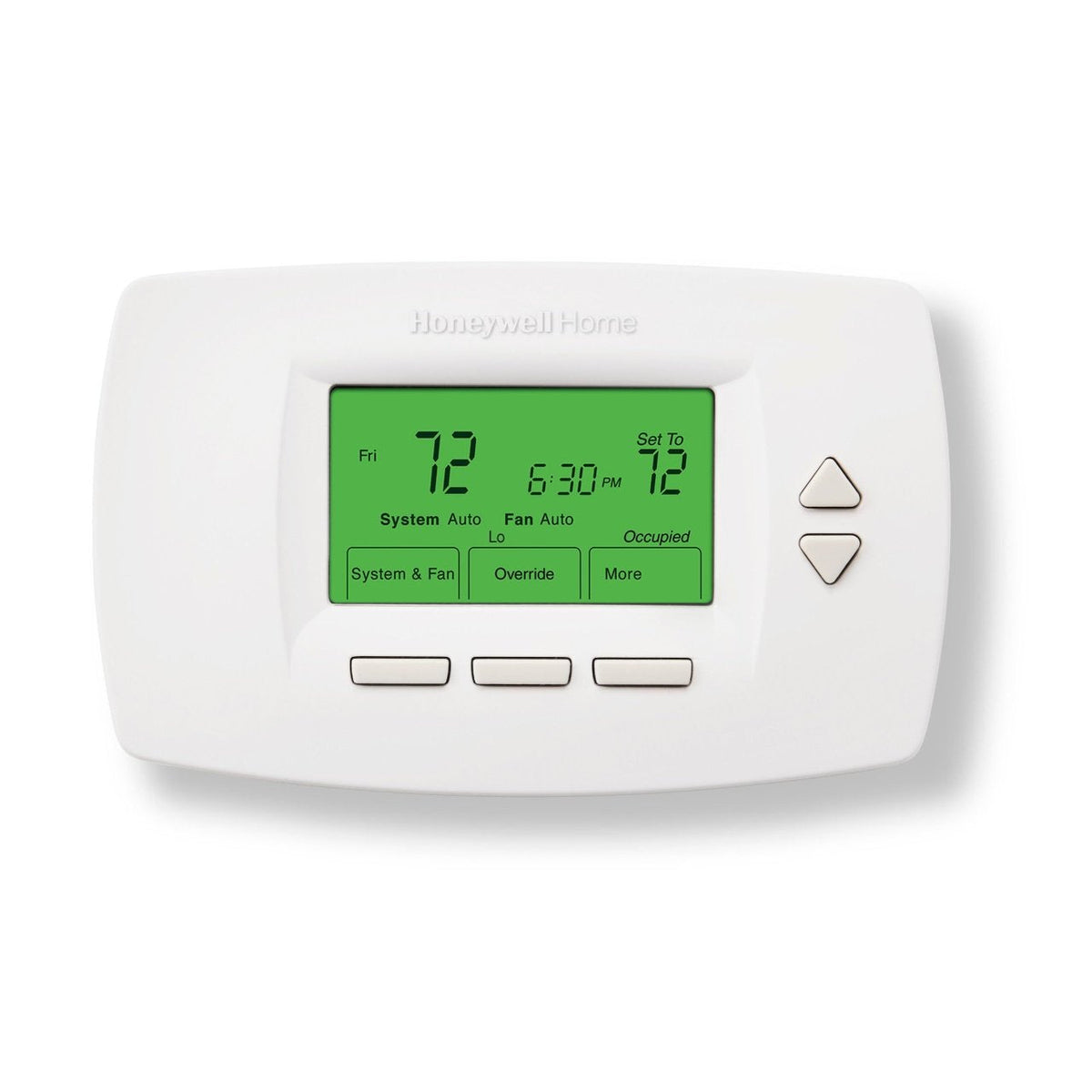

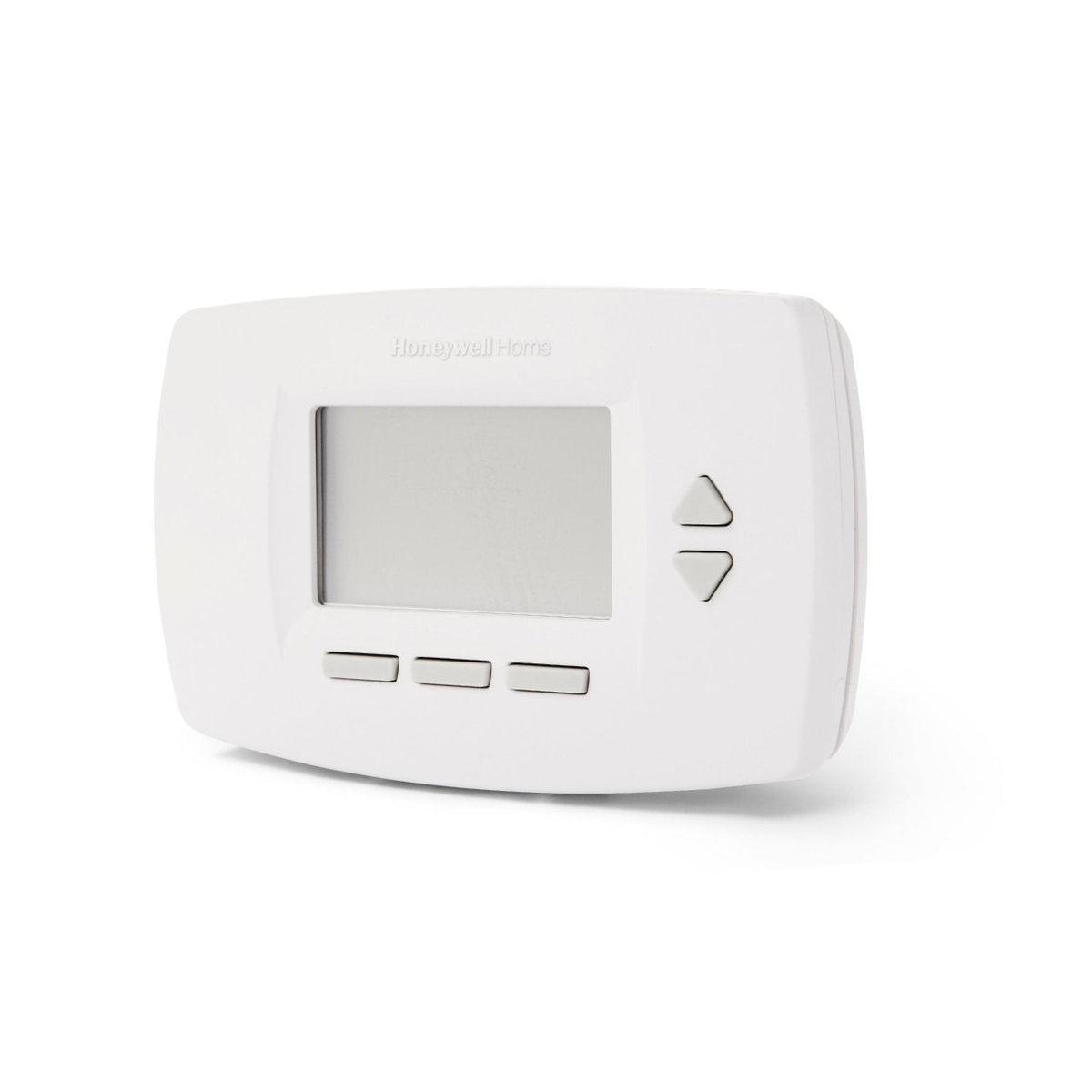

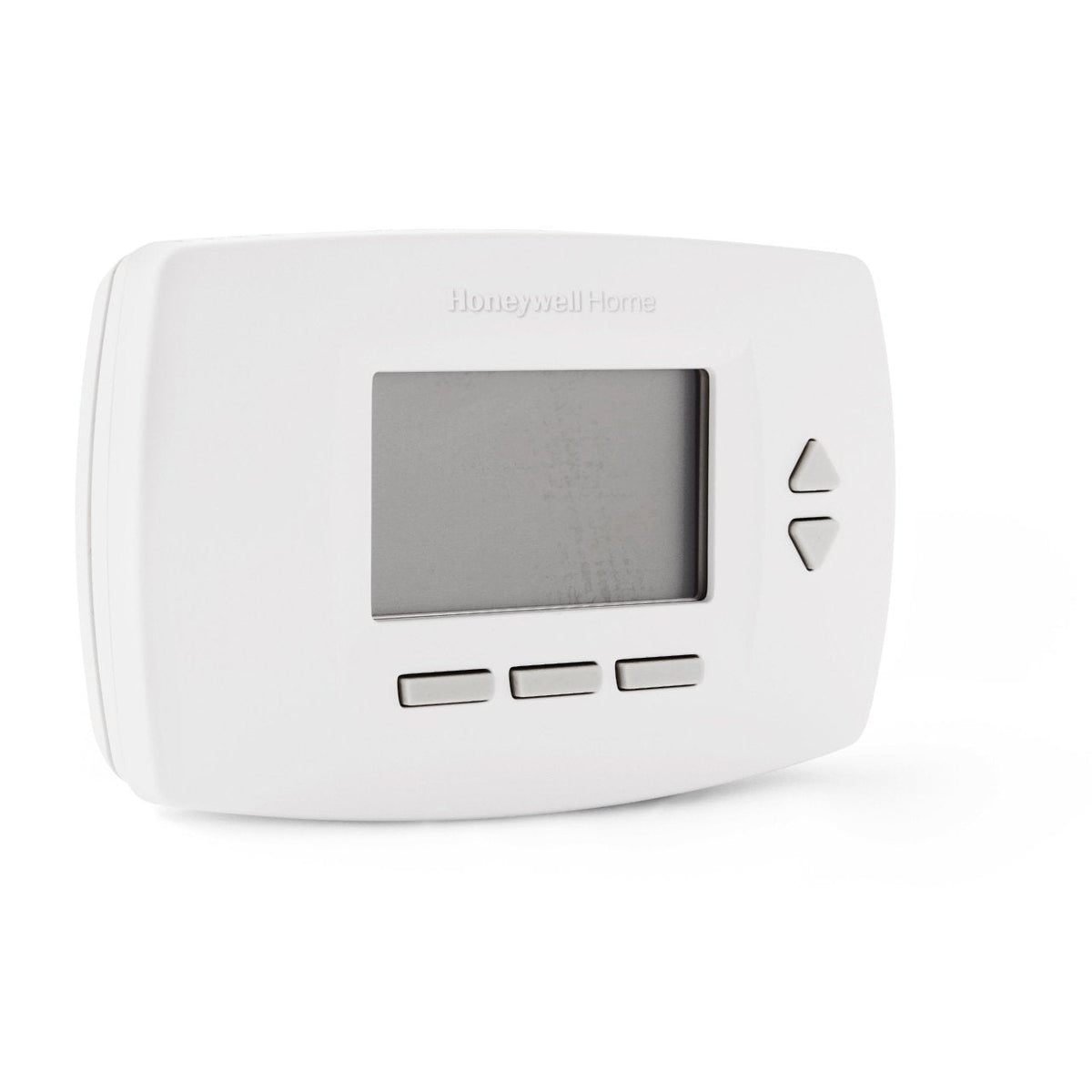

TB7100A1000/U — MultiPRO Multi-Application Thermostat, 7-Day Programmable or Non-Programmable.
Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.
Specifications
| Part Number | TB7100A1000/U |
|---|---|
| Application | Conventional Systems, Heat Pump Systems, Fan Coil Systems, PTAC Systems |
| Thermostat Type | Programmable |
| Approvals and Standards | Meets the same requirements as UL-873 |
| Stages | 1 Heat/1 Cool Conventional Systems, Up to 2 Heat/1 Cool Heat Pump Systems, 2 or 4 pipe Fan Coil Systems, Up to 2 Heat/1 Cool PTAC Systems |
| Smart Home Integration | No |
| Display Type | LCD Screen |
| Display Size | 3.75 sq in |
| Modes of Operation | Heat, Cool, Auto, Off |
| Alerts and Reminders | Battery Replacement |
| Power Supply | Battery Powered, Hardwired |
| Battery Type | Alkaline |
| Power Source | Battery Operated, Hardwired |
| Number of Batteries | 2 |
| Battery Life | 1 Year |
| Battery Size | AA |
| Manufacturer Warranty | 5 Years |
| Includes | 3 Speed Fan Control and Configurable Sensor Input for Indoor Temperature, Occupancy Sensor, Changeover |
| WiFi | No |
| Z-Wave | No |
| Z-Wave Specifications | Not Applicable |
| RedLINK | No |
| Color | Premier White® |
| Sensor Type | Thermistor |
| Ambient Operating Temperature (Max) | 102 °F, 39 °C |
| Ambient Operating Temperature (Min) | 37 °F, 2.8 °C |
| Differential Temperature | ± 1 °F, ± 0.5 °C |
| Clock Type | Year Clock |
| Temperature Accuracy | ±0.5 °C, ±1 °F |
| Mounting Type | Horizontal Mount |
| Number of Fan Speeds | 3 |
| Operating Frequency | 50 Hz, 60 Hz |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Set point Temperature (Max) | Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C |
| Set point Temperature (Min) | Heat: 40 °F, Heat: 4 °C, Cool: 50 °F, Cool: 10 °C |
| Shipping and Storage Temperature (Max) | 120 °F, 49 °C |
| Shipping and Storage Temperature (Min) | 20 °F, -29 °C |
| Switch Action | DPDT |
| Mounting Location | Wall, Internal |
| Switch Type | Relay |
| Product Depth | 1.5 in, 38 mm |
| Hazmat Information | LI metal Button Cell contained in Equipment *No Label is required* |
| UPC | 085267676724 |
| Country of Origin | MX |
| Product Features | Selectable programmable or non-programmable.; Includes 3 speed fan control and configurable sensor input for indoor temperature, occupancy sensor, or changeover |
Ratings & details
- Brochure for MultiPRO Thermostat (3.6MB PDF)
