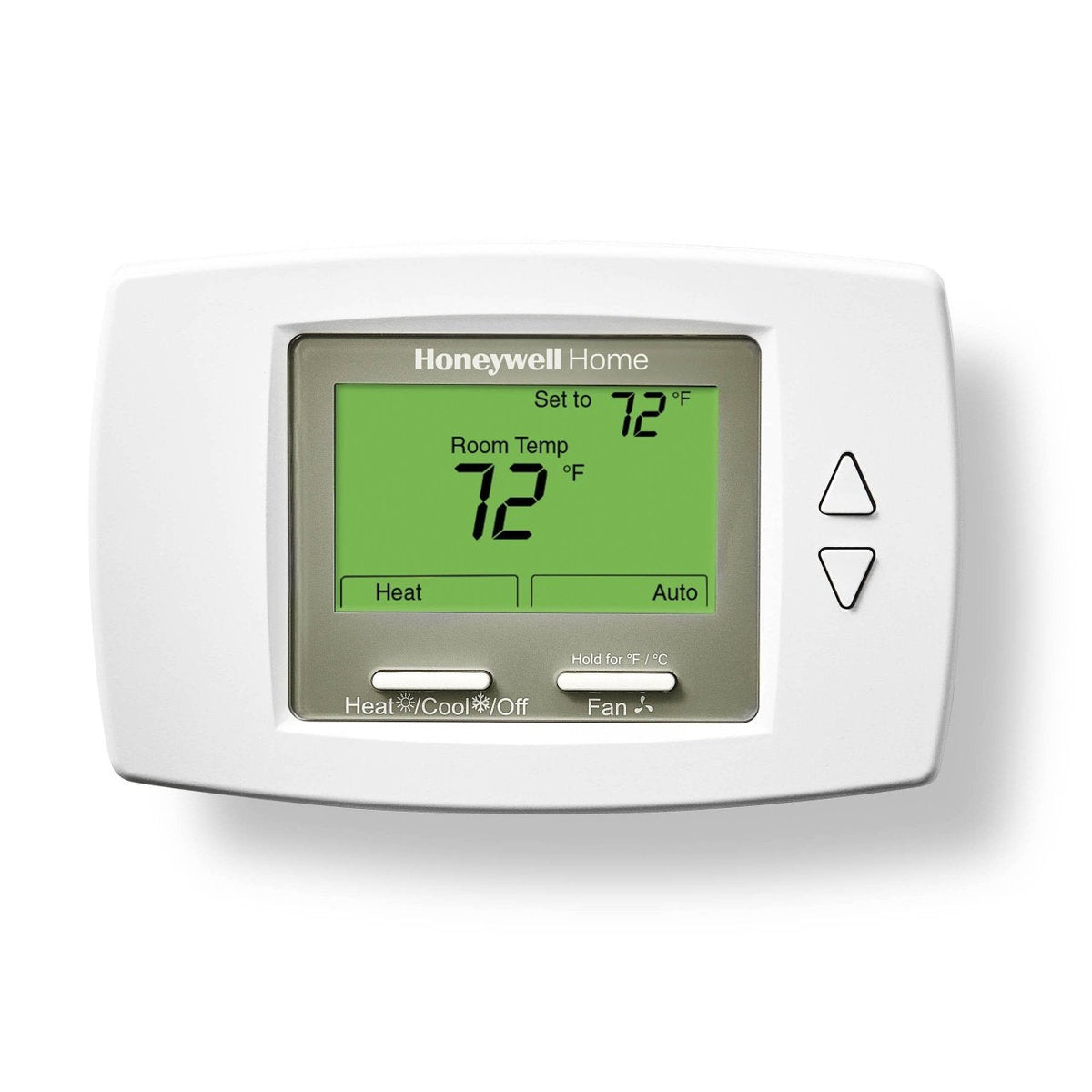

TB6575A1000/U SuitePRO Digital Fan Coil Thermostat, 2 or 4 Pipe, 3-Speed Fan, 120/240 VAC
- Part #
- TB6575A1000/U
- UPC
- 085267314466
$193.71
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Premier White®
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
TB6575A1000/U — SuitePRO Digital Fan Coil Thermostat, 2 or 4 Pipe, 3-Speed Fan, 120/240 VAC.
Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.
Specifications
| Part Number | TB6575A1000/U |
|---|---|
| Application | 2 or 4 pipe fan coil, Heat/Cool manual/auto changeover, 3-speed fan, 120 - 240 Vac |
| Thermostat Type | Digital, Non programmable, Fan coil |
| Approvals and Standards | CSA Certified, FCC Part 15, Class B, Meets the same requirements as UL-873 |
| Smart Home Integration | No |
| Display Type | LCD Screen |
| Touchscreen | No |
| Modes of Operation | Heating |
| Energy Star Certified | No |
| Heat-Cool Changeover | Auto, Manual |
| Power Source | Line Voltage |
| Manufacturer Warranty | 2 Years |
| For Use With | Thermostats/Timers, Single zone Thermostat range |
| WiFi | No |
| Z-Wave | No |
| RedLINK | No |
| Color | Premier White® |
| Sensor Type | NTC 20 kohm |
| Ambient Operating Temperature (Max) | 90 °F, 32 °C |
| Ambient Operating Temperature (Min) | 40 °F, 4 °C |
| Operating Relative Humidity (Max) | 95% RH, non-condensing |
| Operating Relative Humidity (Min) | 5% RH, non-condensing |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Shipping and Storage Temperature (Max) | 130 °F, 55 °C |
| Shipping and Storage Temperature (Min) | 20 °F, -29 °C |
| Mounting Location | J-Box |
| Product Height | 3.82 in, 97 mm |
| Product Width | 5.82 in, 148 mm |
| Product Depth | 1.13 in, 29 mm |
| UPC | 085267314466 |
| Country of Origin | MX |
