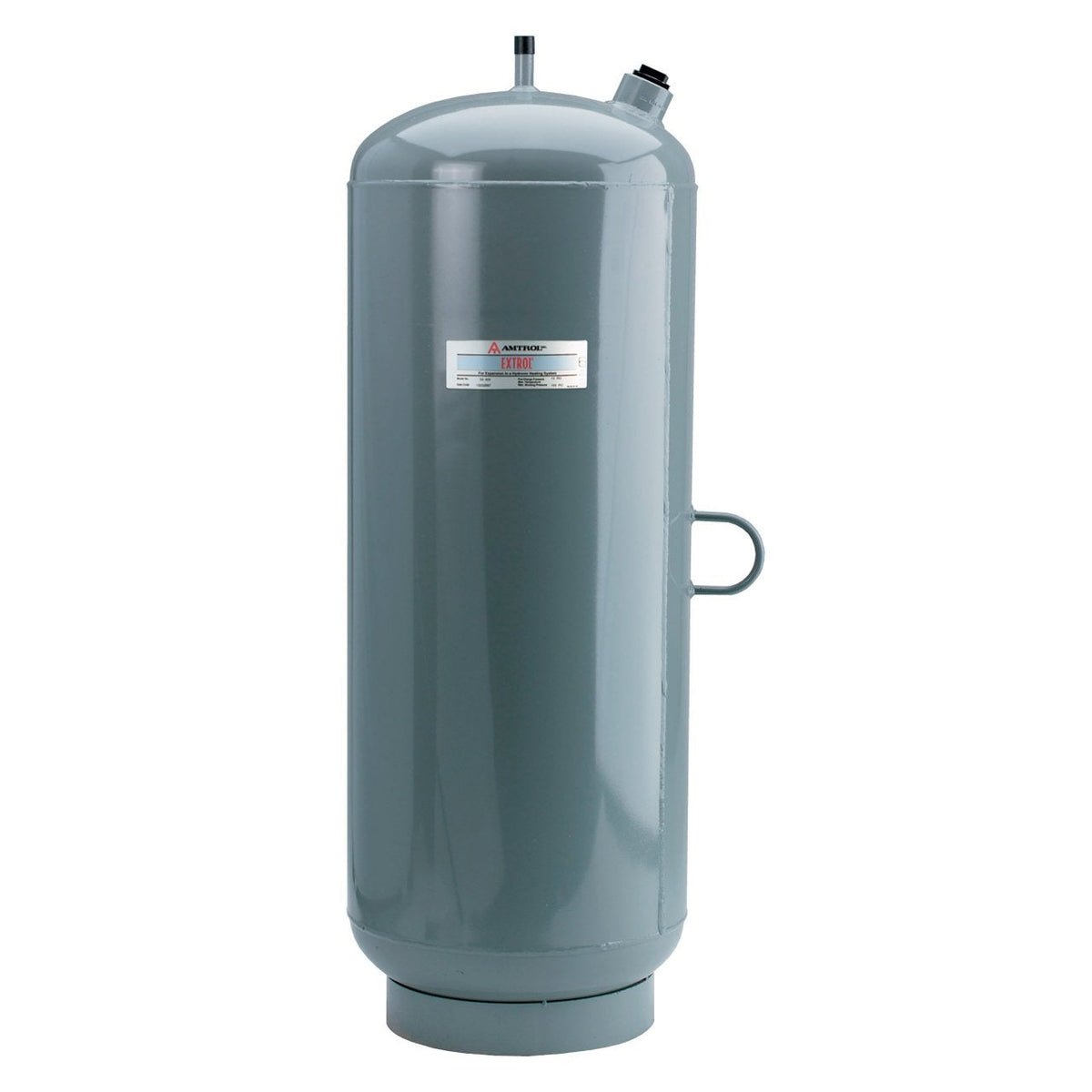

TAXV-080/U TAXV Thermal Expansion Tank, 44.4 gal, Vertical, 1/2 in Male NPT, ASME
Ships by truck

TAXV-080/U TAXV Thermal Expansion Tank, 44.4 gal, Vertical, 1/2 in Male NPT, ASME

Part #
TAXV-080/U
UPC
085267829267
$2,809.54

Available · ships in 1–2 business days

Ships by truck · free freight delivery. The carrier calls you to schedule delivery.

Size
1/2 in
Material
Steel
Connection
NPT
Finish
Red

Full specifications 1 manufacturer document

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

TAXV-080/U — TAXV Thermal Expansion Tank, 44.4 gal, Vertical, 1/2 in Male NPT, ASME.

Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.

Specifications

Part Number TAXV-080/U
Application Hydronic Volume Expansion
Approvals and Standards ASME Construction
Compatible With Closed Heating Systems
Operating Temperature (Max) 240 °F, 115 °C
Tank Safe Operating Pressure (Max) 125 psi, 862 kPa
Connection Size 1/2 in
Connection Type NPT
Connector Type Male
Manufacturer Warranty 1 Year
Color Red
Body Material Steel
Diaphragm Material Butyl/EPDM Compound
Maximum Acceptance Volume 22.6 gal, 85.6 L
Product Height 56 in, 1422 mm
Product Weight 70 lb, 89.1 kg
Pre-Charge Pressure 12 psi, 83 kPa
UPC 085267829267
