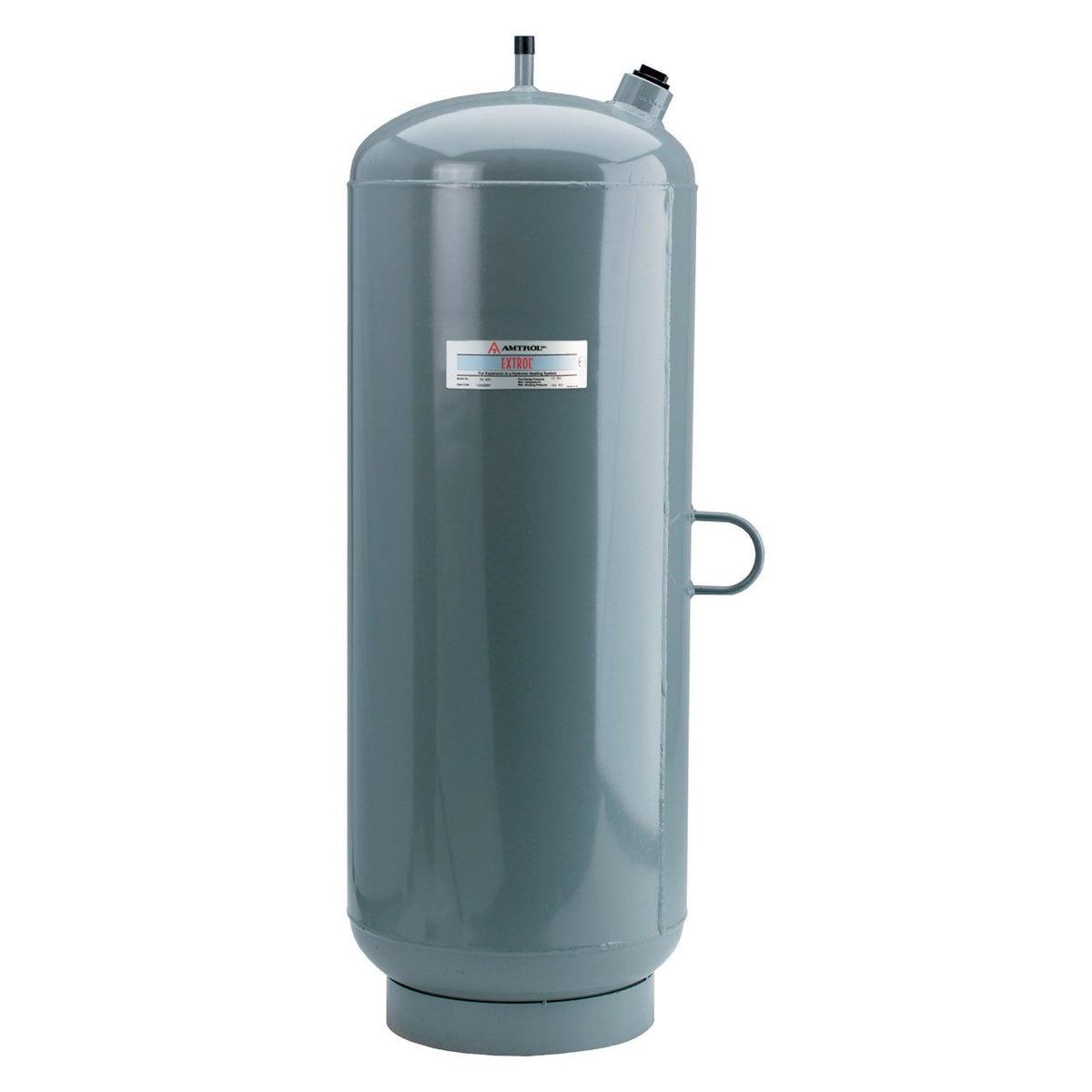

TAXV-040/U TAXV Thermal Expansion Tank, 21.7 gal, Vertical, 1/2 in Male NPT, ASME
- Part #
- TAXV-040/U
- UPC
- 085267829243
$2,970.00
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/2 in
- Material
- Steel
- Connection
- NPT
- Finish
- Red
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
TAXV-040/U — TAXV Thermal Expansion Tank, 21.7 gal, Vertical, 1/2 in Male NPT, ASME.
Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.
Specifications
| Part Number | TAXV-040/U |
|---|---|
| Application | Hydronic Volume Expansion |
| Approvals and Standards | ASME Construction |
| Compatible With | Closed Heating Systems |
| Operating Temperature (Max) | 240 °F, 115 °C |
| Tank Safe Operating Pressure (Max) | 125 psi, 862 kPa |
| Connection Size | 1/2 in |
| Connection Type | NPT |
| Connector Type | Male |
| Manufacturer Warranty | 1 Year |
| Color | Red |
| Body Material | Steel |
| Diaphragm Material | Butyl/EPDM Compound |
| Maximum Acceptance Volume | 11.3 gal, 42.8 L |
| Product Height | 29.5 in, 749 mm |
| Product Weight | 116 lb, 52.7 kg |
| Pre-Charge Pressure | 12 psi, 83 kPa |
| UPC | 085267829243 |
