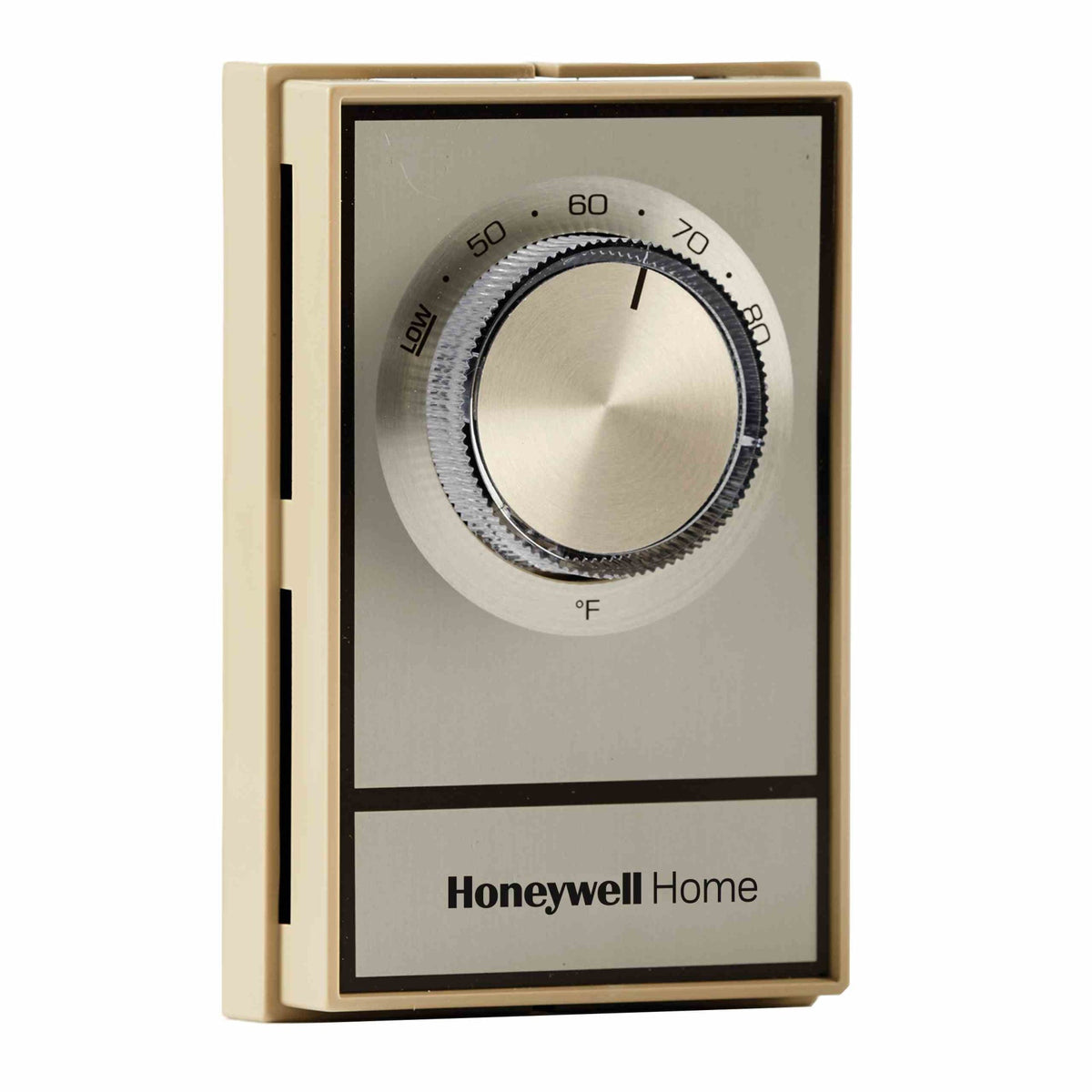

T498A1778/U Electric Heat Thermostat with Gold Baseboard
- Part #
- T498A1778/U
$56.11
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Gold
Full specifications 2 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
T498A1778/U — Electric Heat Thermostat with Gold Baseboard.
Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.
Specifications
| Part Number | T498A1778/U |
|---|---|
| Type | Line-voltage thermostat |
| Shipping Weight | 0.5 lb |
| Application | Electric baseboards, Convectors and fan forced heaters (resistive rated loads). |
| Thermostat Type | Non programmable |
| Approvals and Standards | CSA Listed: File No. LR1322, UL Listed; File No. E4436, Guide No. XAPX |
| Stages | 1 Heat |
| Smart Home Integration | No |
| Touchscreen | No |
| Modes of Operation | Heating |
| Program Type | Manual / Not Programmed |
| Energy Star Certified | No |
| Frequency | 60 Hz |
| Manufacturer Warranty | 1 Year |
| Includes | Range stops, Locking cover, Extra knob decal for recalibration |
| WiFi | No |
| Z-Wave | No |
| RedLINK | No |
| Color | Gold |
| Sensor Type | Bimetal |
| Ambient Operating Temperature (Max) | 80 °F, 27°C |
| Ambient Operating Temperature (Min) | 40 °F, 5 °C |
| Differential Temperature | 3 °F, 2 °C |
| Demand Response | No |
| Temperature Accuracy | 2, 1 |
| Electrical Connection Type | 6 in Copper Leadwires, 150 mm Copper Leadwires |
| Mounting Type | Single Gang Electrical Box, Vertical Mount |
| Set point Temperature (Max) | 80 °F, 27 °C |
| Set point Temperature (Min) | 40 °F, 5 °C |
| Switch Action | SPST |
| Mounting Location | J-Box |
| Product Height | 4.56 in, 116 mm |
| Product Width | 2.88 in, 73 mm |
| Product Depth | 1.9375 in, 33 mm |
