T100B1035 Thermostat Radiator Actuator With Remote Sensor - 48-79F
- Part #
- T100B1035
- UPC
- 085267818575
$109.09
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- White
Full specifications 3 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

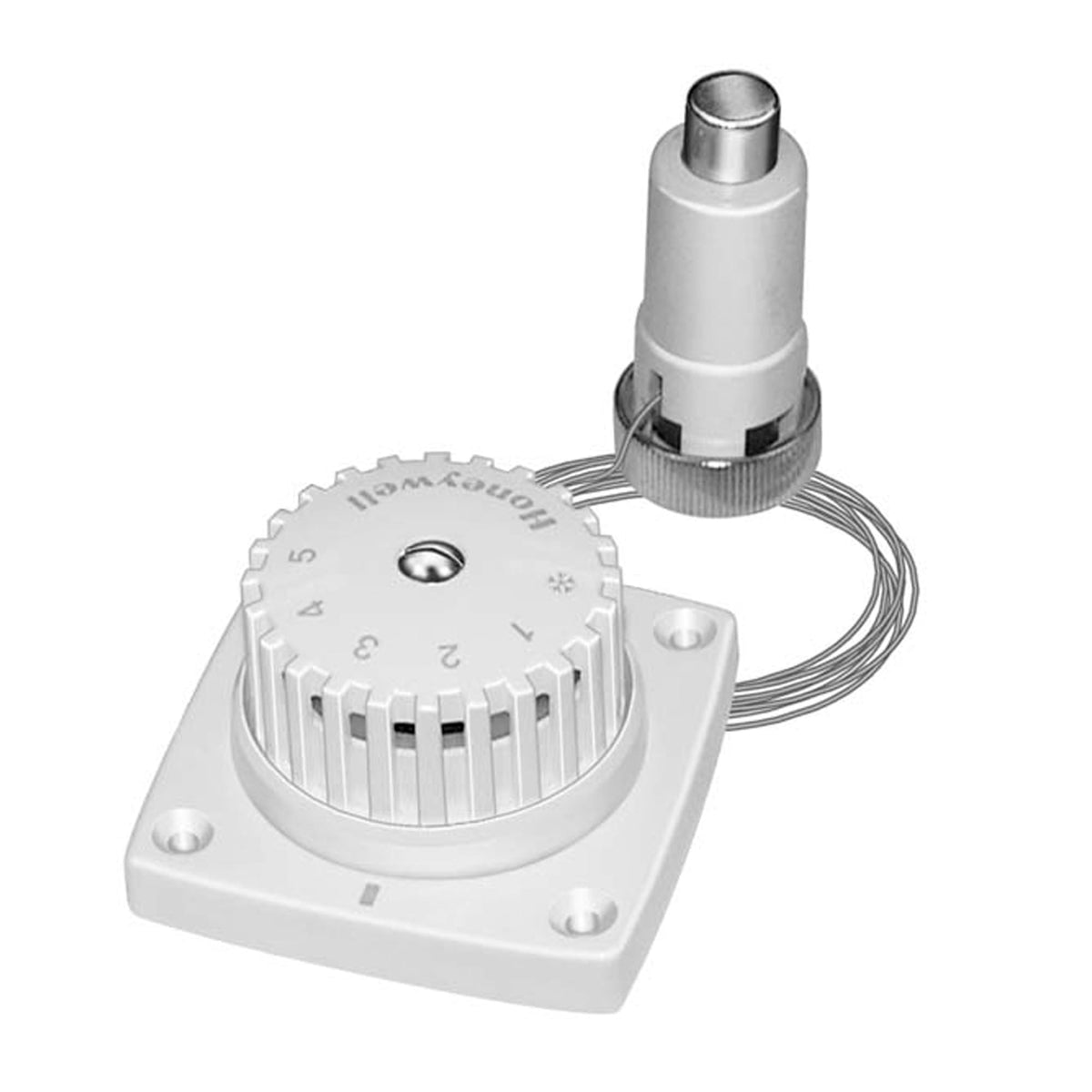

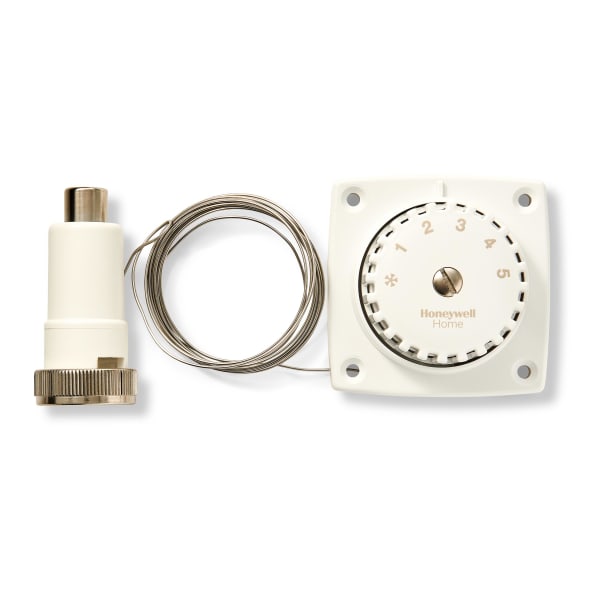

T100B1035 — Thermostat Radiator Actuator With Remote Sensor - 48-79F.
Manual and thermostatic radiator valves and heads for room-by-room control.
Specifications
| Part Number | T100B1035 |
|---|---|
| Type | Thermostatic radiator actuator |
| Sensor | Remote |
| UPC | 085267818575 |
| Application | A control with combined remote setpoint and sensor mounted on wall. Connected by a capillary tube to an actuator, which is mounted on the valve body. |
| Body-Head Connection | 30 mm |
| Radiator Connection Size | 1 13/16 in, 30 mm |
| Color | White |
| Includes | Remote Sensor, Setpoint dial, Valve Actuator |
| Sensor Location | Remote |
| Control Temperature (Max) | 79 °F, 29 °C |
| Control Temperature (Min) | 48 °F, 9 °C |
| Compatible With | Hot Water, Steam |
| For Use With | V100 Radiator Valve, V2000 Radiator Valves |
| Manufacturer Warranty | 1 Year |
| Product Height | 1.81 in |
| Product Length | 2.97 in |
