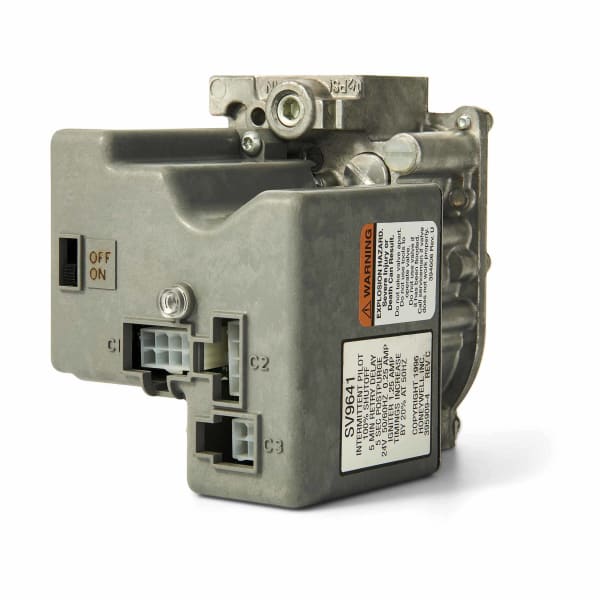

SV9641M4510/U Standard Opening Intermittent Pilot with Comb Air Control

SV9641M4510/U Standard Opening Intermittent Pilot with Comb Air Control

Part #
SV9641M4510/U
UPC
085267297684
$516.71

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

SV9641M4510/U — Standard Opening Intermittent Pilot with Comb Air Control.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number SV9641M4510/U
Type SmartValve system control
Ignition Intermittent pilot
Opening rate Standard opening
UPC 085267297684
Application Single-Stage Standard Opening Valve with Intermittent Hot Surface Pilot Ignition
Ignition Type Intermittent Hot Surface Pilot Ignition
Type of Fuel Natural Gas
Regulation Type Standard Opening
Capacity (Max) 415 ft³/hr, 11.8 m³/hr
Capacity (Min) 30 ft³/hr, 0.8 m³/hr
Operating Voltage 24 V AC
Inlet Connection Size 3/4 in
Inlet Connection Type NPT
Outlet Connection Size 3/4 in
Outlet Connection Type NPT
Pressure Regulator Set point 3.5 in WC, 0.87 kPa
Pressure Tap Connection Size 1/8 in
Pressure Tap Connection Type NPT
Typical Ignition Hardware Q3450, Q3480
Ignition Trials To Lockout Continuous Retry
Pre-Purge 15 seconds
Universal Yes
For Use With ST9160 and ST9162 Electronic Fan Timers
Compatible With Intermittent Pilot Burners, Gas-fired Systems
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 50 Hz, 60 Hz
Pilot Gas Outlet Yes
Product Height 4.9 in
Product Length 4.1 in
Product Width 3.2 in

Ratings & details

  • Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
