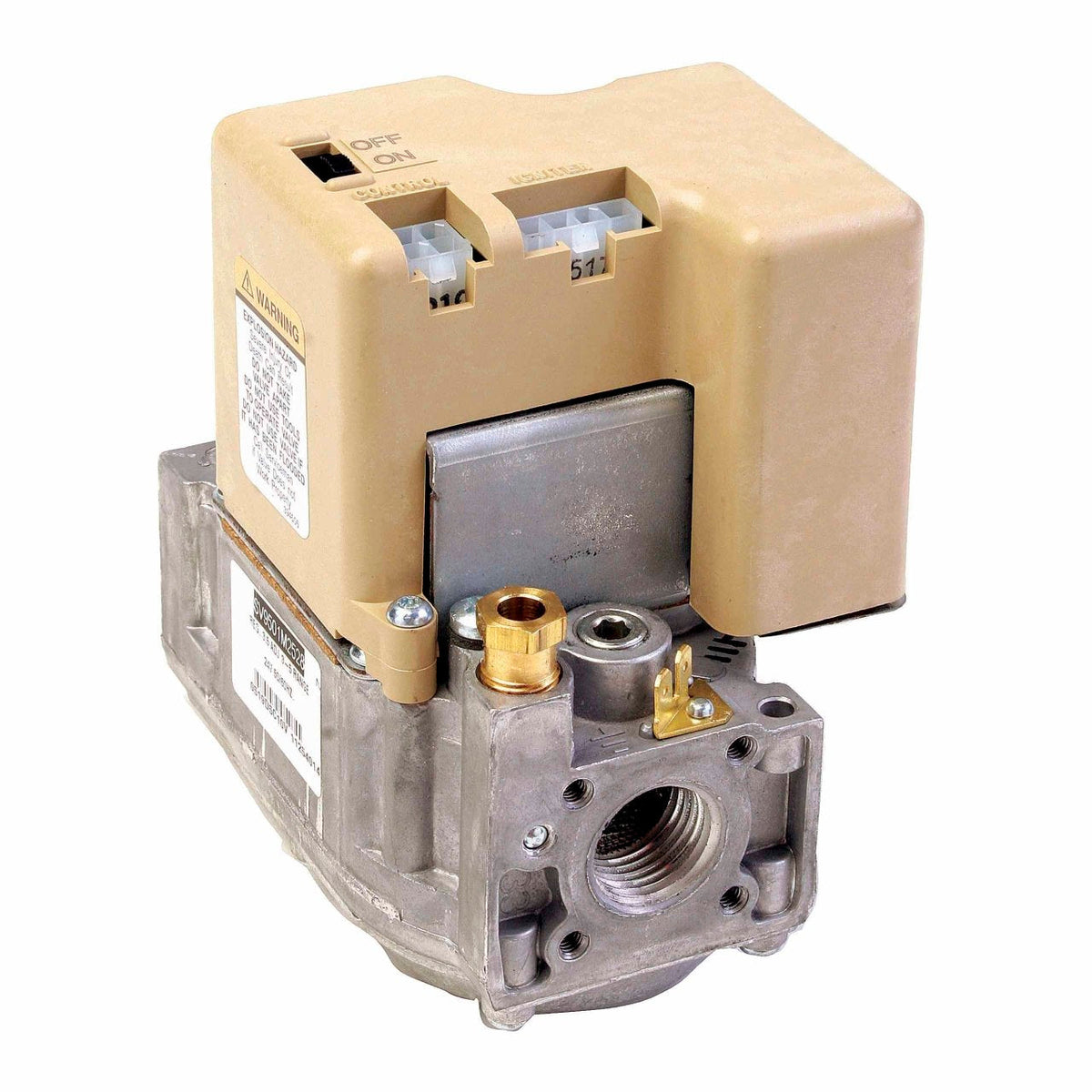

SV9602P4816/U Intermittent Pilot Gas Valve, Step Opening, 3/4 in x 3/4 in, 3.5 in WC / 0.7 in Step
- Part #
- SV9602P4816/U
- UPC
- 085267795067
- Type
- Gas Valves
$434.53
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 4 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
SV9602P4816/U — Intermittent Pilot Gas Valve, Step Opening, 3/4 in x 3/4 in, 3.5 in WC / 0.7 in Step.
Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.
Specifications
| Part Number | SV9602P4816/U |
|---|---|
| Application | Single-Stage Step Opening Valve with Intermittent Hot Surface Pilot Ignition |
| Ignition Type | Intermittent Hot Surface Pilot Ignition |
| Type of Fuel | Natural Gas |
| Regulation Type | Step Opening |
| Capacity (Max) | 415 ft³/hr, 11.8 m3/hr |
| Capacity (Min) | 30 ft³/hr, 0.8 m3/hr |
| Operating Voltage | 24 V AC |
| Inlet Connection Size | 3/4 in |
| Inlet Connection Type | NPT |
| Outlet Connection Size | 3/4 in |
| Outlet Connection Type | NPT |
| Pressure Regulator Set point | Full Rate: 3.5 in WC; Step Setting: 0.7 in WC, Full Rate: 0.87 kPa; Step Setting: 0.17 kPa |
| Pressure Tap Connection Size | 1/8 in |
| Pressure Tap Connection Type | NPT |
| Ignition Trials To Lockout | Continuous Retry |
| Includes | Two 3/4 in to 1/2 in Reducer Bushings, Extension Harness |
| Compatible With | This system is suitable for application in a wide range of gas-fired appliances |
| Valve Body Pattern | Straight Through |
| Ambient Operating Temperature (Max) | 175 °F, 79 °C |
| Ambient Operating Temperature (Min) | 40 °F, -40 °C |
| Approvals and Standards | CSA International: 112395, AGA IAS Certified: C2030017, CGA IAS Certified: C2030017, UL Approved: 98PSC00009 |
| Mounting Type | 0° to 90° in any direction from the upright position of the gas control knob, including vertically |
| Operating Frequency | 50 Hz, 60 Hz |
| Product Height | 4.9 in, 124 mm |
| Product Length | 4.1 in, 104 mm |
| Product Width | 3.2 in, 81 mm |
| UPC | 085267795067 |
| Country of Origin | MX |
Ratings & details
- Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
