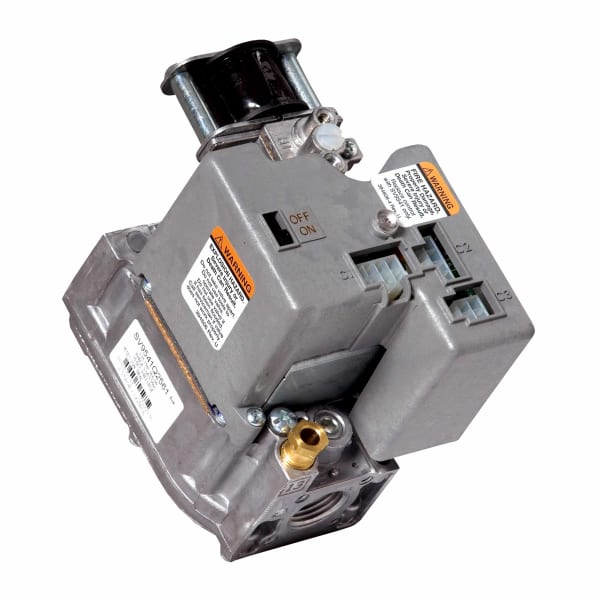

SV9541Q2561/U Standard 2-Stage Opening SmartValve, Intermittent Hot Surface Pilot, Natural Gas, 1/2 in NPT x 1/2 in NPT

SV9541Q2561/U Standard 2-Stage Opening SmartValve, Intermittent Hot Surface Pilot, Natural Gas, 1/2 in NPT x 1/2 in NPT

Part #
SV9541Q2561/U
UPC
085267297677
$437.06

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

SV9541Q2561/U — Standard 2-Stage Opening SmartValve, Intermittent Hot Surface Pilot, Natural Gas, 1/2 in NPT x 1/2 in NPT.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number SV9541Q2561/U
Type SmartValve system control
Ignition Intermittent pilot
Opening rate Standard opening
Staging Two-stage
UPC 085267297677
Application Two-Stage Standard Opening Valve with Intermittent Hot Surface Pilot Ignition
Ignition Type Intermittent Hot Surface Pilot Ignition
Type of Fuel Natural Gas
Regulation Type Standard Opening
Capacity (Max) 150 ft³/hr, 4.2 m3/hr
Capacity (Min) 20 ft³/hr, 0.6 m³/hr
Operating Voltage 24 V AC
Inlet Connection Size 1/2 in
Inlet Connection Type NPT
Outlet Connection Size 1/2 in
Outlet Connection Type NPT
Pressure Regulator Set point High: 3.2 in WC; Low: 1.7in WC, High: 0.80 kPa; Low: 0.42 kPa
Pressure Tap Connection Size 1/8 in
Pressure Tap Connection Type NPT
Ignition Trials To Lockout Continuous Retry
Flame Failure Response Time 1.6 seconds maximum at 2 μA
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Approvals and Standards CSA International: 112395
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 60 Hz
Product Height 4.9 in, 124 mm
Product Length 4.1 in, 104 mm
Product Width 3.2 in, 81 mm

Ratings & details

  • Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
