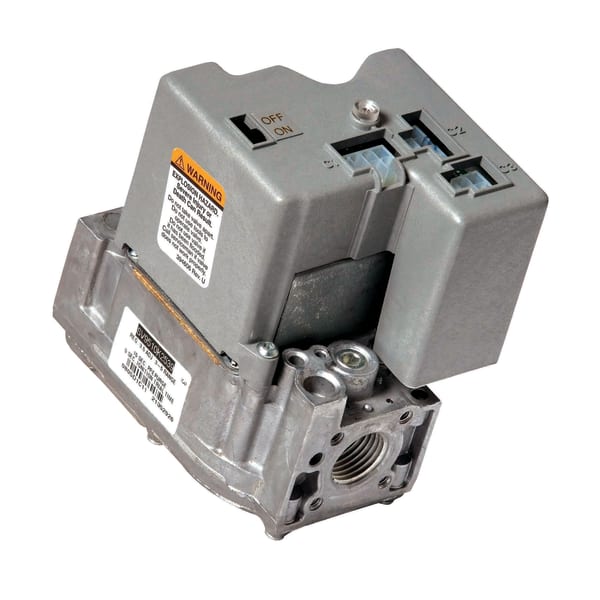

SV9510K2539/U Slow Opening SmartValve, Direct Hot Surface Ignition, Natural/LP with Included Conversion Kit, 1/2 in NPTx 1/2 in NPT

SV9510K2539/U Slow Opening SmartValve, Direct Hot Surface Ignition, Natural/LP with Included Conversion Kit, 1/2 in NPTx 1/2 in NPT

Part #
SV9510K2539/U
UPC
085267297714
$442.73

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 4 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

SV9510K2539/U — Slow Opening SmartValve, Direct Hot Surface Ignition, Natural/LP with Included Conversion Kit, 1/2 in NPTx 1/2 in NPT.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number SV9510K2539/U
Type SmartValve system control
Ignition Direct ignition
Opening rate Slow opening
UPC 085267297714
Application Single-Stage Slow Opening Valve with Direct Hot Surface Pilot Ignition
Ignition Type Direct Hot Surface Ignition
Type of Fuel LP with included conversion kit, Natural Gas
Regulation Type Slow Opening
Capacity (Max) 200 ft³/hr, 5.7 m³/hr
Capacity (Min) 20 ft³/hr, 0.6 m³/hr
Operating Voltage 24 V AC
Inlet Connection Size 1/2 in
Inlet Connection Type NPT
Outlet Connection Size 1/2 in
Outlet Connection Type NPT
Pressure Regulator Set point 3.5 in WC, 0.87 kPa
Pressure Tap Connection Size 1/8 in
Pressure Tap Connection Type NPT
Typical Ignition Hardware Norton 271
Ignition Trials To Lockout 4 Trials
Pre-Purge 15 seconds
Universal Yes
Includes LP Conversion Kit
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Approvals and Standards CAS International: 158158-10592145
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 50 Hz, 60 Hz
Pilot Gas Outlet No
Product Height 4.9 in, 124 mm
Product Length 4.1 in, 104 mm
Product Width 3.2 in, 81 mm
