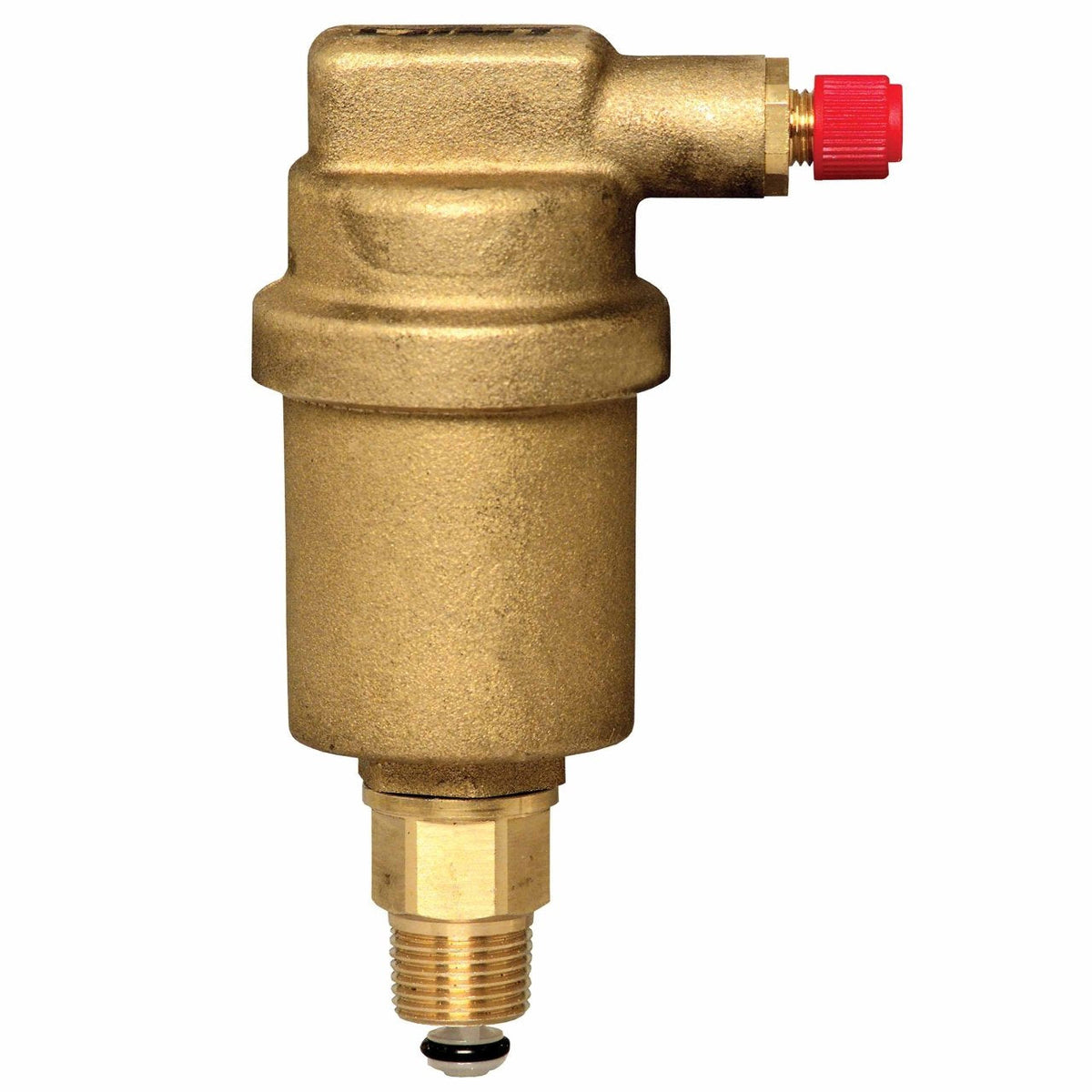

SV175/U Supervent Top Air Vent with Check Valve, 1/2 in
- Part #
- SV175/U
- UPC
- 085267311076
- Type
- Air Vents
$95.79
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/2 in, 12.7 mm
- Material
- Brass
- Connection
- Male NPT
- Finish
- Metallic, Red
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
SV175/U — Supervent Top Air Vent with Check Valve, 1/2 in.
Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.
Specifications
| Part Number | SV175/U |
|---|---|
| Application | Residential, Light Commercial, Air Ventilation, Hydronic Heating Systems, Hydronic Cooling Systems |
| Controlled Media | Non Potable Water |
| Manufacturer Warranty | 1 Year |
| Color | Metallic, Red |
| Compatible With | Hydronic Heating and Cooling Systems |
| For Use With | PV-001RP/U Air Vent Assembly, PV-020RP/U Top Replacement |
| Media Temperature (Max) | 240 °F, 115 °C |
| Bottom Connection | Yes |
| Connection Type | Male NPT |
| Pipe Size | 1/2 in, 12.7 mm |
| DN Size | DN15 |
| Operating Pressure (Max) | 150 psi, 1034 kPa |
| Product Diameter | 2 in, 51 mm |
| Product Height | 3 in, 76 mm |
| Product Length | 2 in, 51 mm |
| Product Weight | 0.43 lb, 0.19 kg |
| Float Material | TPX® Polymethylpentene (PMP) |
| Body Material | Brass |
| UPC | 085267311076 |
| Country of Origin | IT |
