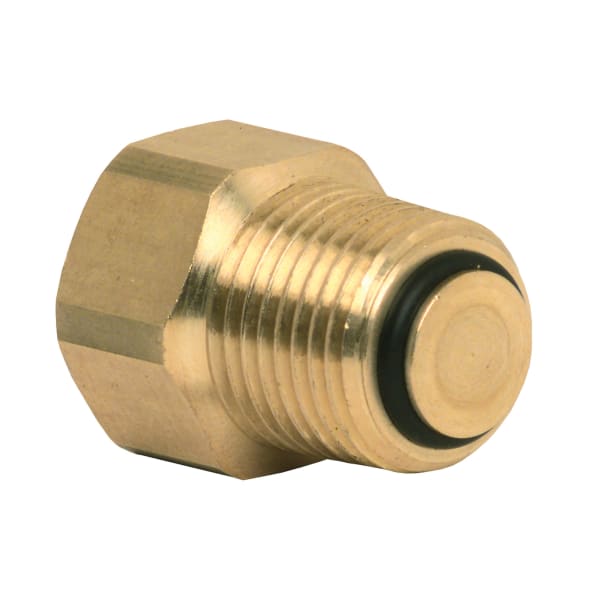

SCV-050/U Service Check Valve
- Part #
- SCV-050/U
- UPC
- 085267298957
$25.51
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/2 in
- Connection
- Inlet FNPT, Outlet MNPT
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
SCV-050/U — Service Check Valve.
Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.
Specifications
| Part Number | SCV-050/U |
|---|---|
| Type | Service check valve |
| Connections | Inlet FNPT, Outlet MNPT |
| Connection size | 1/2 in |
| Maximum temperature | 240 F |
| Maximum pressure | 100 psi |
| UPC | 085267298957 |
| Shipping Weight | 0.2 lb |
| Product Features | Service Check Valves for air vents and expansion tanks allow easy field service without draining system |
| Valve Type | Boiler Valve, Filling Valve |
| Compatible With | DS06 Pressure Regulating Valves |
| DN Size | DN15 |
| Inlet Connection Size | 1/2 in |
| Inlet Connection Type | Female NPT |
| Outlet Connection Size | 1/2 in |
| Outlet Connection Type | Male NPT |
| Media Temperature (Max) | 240 °F, 115 °C |
| Operating Pressure (Max) | 100 psi, 689 kPA |
