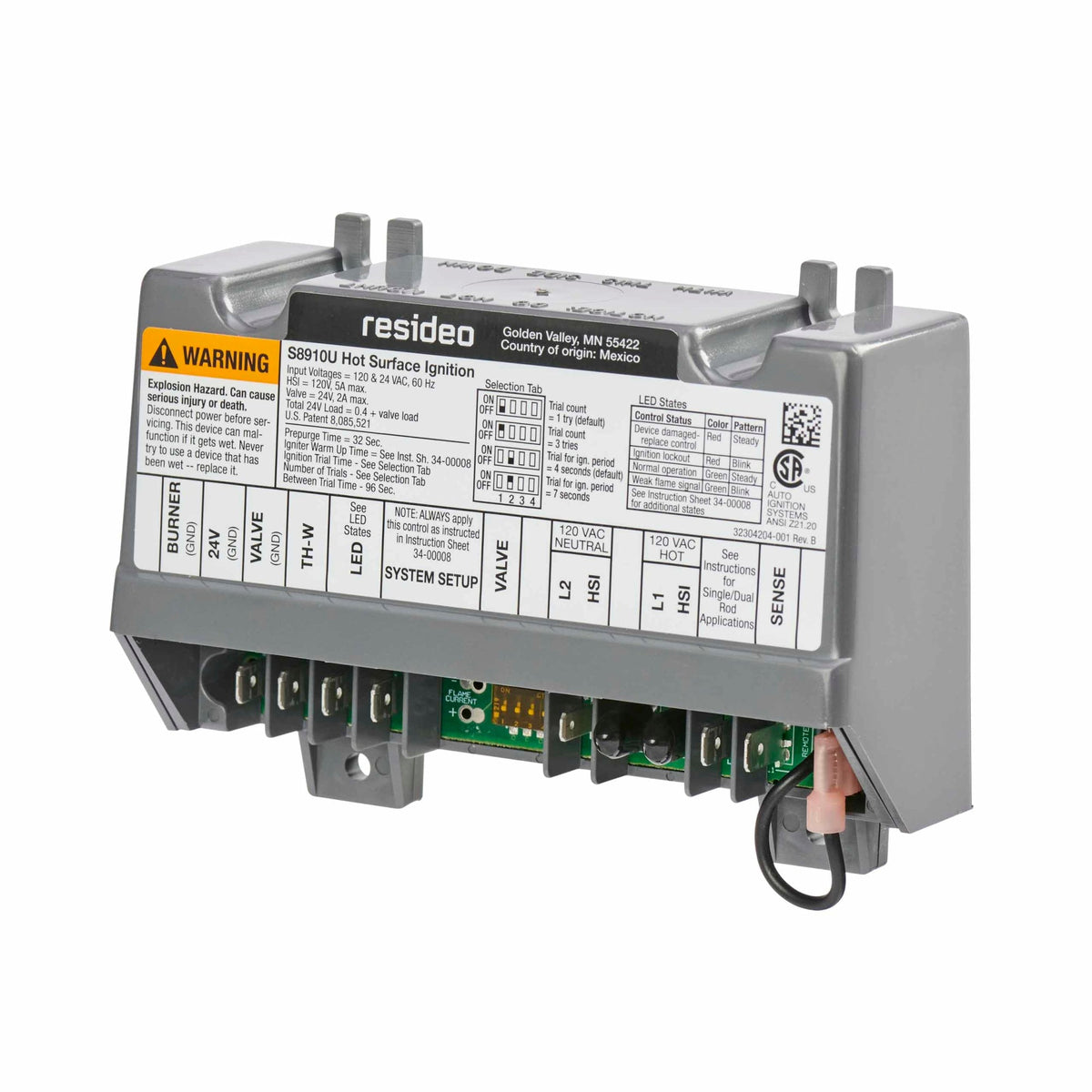

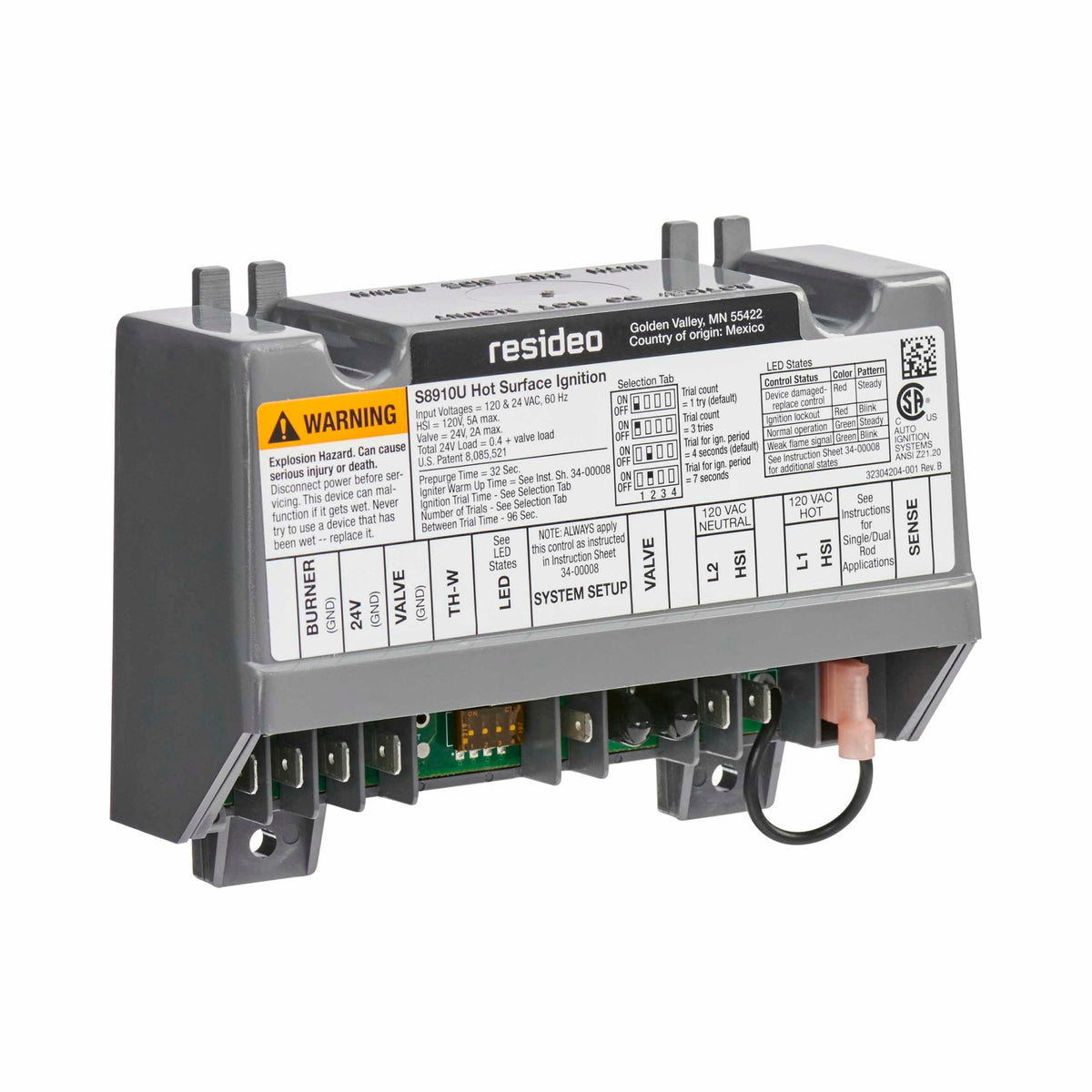

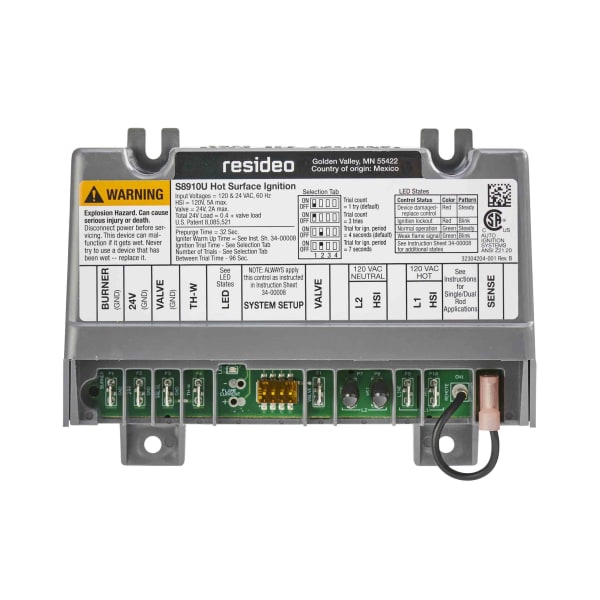

S8910U3000/U Universal Hot Surface Ignition Module
- Part #
- S8910U3000/U
- UPC
- 085267647489
$220.34
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
S8910U3000/U — Universal Hot Surface Ignition Module.
Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.
Specifications
| Part Number | S8910U3000/U |
|---|---|
| Type | Hot surface ignition module |
| Universal | Yes |
| Application | Hot Surface Pilot Ignition |
| Approvals and Standards | CSA Design Certified |
| Type of Fuel | Natural Gas, LPG |
| Ignition Type | Direct Hot Surface |
| Ignition Source | Line Voltage (120 VAC) Hot Surface Element (Norton Model 201 or 270) |
| Ignition Between Trail Time | (2) 96 sec- 3 trial mode only |
| Ignition Sequence | The number of trials for ignition and trial time is determined by the dip switch selection. |
| Ignition Trial Time | 4 sec, 7 sec |
| Ignition Warm-Up Time | 34 sec |
| Ignition Trials To Lockout | 1 or 3 |
| Interpurge | 64 seconds |
| Pre-Purge | 32 sec |
| Lockout Timing | 4 sec, 7 sec |
| Flame Failure Response Time | 1.5 sec |
| Flame Sense | Two Rod, Single Rod |
| Typical Ignition Hardware | Norton 201, Norton 271, Q354 |
| Igniter-Sensor Rod | Dual, Single |
| Typical Gas Control | VR8205, VR8305 |
| Product Depth | 1.94 in, 49 mm |
| Maximum Valve Load | 2A |
| Frequency | 50 Hz, 60 Hz |
| Operating Voltage | 24 Vac |
| Includes | White Rodgers adapter, Robertshaw ground lead, Four 1/4 in. female.032 quick connects, One 3/16 in. female.032 quick connect, Nine wire labels |
| Product Height | 5.25 in, 133 mm |
| Product Width | 4.06 in, 103 mm |
| Ambient Operating Temperature (Max) | 165 °F, 74 °C |
| Ambient Operating Temperature (Min) | 40 °F, -40 °C |
