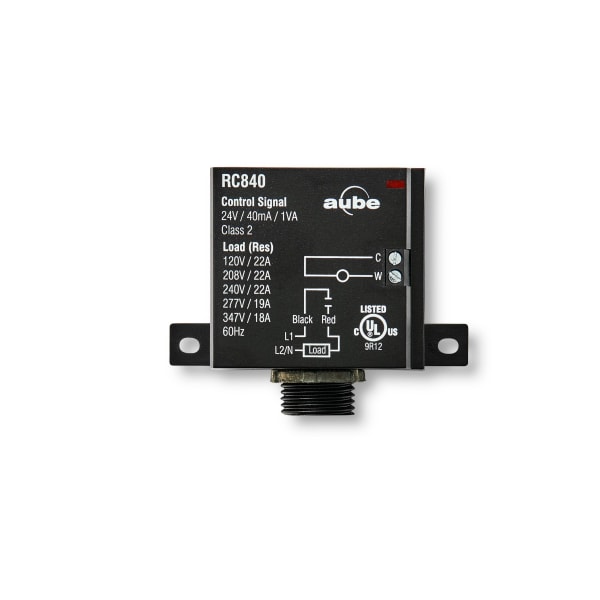

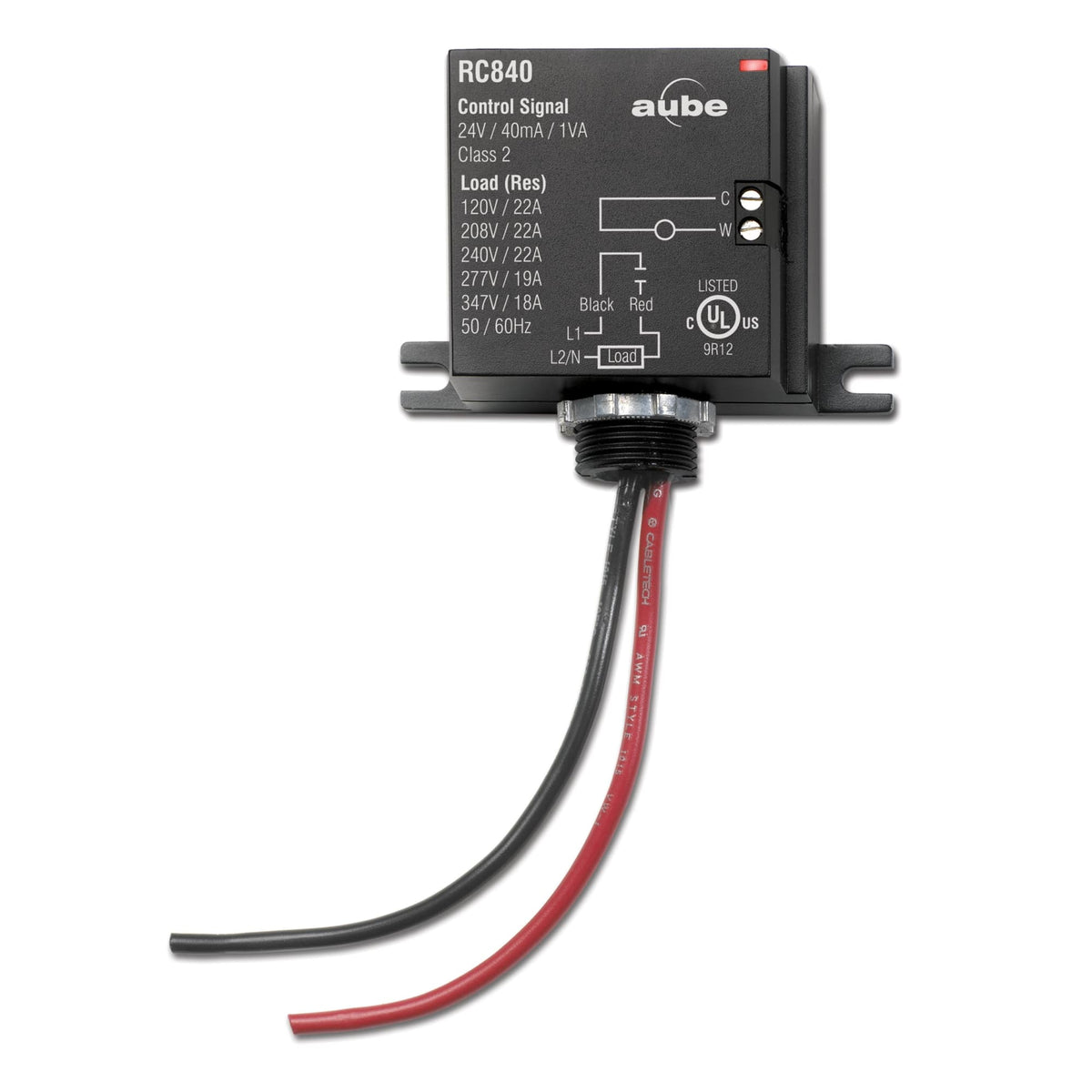

RC840/U Electromechanical Relay Without Transformer
- Part #
- RC840/U
- UPC
- 775264094613
- Type
- Relays
$68.51
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
RC840/U — Electromechanical Relay Without Transformer.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | RC840/U |
|---|---|
| Type | General purpose relay |
| Internal transformer | No |
| UPC | 775264094613 |
| Application | Control a line voltage resistive load from a low voltage thermostat |
| Approvals and Standards | UL Approved, CSA Approved |
| Compatible With | 2 and 3 wire thermostats |
| Switch Action | On/Off Switching |
| Manufacturer Warranty | 3 Years |
| Product Height | 2.87 in, 68 mm |
| Product Length | 1.87 in, 36 mm |
| Product Width | 3.34 in, 85 mm |
