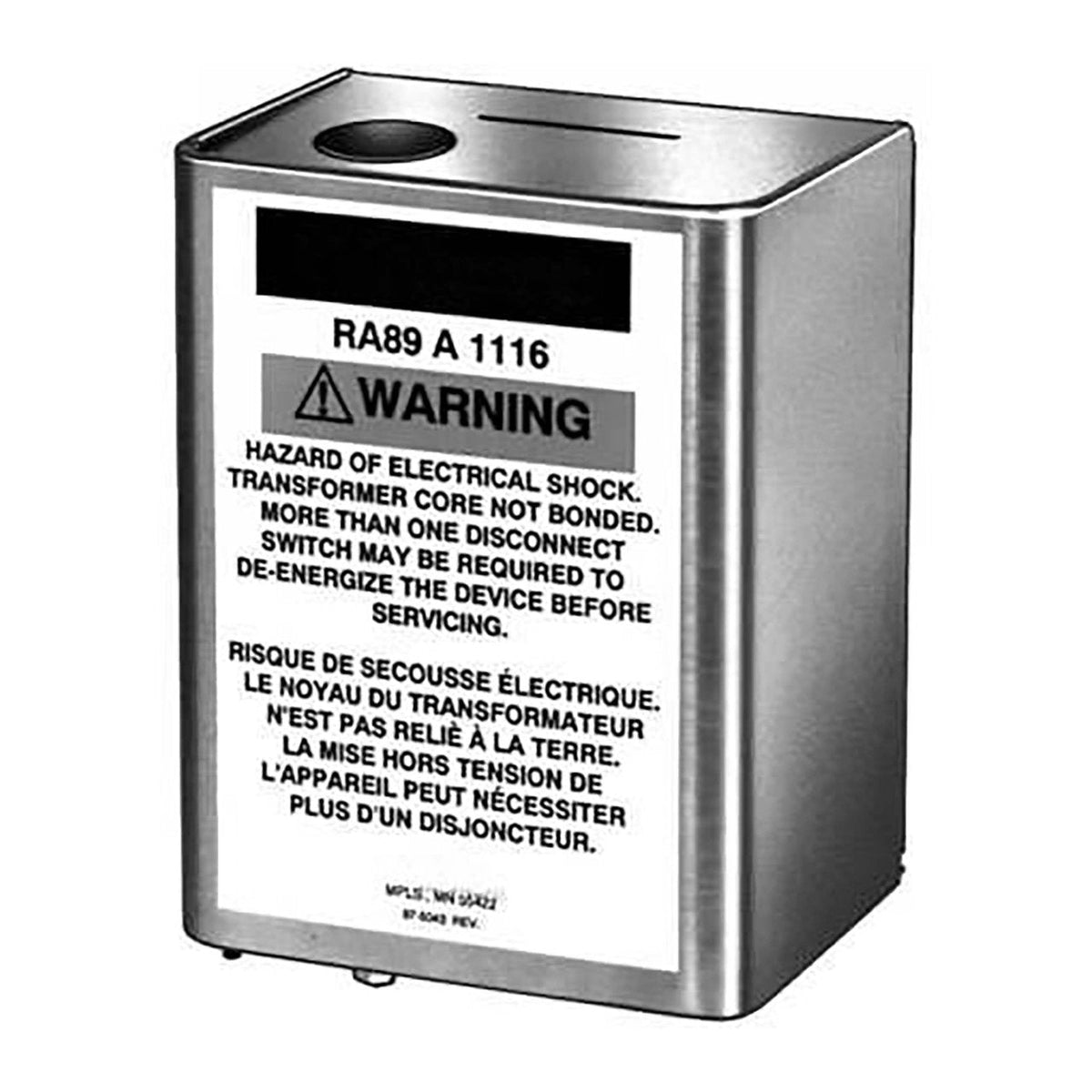

RA89A1116/U Switching Relay, 120 VAC 50/60 Hz, SPST Line Voltage
- Part #
- RA89A1116/U
- UPC
- 085267082297
- Type
- Relays
$180.36
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
RA89A1116/U — Switching Relay, 120 VAC 50/60 Hz, SPST Line Voltage.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | RA89A1116/U |
|---|---|
| Application | SPST switching of a line voltage device from a low voltage controller |
| Approvals and Standards | UL Listed: File No. E4436, Guide No. XAPX, CSA Certified: File No. LR1620 |
| Includes | Integral transformer, Enclosure |
| Coil Connection Type | Control Circuit 2 Wire |
| Number of Poles | 1 Pole |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Switch Action | SPST |
| Manufacturer Warranty | 1 Year |
| Ambient Operating Temperature (Max) | 115 °F for 60 Hz, 105 °F for 50 Hz, 46 °C for 60 Hz, 41 °C for 50 Hz |
| Product Height | 5.25 in, 133 mm |
| Product Length | 2.31 in, 59 mm |
| Product Width | 4.25 in, 108 mm |
| UPC | 085267082297 |
| Country of Origin | MX |
| Product Features | Integral transformer provides low voltage power for control circuit |
