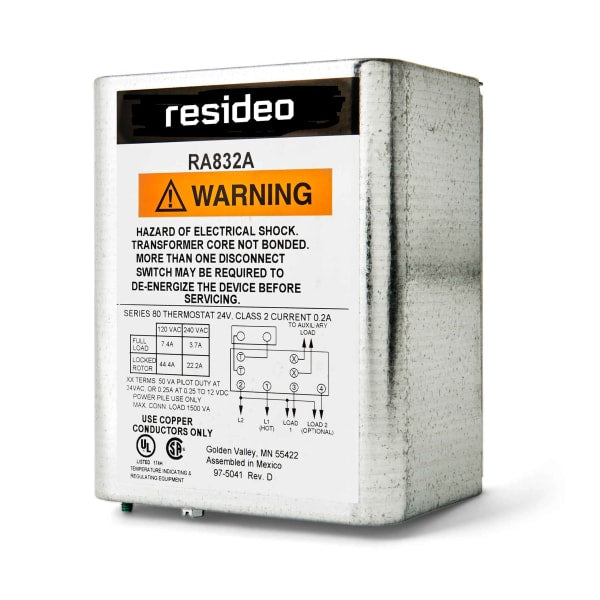

RA832A1066/U Internal Transformer Switching Relay with Low Voltage Contacts
- Part #
- RA832A1066/U
- UPC
- 085267990066
- Type
- Relays
$131.84
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
RA832A1066/U — Internal Transformer Switching Relay with Low Voltage Contacts.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | RA832A1066/U |
|---|---|
| Type | Switching relay |
| Internal transformer | Yes |
| Shipping Weight | 2.4 lb |
| Application | DPST switching of a line voltage device from a low voltage controller |
| Approvals and Standards | UL Listed: File No. E4436, Guide No. XAPX, CSA Certified: File No. LR1620 |
| Includes | Integral transformer, Enclosure |
| Coil Rating Voltage | 24 V ac |
| Coil Connection Type | Control Circuit 2 Wire |
| Number of Poles | 2 Poles |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Switch Action | DPST |
| Manufacturer Warranty | 1 Year |
| Ambient Operating Temperature (Max) | 115 °F for 60 Hz, 105 °F for 50 Hz, 46 °C for 60 Hz, 41 °C for 50 Hz |
| Product Height | 5.25 in, 133 mm |
| Product Length | 2.31 in, 59 mm |
| Product Width | 4.25 in, 108 mm |
