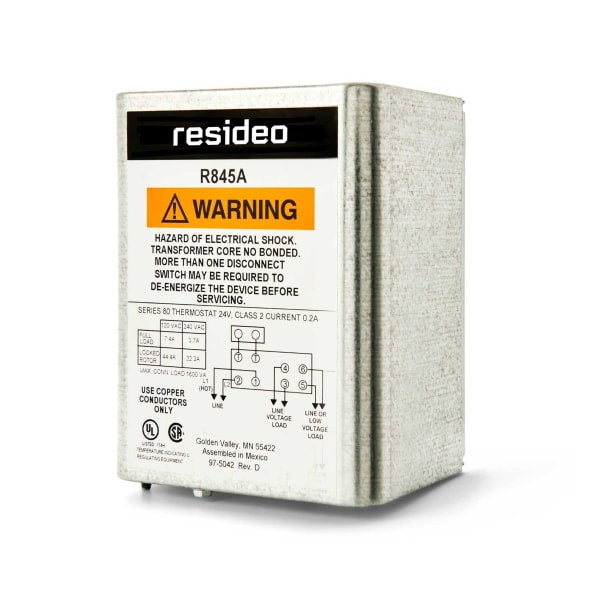

R845A1030/U Switching Relay with Internal Transformer
- Part #
- R845A1030/U
- UPC
- 085267990073
- Type
- Relays
$130.00
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
R845A1030/U — Switching Relay with Internal Transformer.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | R845A1030/U |
|---|---|
| Type | Switching relay |
| Internal transformer | Yes |
| UPC | 085267990073 |
| Shipping Weight | 1.5 lb |
| Application | DPST switching relay for 24 volt 2 wire thermostat control of line voltage devices |
| Product Features | Integral transformer provides low voltage power for control circuit, Provide intermediate switching of a line voltage device from a low voltage controller |
| Approvals and Standards | UL Listed: File No. E4436, Guide No. XAPX, CSA Certified: File No. LR1620 |
| Coil Rating Voltage | 24 V ac |
| Coil Connection Type | Control Circuit 2 Wire |
| Number of Poles | 2 Poles |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Switch Action | DPST |
| Compatible Thermostat | Low voltage (Class 2) 2-wire Thermostat |
| Manufacturer Warranty | 1 Year |
| Product Height | 5.25 in, 133 mm |
| Product Length | 2.31 in, 59 mm |
| Product Width | 4.25 in, 108 mm |
