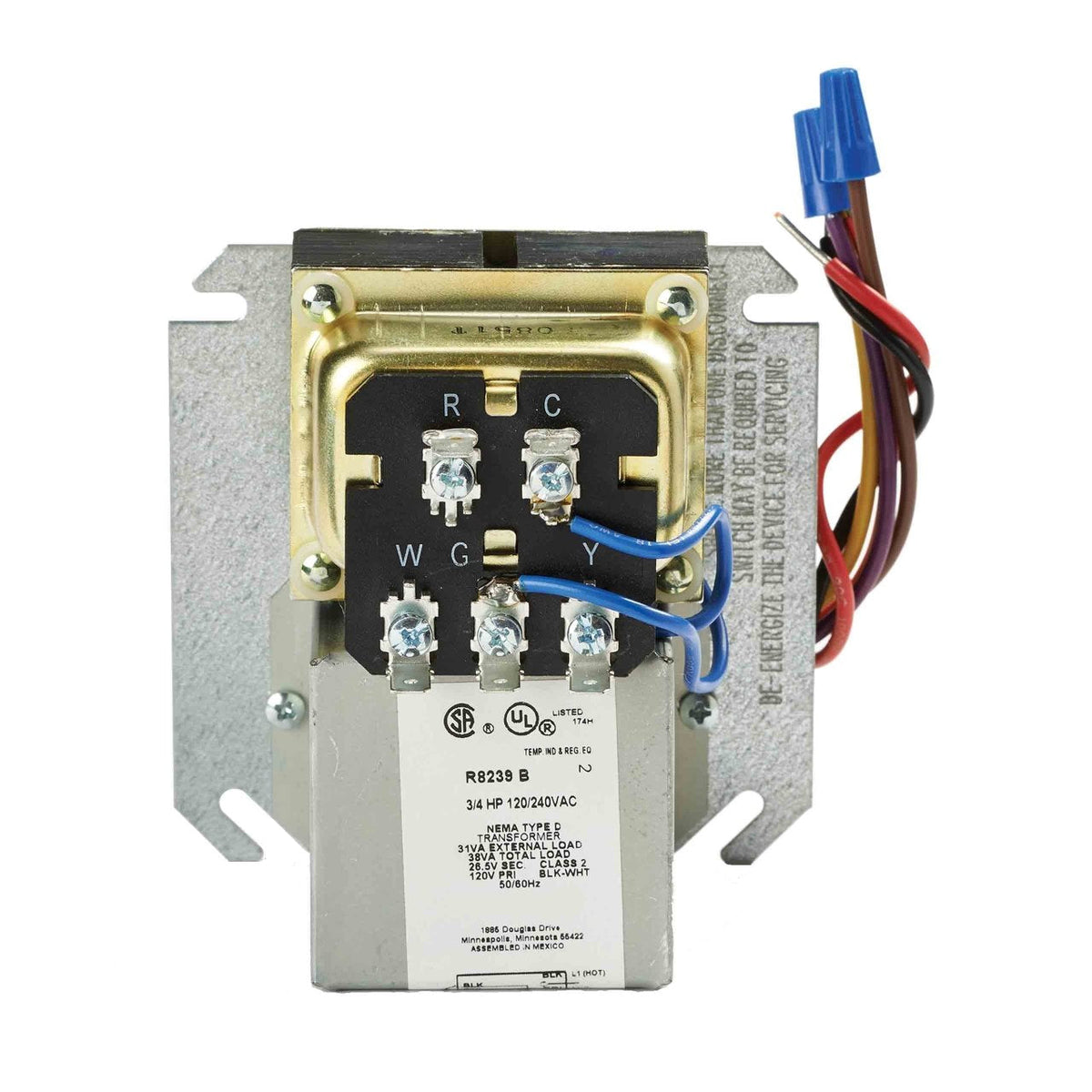

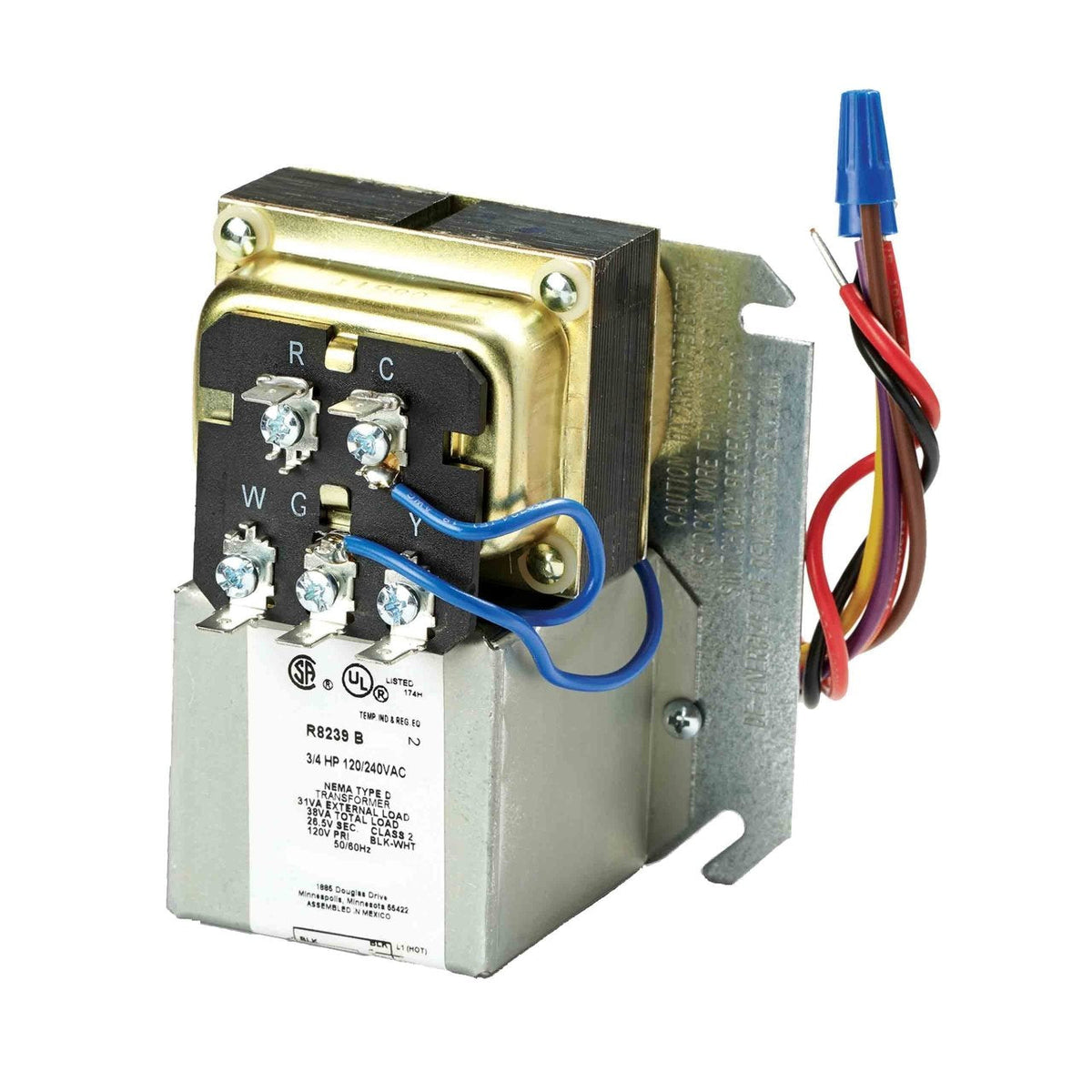

R8239A1003/U Fan Center, 120 V Primary, Metal Cover
- Part #
- R8239A1003/U
- UPC
- 085267080255
- Type
- Relays
$143.71
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
R8239A1003/U — Fan Center, 120 V Primary, Metal Cover.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | R8239A1003/U |
|---|---|
| Application | Low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling or heating-cooling systems |
| Approvals and Standards | NEMA Standard DC20-1992, UL Listed, CSA Certified |
| Compatible With | Heating only, Cooling only, Heating and Cooling |
| Includes | R8222B, Relay enclosure |
| Coil Rating Voltage | Inrush 20 VA maximum, Sealed 9 VA |
| Number of Poles | 1 Pole |
| Operating Frequency | 50 Hz, 60 Hz |
| Operating Voltage | 120 Vac |
| Power Supply | 40 VA, 26.5 V Secondary |
| Power Supply Frequency | 50 Hz, 60 Hz |
| In-Rush Voltage (Max) | 20 VA |
| In-Rush Voltage (Nominal) | 9 VA |
| Switch Action | SPDT |
| Manufacturer Warranty | 1 Year |
| Mounting Type | Exposed Junction Box |
| Product Height | 4.5 in, 144 mm |
| Product Length | 4.19 in, 106 mm |
| Product Weight | 2.7 lb |
| Product Width | 3.1 in, 79 mm |
| UPC | 085267080255 |
| Country of Origin | MX |
Ratings & details
- Provides overload protection for transformer
- Mounts on standard 4 x 4 junction box
- Includes relay enclosure
