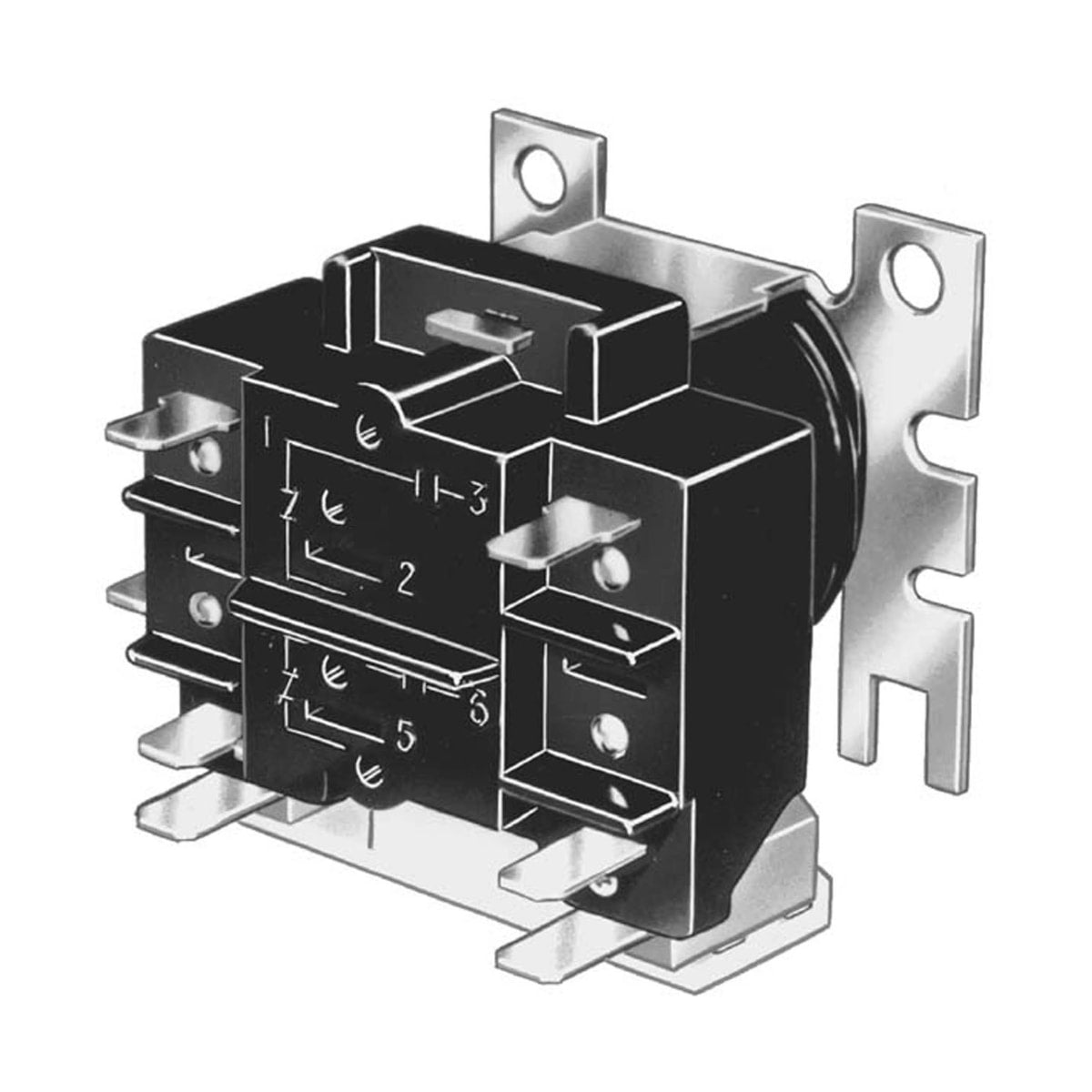

R8229A1005/U DPST Relay, Up to Two Electric Heat Elements Plus Fan Motor, 277 VAC
- Part #
- R8229A1005/U
- UPC
- 085267080019
- Type
- Relays
$101.46
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
R8229A1005/U — DPST Relay, Up to Two Electric Heat Elements Plus Fan Motor, 277 VAC.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | R8229A1005/U |
|---|---|
| Contacts | DPST |
| Load | Up to two electric heat elements plus a 6.4 AFL fan motor |
| Voltage | 277 VAC |
| UPC | 085267080019 |
| Country of Origin | MX |
| Application | DPST switching Electric Heater Relay |
| Approvals and Standards | UL Component Recognized, CSA Recognized |
| Coil Rating Voltage | 24 V ac |
| Coil Connection Type | Combination Head Screws |
| Number of Poles | 2 Poles |
| Operating Frequency | 60 Hz |
| Power Supply Frequency | 60 Hz |
| Switch Action | DPST |
| Manufacturer Warranty | 1 Year |
| Product Height | 2.19 in, 55 mm |
| Product Length | 2.25 in, 57 mm |
| Product Width | 2.09 in, 53 mm |
