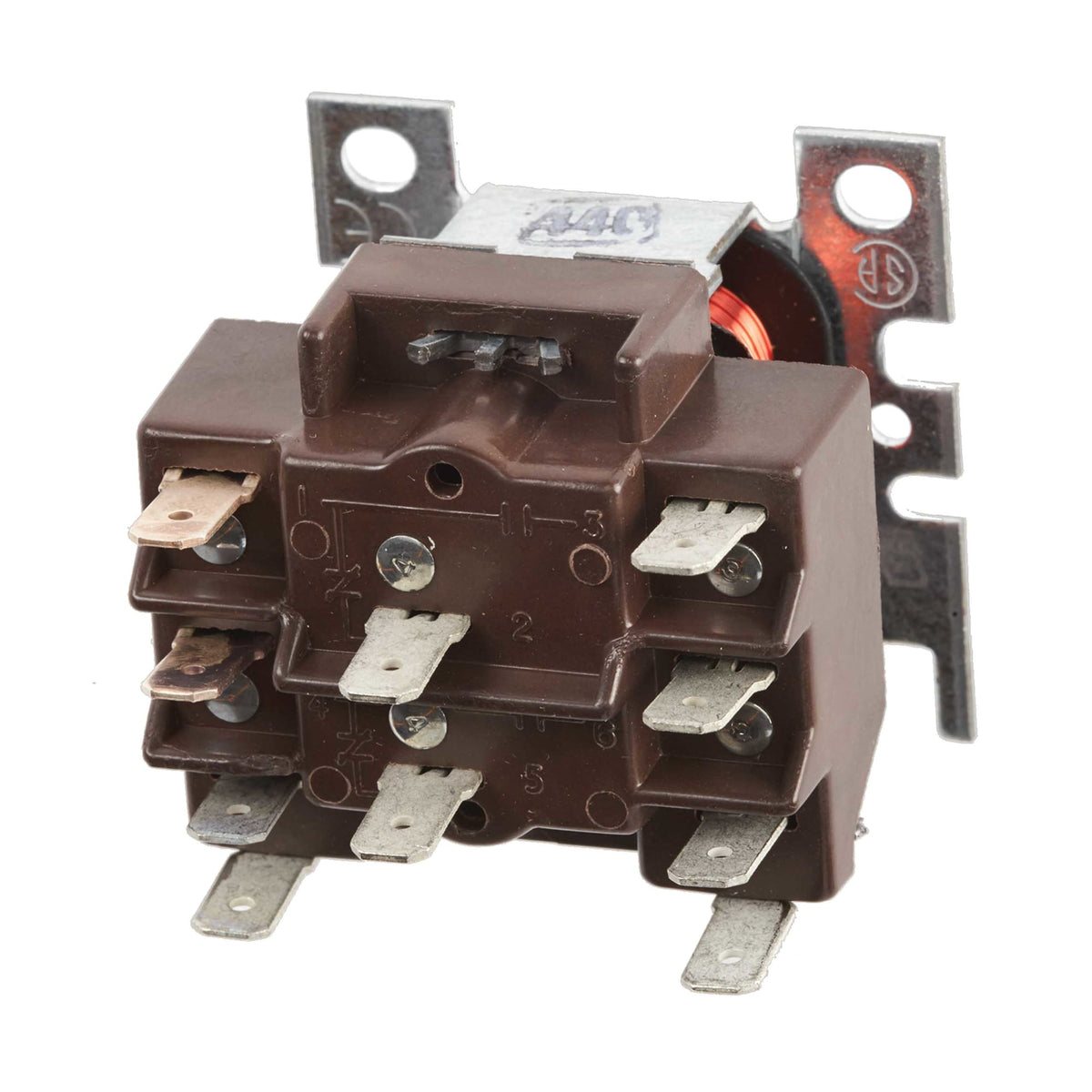

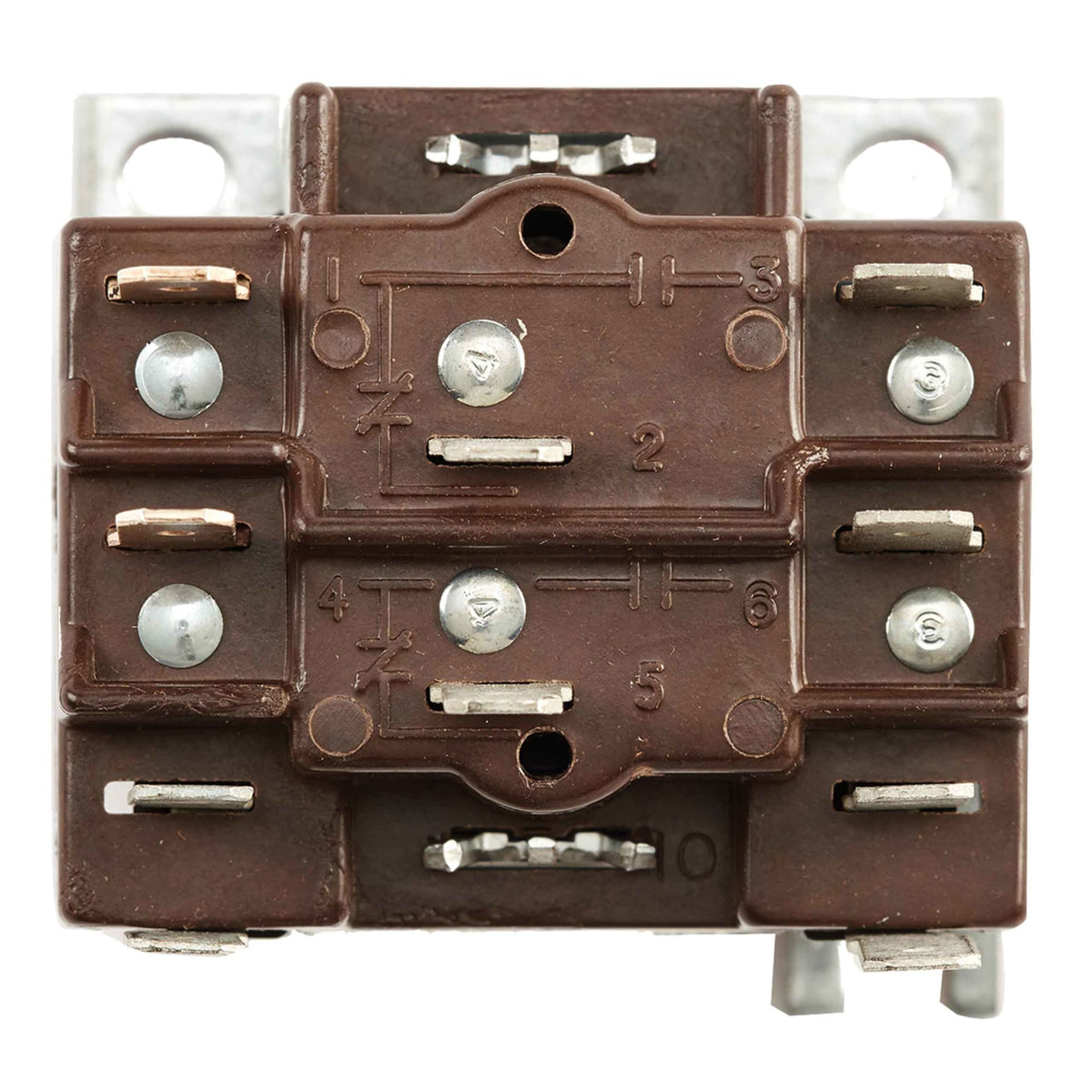

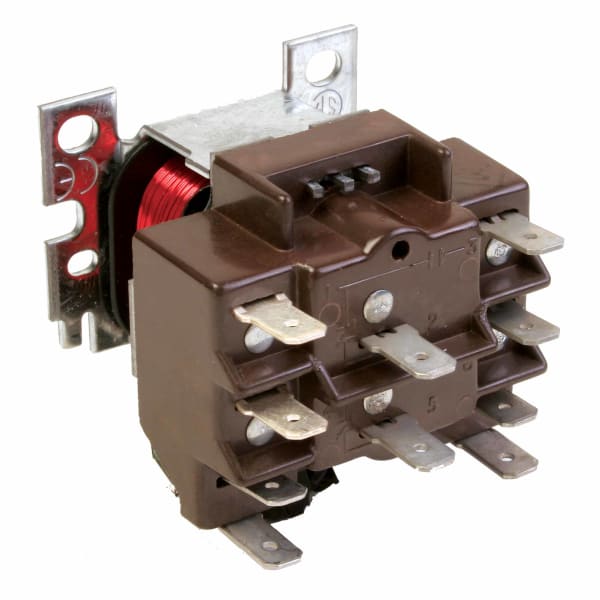

R8222B1067/U General Purpose Relay with SPDT Switching
- Part #
- R8222B1067/U
- UPC
- 085267000406
- Type
- Relays
$26.89
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
R8222B1067/U — General Purpose Relay with SPDT Switching.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | R8222B1067/U |
|---|---|
| Type | General purpose relay |
| Switching | SPDT |
| UPC | 085267000406 |
| Application | Powerpile (millivoltage) applications, Pilot duty applications, Power pole applications |
| Approvals and Standards | UL Listed: File No. E59779, Guide No. NLDX2, CSA Certified: File No. LR35066, Guide No. 184 |
| Compatible With | Refrigeration, Air Conditioning |
| Coil Rating Voltage | 24 V ac |
| Coil Connection Size | 1/4 in, 6 mm |
| Coil Connection Type | Quick Connect |
| Number of Poles | 1 Pole |
| Operating Frequency | 60 Hz |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Switch Action | SPDT |
| Manufacturer Warranty | 1 Year |
| Ambient Operating Temperature (Min) | 20 °F, -29°C |
| Ambient Operating Temperature (Max) | 155 °F, 68 °C |
| Mounting Type | Screw Mount |
| Product Height | 1.87 in, 48 mm |
| Product Length | 2.37 in, 66 mm |
| Product Width | 2.16 in, 55 mm |
