R8184M1051/U Protectorelay Oil Primary Control, 120 VAC, 45 Sec Safety Switch Timing

R8184M1051/U Protectorelay Oil Primary Control, 120 VAC, 45 Sec Safety Switch Timing

Part #
R8184M1051/U
UPC
085267078733
$264.33

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

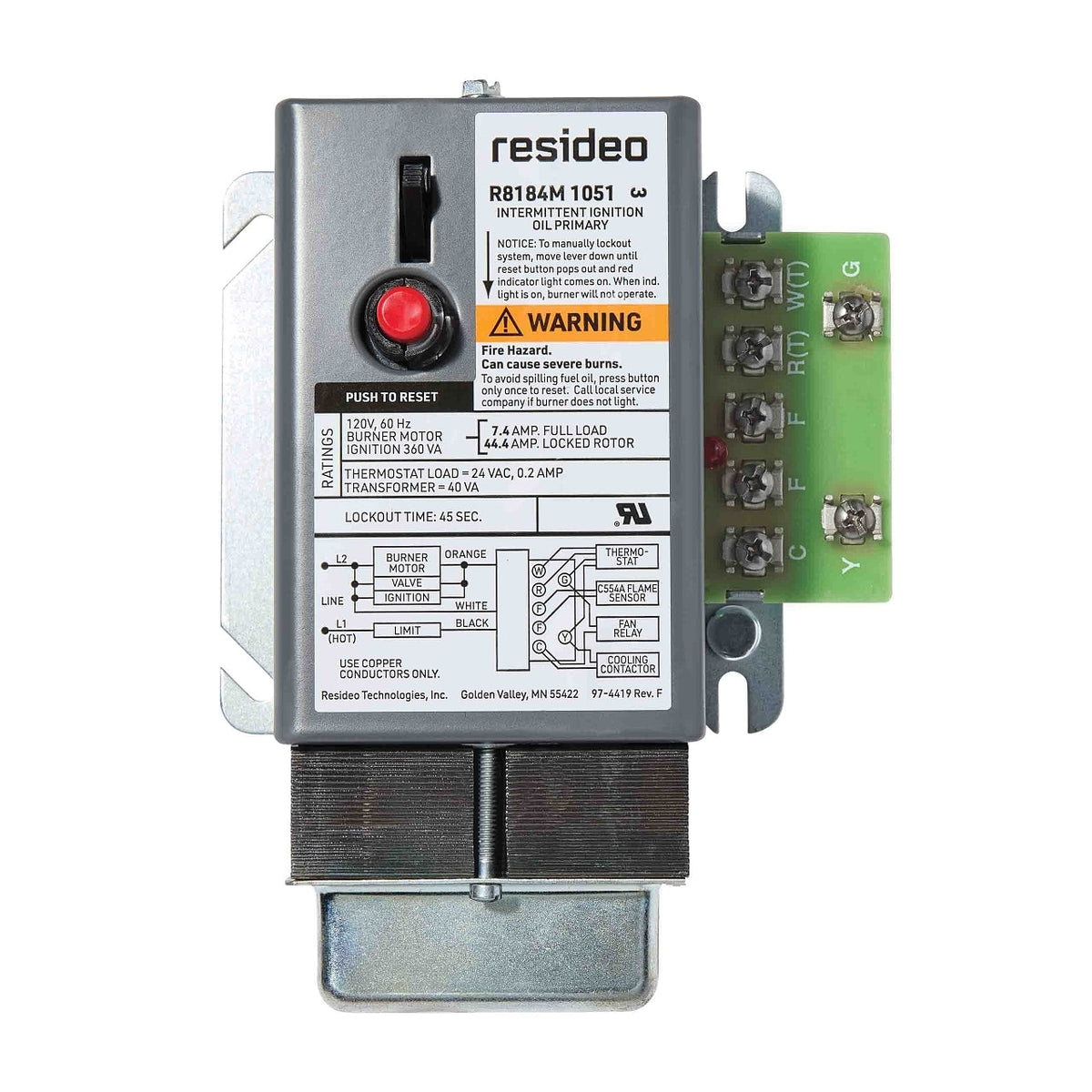

R8184M1051/U — Protectorelay Oil Primary Control, 120 VAC, 45 Sec Safety Switch Timing.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number R8184M1051/U
Application Operates oil burner or oil valve in response to a call for heat from a low voltage thermostat.
Approvals and Standards UL Component Recognized; File no. MP268, guide no. MCCZ2
Compatible With Low voltage control circuit
Ignition Type Intermittent
Valve On Delay Timing 45 sec.
Color Gray
Product Height 4.37 in
Product Length 4.75 in
Product Width 4.13 in
UPC 085267078733

Ratings & details

  • Mounts on standard 4 x 4 in. junction box
