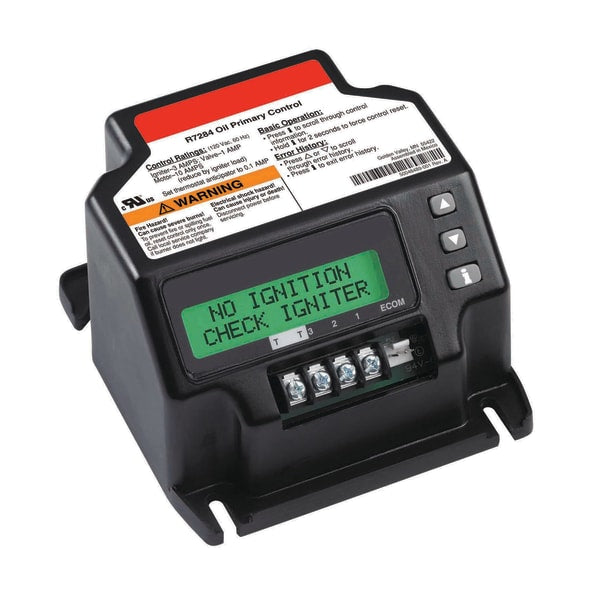

R7284U1004/U Multisystem Electronic Oil Primary

R7284U1004/U Multisystem Electronic Oil Primary

Part #
R7284U1004/U
UPC
085267344708
$110.57

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Black

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

R7284U1004/U — Multisystem Electronic Oil Primary.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number R7284U1004/U
Type Electronic oil primary
Safety timing Settable 15, 30 or 45 seconds
Ignition Interrupted and Intermittent
Contact rating 10A @ 120 Vac
Operating range 40 F to +147 F
Mounting Junction box on main burner
Dimensions 4 5/32 in long x 4 11/32 in wide x 2 1/2 in high
Shipping Weight 0.75 lb
Application Residential oil fired burners used in boilers, Residential oil fired burners used in forced air furnaces, Residential oil fired burners used in Water heaters
Approvals and Standards UL Component Recognized, cUL Component Recognized
Compatible With EnviraCOM
Ignition Type Interrupted, Intermittent
Electrical Ratings at Full Load 10 A @ 120 Vac
Electrical Ratings at Locked Rotor 60 A @ 120 Vac
Valve On Delay Timing 0–30 seconds
Color Black
Product Height 2.5 in, 64 mm
Product Length 4.16 in, 105 mm
Product Width 4.34 in, 110.5 mm
