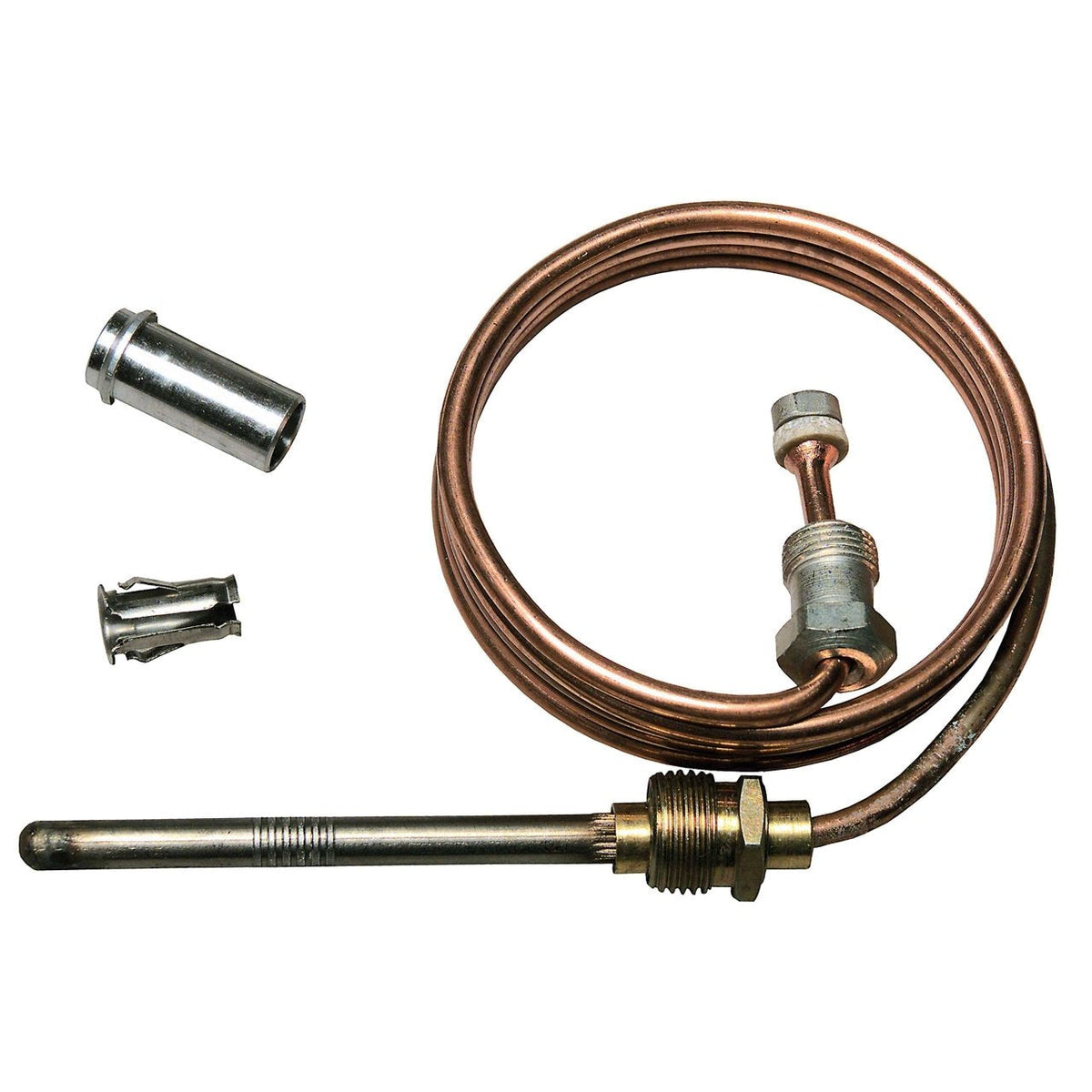

Q390A1103/U Thermocouple, 48 in Lead

Q390A1103/U Thermocouple, 48 in Lead

Part #
Q390A1103/U
UPC
085267069328
$12.94

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Connection
11/32 32 Male Connector Nut

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

Q390A1103/U — Thermocouple, 48 in Lead.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number Q390A1103/U
Application 30 mV Thermocouple
Prop 65 Warning WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
Includes 11/32-32 Male Connector Nut, 48 in Leads, Adapter, Push-in Clip
Lead Wire Length 48 in, 1219 mm
Cold Junction Temperature Rating (Max) 780 °F, 416 °C
Hot Junction Temperature Rating (Max) 1400 °F, 760 °C
Connection Type 11/32 32 Male Connector Nut
Open Circuit Output (Max) 26 mV to 32 mV
Open Circuit Output (Min) 18 mV
Operating Voltage 30 mV
UPC 085267069328
Country of Origin MX
