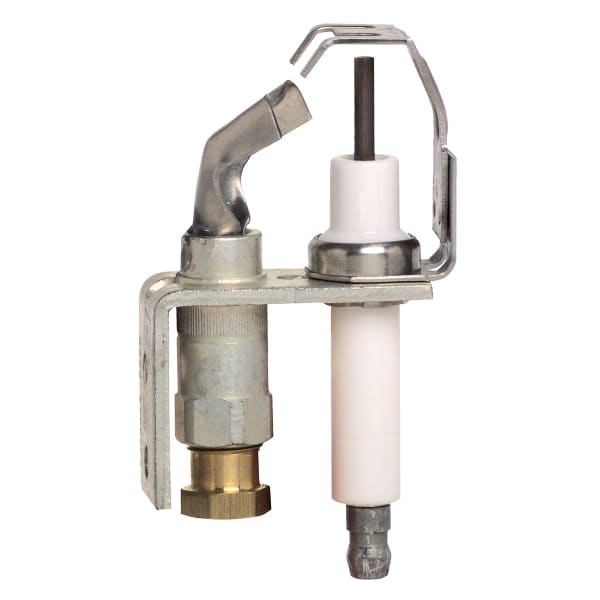

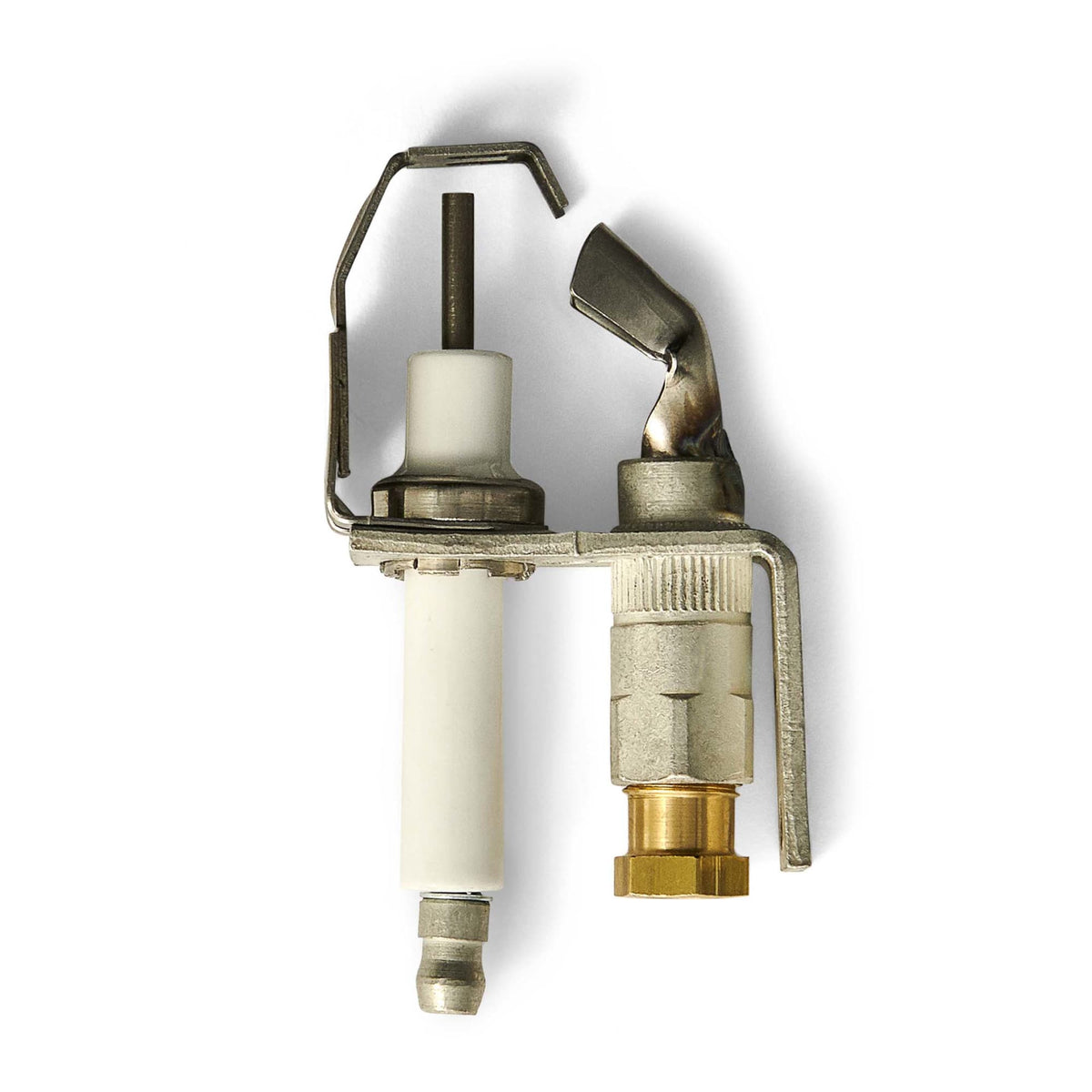

Q345A1313/U Combination Intermittent Pilot Burner and Ignitor with Left Tip
Q345A1313/U Combination Intermittent Pilot Burner and Ignitor with Left Tip

Q345A1313/U Combination Intermittent Pilot Burner and Ignitor with Left Tip

Part #
Q345A1313/U
UPC
085267067867
$59.89

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 4 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

Q345A1313/U — Combination Intermittent Pilot Burner and Ignitor with Left Tip.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number Q345A1313/U
Type Pilot burner
Tip style Left
UPC 085267067867
Application Pilot Burner for Intermittent Pilot Applications
Gas Type Natural Gas
For Use With S86 intermittent pilot control system, S860 intermittent pilot control system, S8610 intermittent pilot control system, S8670 intermittent pilot control system
Type of Fuel Natural Gas
Aeration Non-Primary
Mounting Bracket Style Bracket Style B
Includes Special mounting bracket with screws to convert ""B"" bracket to ""A"" bracket
Compatible With Gas, Intermittent Pilot Burner
Tip Direction Left
Compression Fitting Diameter 1/4 in
Compression Fitting Length 0.78 in
