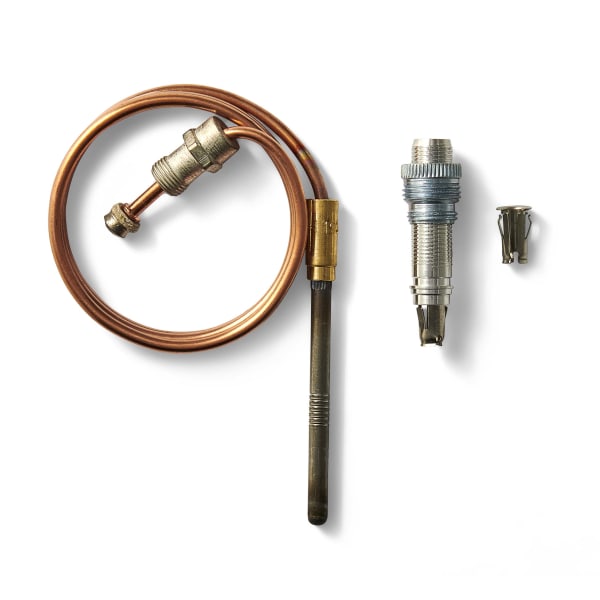

Q340A1066/U 18" Thermocouple

Q340A1066/U 18" Thermocouple

Part #
Q340A1066/U
UPC
085267067409
$12.71

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Connection
11/32 32 Male Connector Nut

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

Q340A1066/U — 18" Thermocouple.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number Q340A1066/U
Type Thermocouple
Output 30 mV
Length 18 in
Application 30 mV Thermocouple for Standing Pilot Applications
Prop 65 Warning WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
Compatible With Gas-fired Systems
Universal Yes
Includes Adapter, Push In Clip
Lead Wire Length 18 in, 457 mm
Cold Junction Temperature Rating (Max) 780 °F, 416 °C
Hot Junction Temperature Rating (Max) 1400 °F, 760 °C
Connection Type 11/32 32 Male Connector Nut
Open Circuit Output (Max) 26 to 32 mV
Open Circuit Output (Min) 18 mV
Operating Voltage 30 mV

Manufacturer documents
