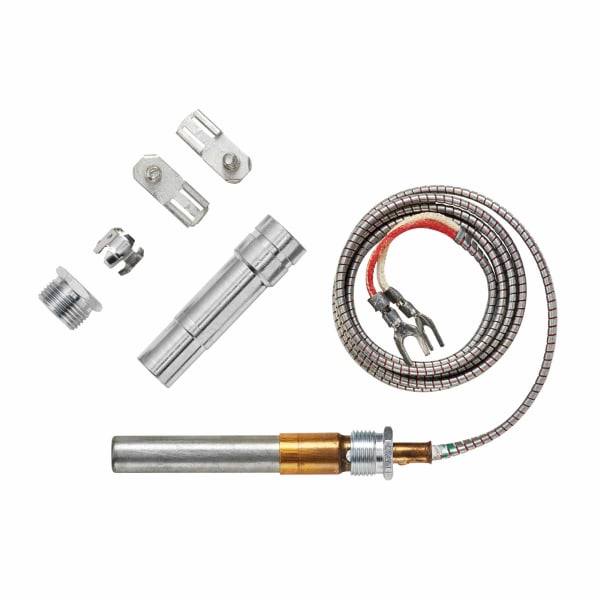

Q313U3000/U Multi-System Thermopile Generator
- Part #
- Q313U3000/U
- UPC
- 085267516815
$80.41
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Connection
- Spade Terminals
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
Q313U3000/U — Multi-System Thermopile Generator.
Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.
Specifications
| Part Number | Q313U3000/U |
|---|---|
| Type | Thermopile |
| Output | 750 mV |
| Universal | Yes |
| UPC | 085267516815 |
| Application | 750 mV Thermopile |
| Prop 65 Warning | WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov |
| Compatible With | Gas-fired Systems |
| For Use With | Q314 Pilot Burners, Q324 Pilot Burners, Q327 Pilot Burners, Q382 Pilot Burners (requires Q313 and Q335) |
| Includes | 1/2 in. attaching nut, PG9 adapter, push-in clip, spade to quick connect adapter, split nut |
| Lead Wire Length | 35 in, 889 mm |
| Cold Junction Temperature Rating (Max) | 780 °F, 416 °C |
| Hot Junction Temperature Rating (Max) | 1400 °F, 760 °C |
| Connection Type | Spade Terminals |
| Operating Voltage | 750 mV |
