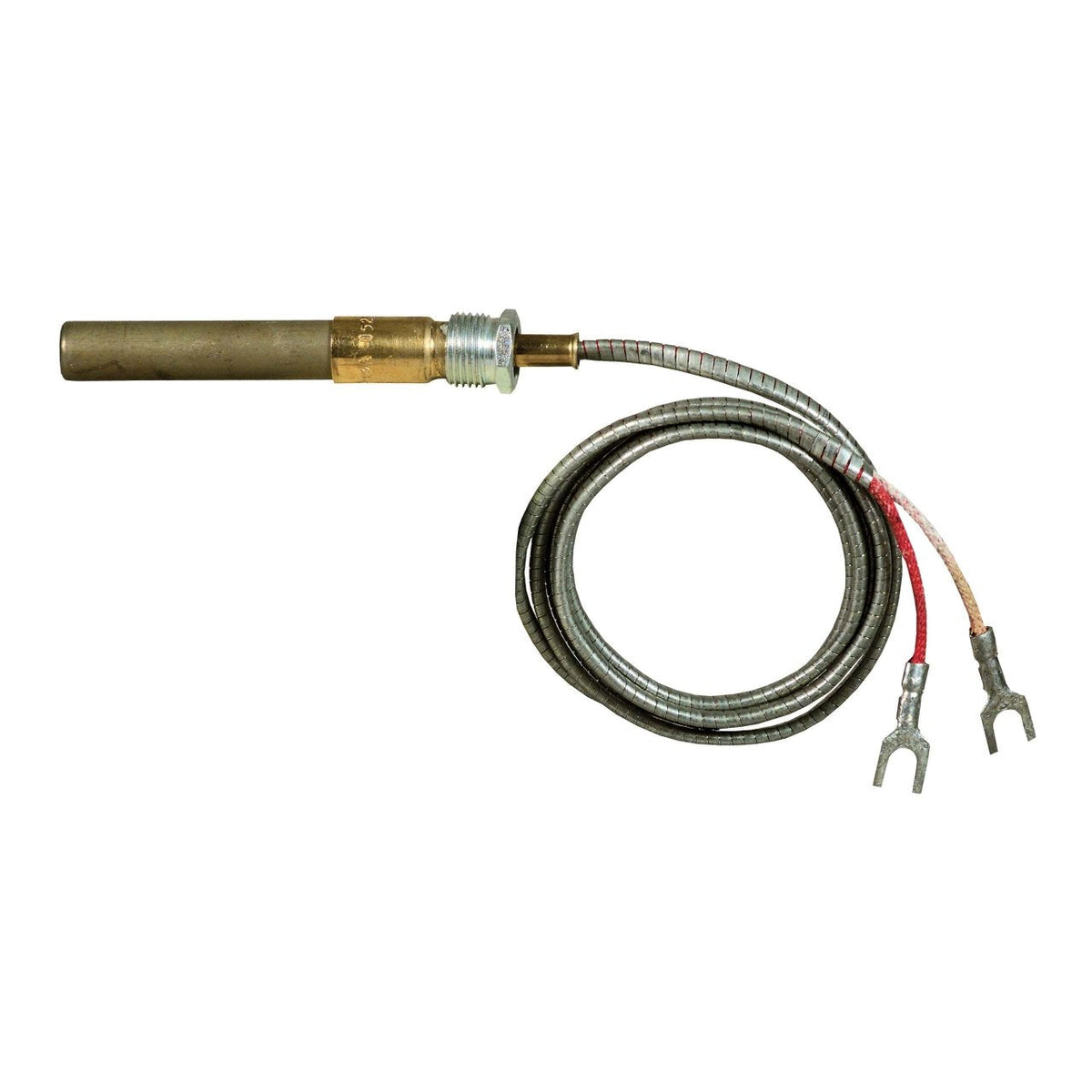

Q313A1105/U Thermopile, 75 in, with Attaching Nut

Q313A1105/U Thermopile, 75 in, with Attaching Nut

Part #
Q313A1105/U
UPC
085267066242
$95.30

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Connection
Spade Terminals

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

Q313A1105/U — Thermopile, 75 in, with Attaching Nut.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number Q313A1105/U
Application 750 mV Thermopile
Prop 65 Warning WARNING/CA WARNING/CALIFORNIA: “Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
Compatible With Gas-fired Systems
For Use With Q314 Pilot Burners, Q324 Pilot Burners, Q327 Pilot Burners, Q382 Pilot Burners (requires Q313 and Q335)
Includes Spade Terminals, 75 in Leads, 1/2 in Thermopile Attaching Nut
Lead Wire Length 75 in, 1905 mm
Product Weight 0.2 lb
Cold Junction Temperature Rating (Max) 780 °F, 416 °C
Hot Junction Temperature Rating (Max) 1400 °F, 760 °C
Connection Type Spade Terminals
Open Circuit Output (Max) 600 mV to 750 mV
Open Circuit Output (Min) 540 mV
Operating Voltage 750 mV
UPC 085267066242
Country of Origin MX
