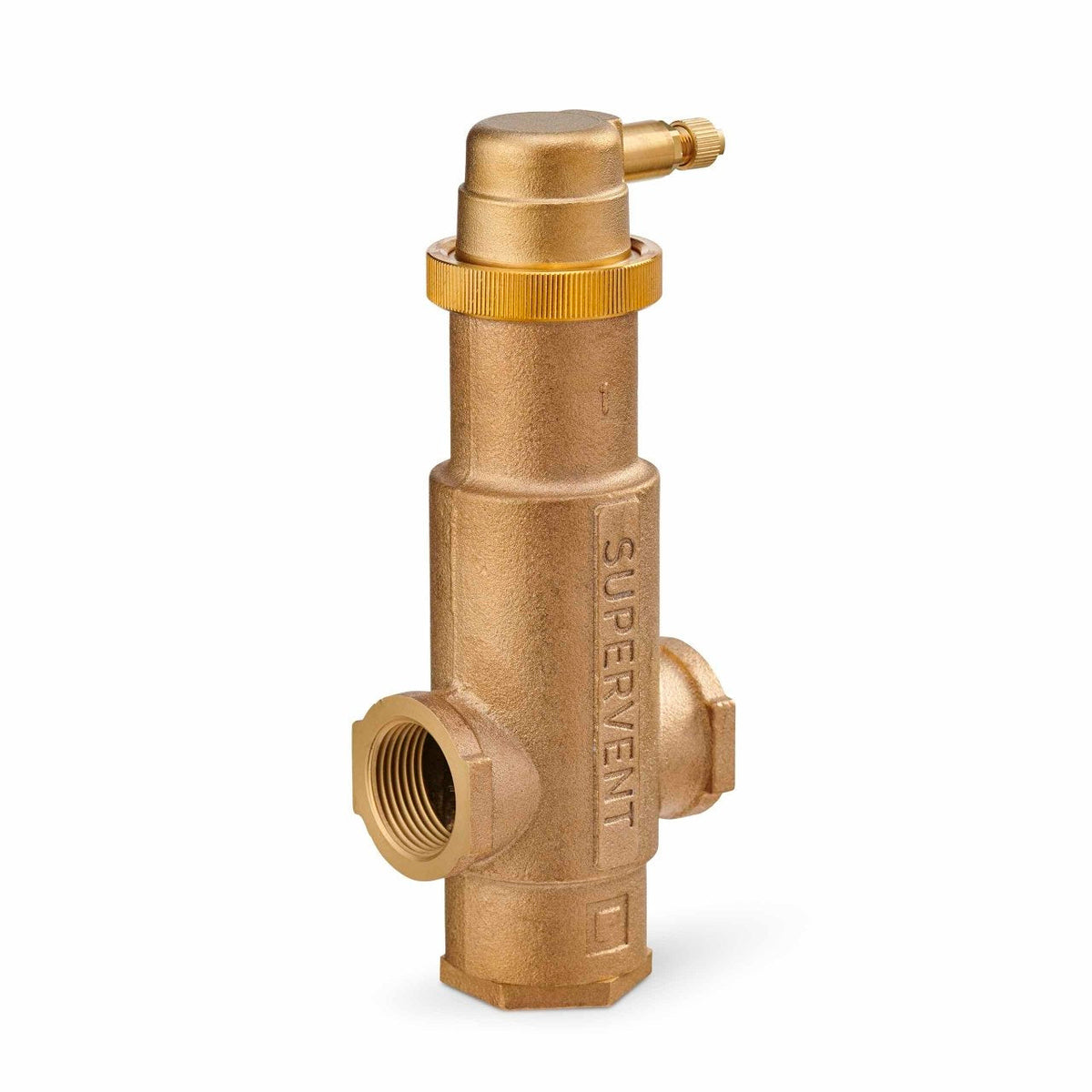

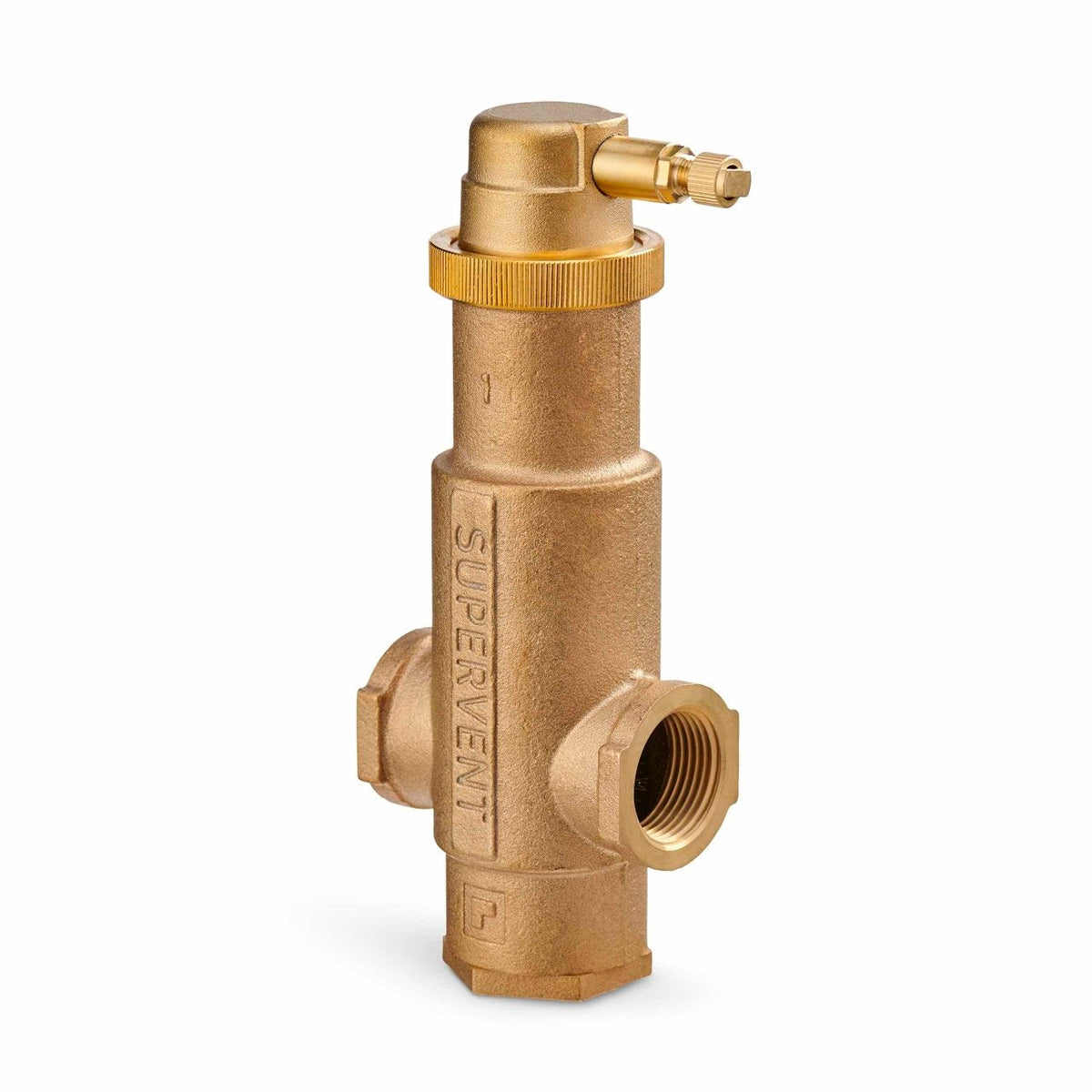

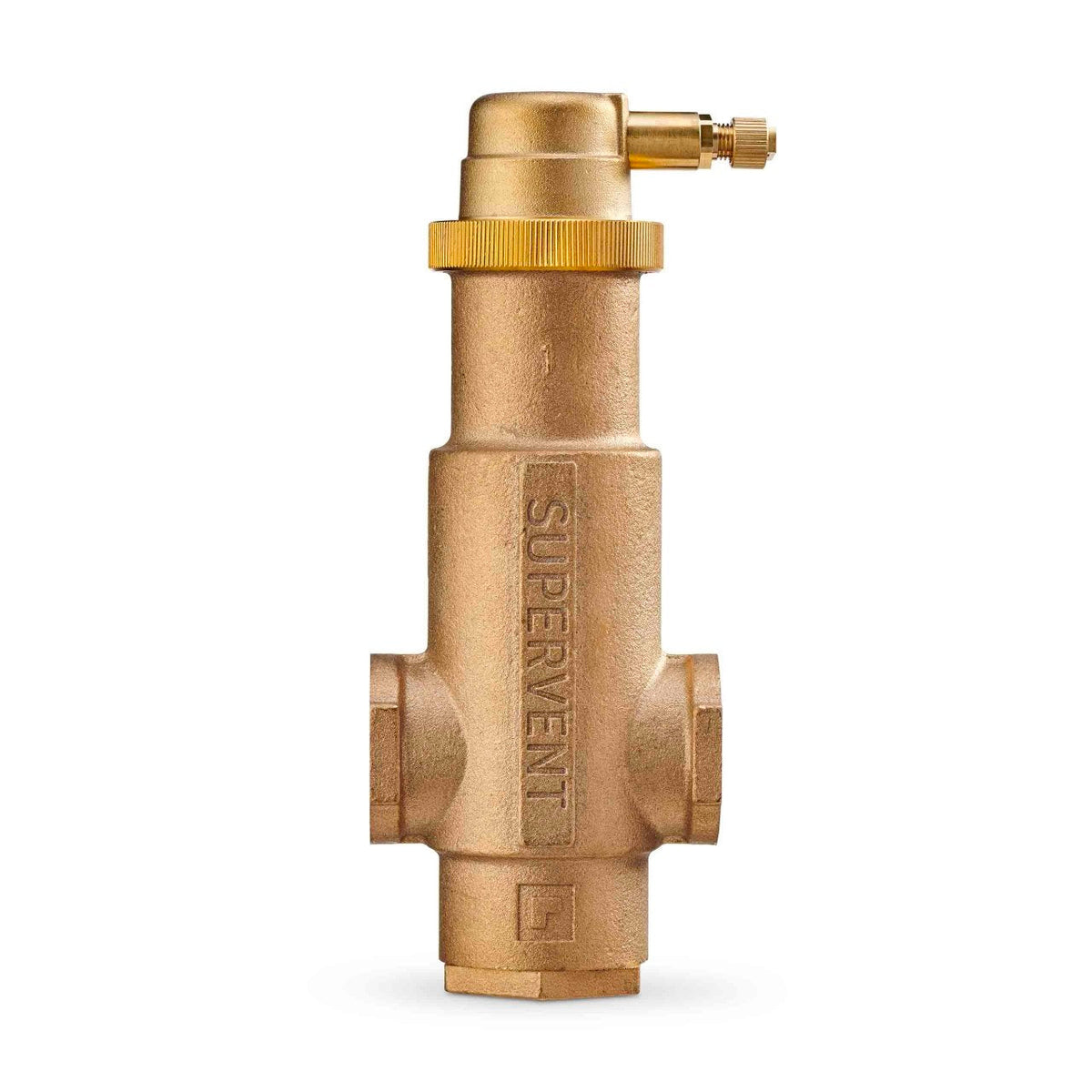

PVU150/U Supervent Universal Air Eliminator for Vertical Risers, 1-1/2 in NPT
PVU150/U Supervent Universal Air Eliminator for Vertical Risers, 1-1/2 in NPT
PVU150/U Supervent Universal Air Eliminator for Vertical Risers, 1-1/2 in NPT

PVU150/U Supervent Universal Air Eliminator for Vertical Risers, 1-1/2 in NPT

Part #
PVU150/U
UPC
085267828390
$290.14

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1 1/2 in
Material
Bronze
Connection
Female NPT
Finish
Brass

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

PVU150/U — Supervent Universal Air Eliminator for Vertical Risers, 1-1/2 in NPT.

Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.

Specifications

Part Number PVU150/U
Application Residential or Commercial closed loop hydronic heating or chilled water systems
Controlled Media Non Potable Water
Flow Coefficient 36 Cv
Manufacturer Warranty 1 Year
Color Brass
Compatible With Hydronic Heating and Cooling Systems
For Use With PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
Bi-directional Flow Yes
Bottom Connection Yes
Connection Size Bottom Inlet 1-1/2 in, Bottom Inlet 38.1 mm
Connection Type Female NPT
Pipe Size 1 1/2 in
DN Size DN40
Operating Pressure (Max) 125 psi
Product Diameter 3.09 in maximum
Product Height 10 in, 254 mm
Product Weight 5.2 lb, 2.36 kg
Product Width 3.7 in, 94 mm
Seal Material EPDM Rubber
Float Material TPX® Polymethylpentene (PMP)
Body Material Bronze
UPC 085267828390
Country of Origin MX

Ratings & details

  • Brass cap for system shutoff
  • System can be air tested
  • High Temperature Thermoplastic Float

Manufacturer documents
