PV200/U Supervent Air Eliminator, 2 in NPT
PV200/U Supervent Air Eliminator, 2 in NPT
PV200/U Supervent Air Eliminator, 2 in NPT

PV200/U Supervent Air Eliminator, 2 in NPT

Part #
PV200/U
UPC
085267827973
$325.97

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
2 in
Material
Bronze
Connection
Female NPT
Finish
Brass

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

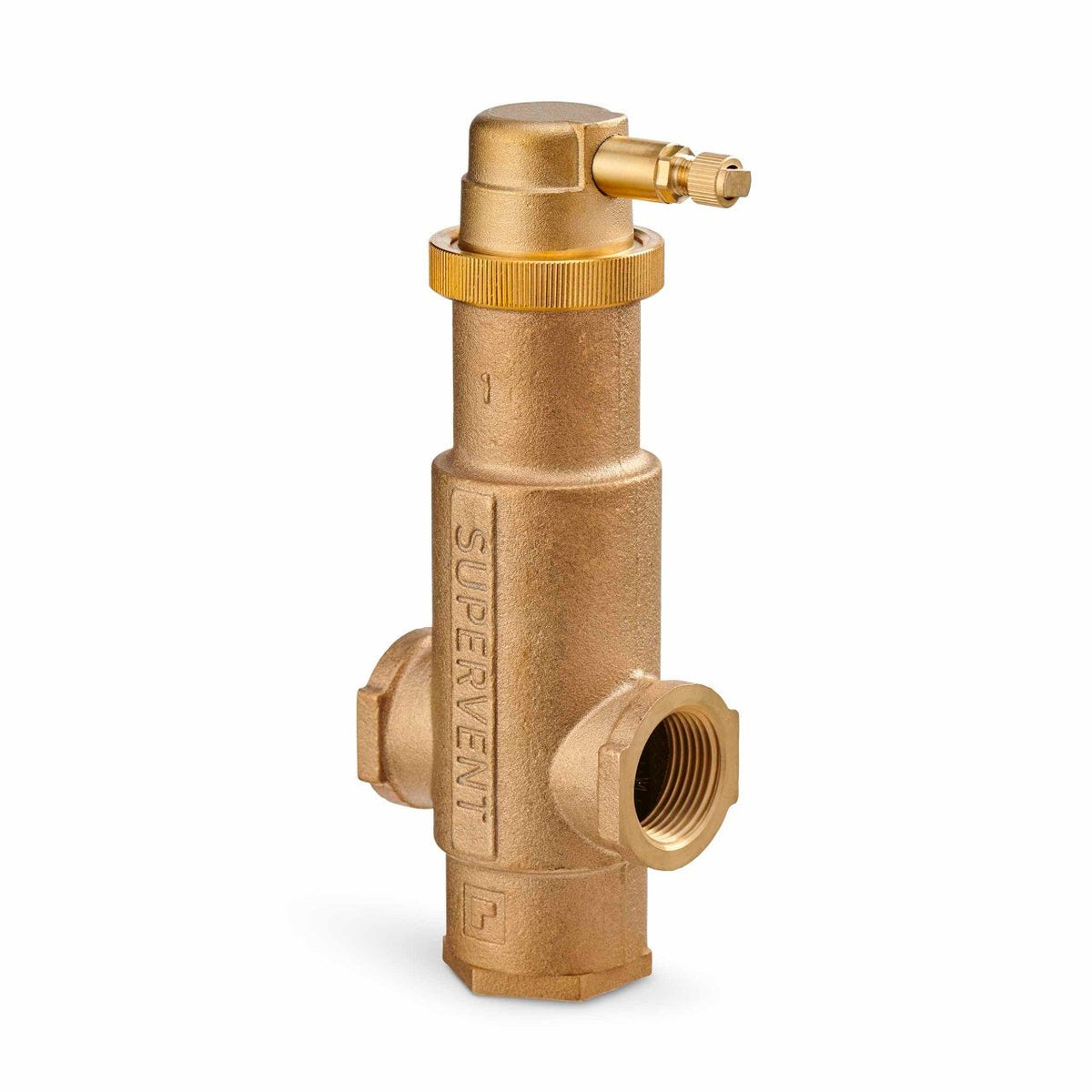

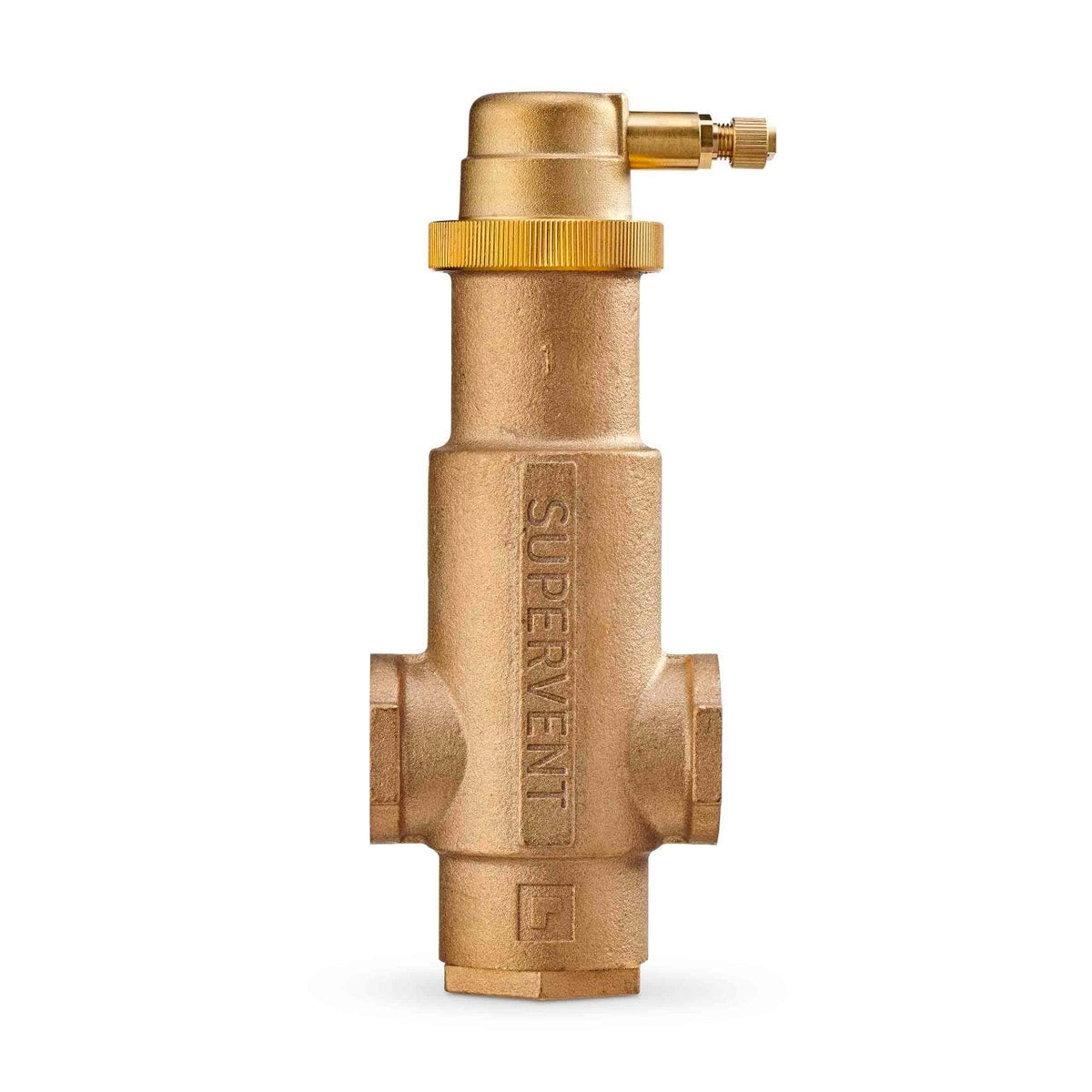

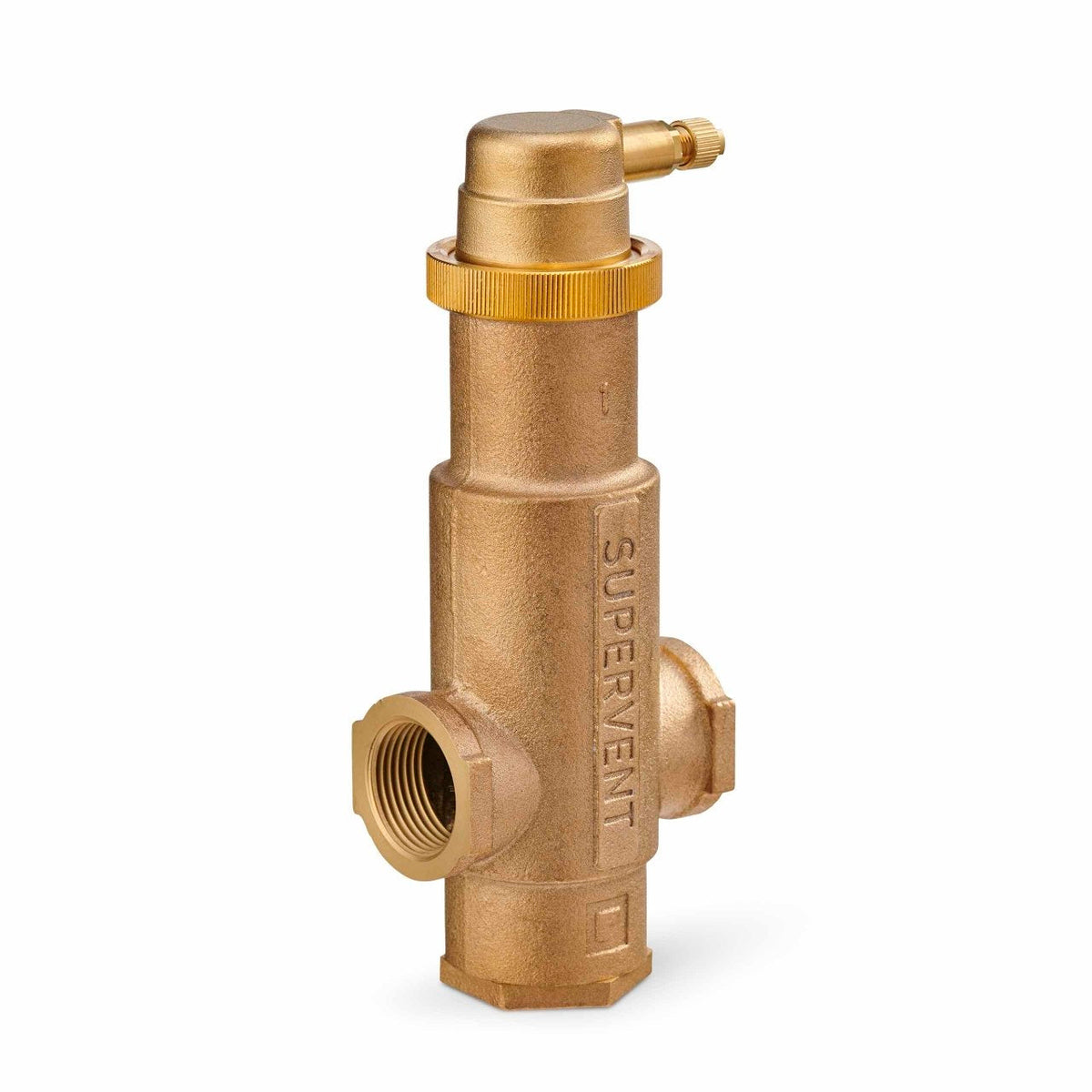

PV200/U — Supervent Air Eliminator, 2 in NPT.

Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.

Specifications

Part Number PV200/U
Application Residential or Commercial closed loop hydronic heating or chilled water systems
Controlled Media Non Potable Water
Flow Coefficient 95 Cv
Manufacturer Warranty 1 Year
Color Brass
Compatible With Hydronic Heating and Cooling Systems
For Use With PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
Bi-directional Flow Yes
Bottom Connection Yes
Connection Size Bottom Inlet 1/2 in, Bottom Inlet 12.7 mm
Connection Type Female NPT
Pipe Size 2 in
DN Size DN50
Operating Pressure (Max) 125 psi
Product Diameter 4 in maximum
Product Height 10.7 in, 272 mm
Product Weight 8 lb, 3.63 kg
Product Width 2.5 in, 63 mm
Seal Material EPDM Rubber
Float Material TPX® Polymethylpentene (PMP)
Body Material Bronze
UPC 085267827973
Country of Origin MX

Ratings & details

  • Brass cap for system shutoff
  • System can be air tested
  • High Temperature Thermoplastic Float
