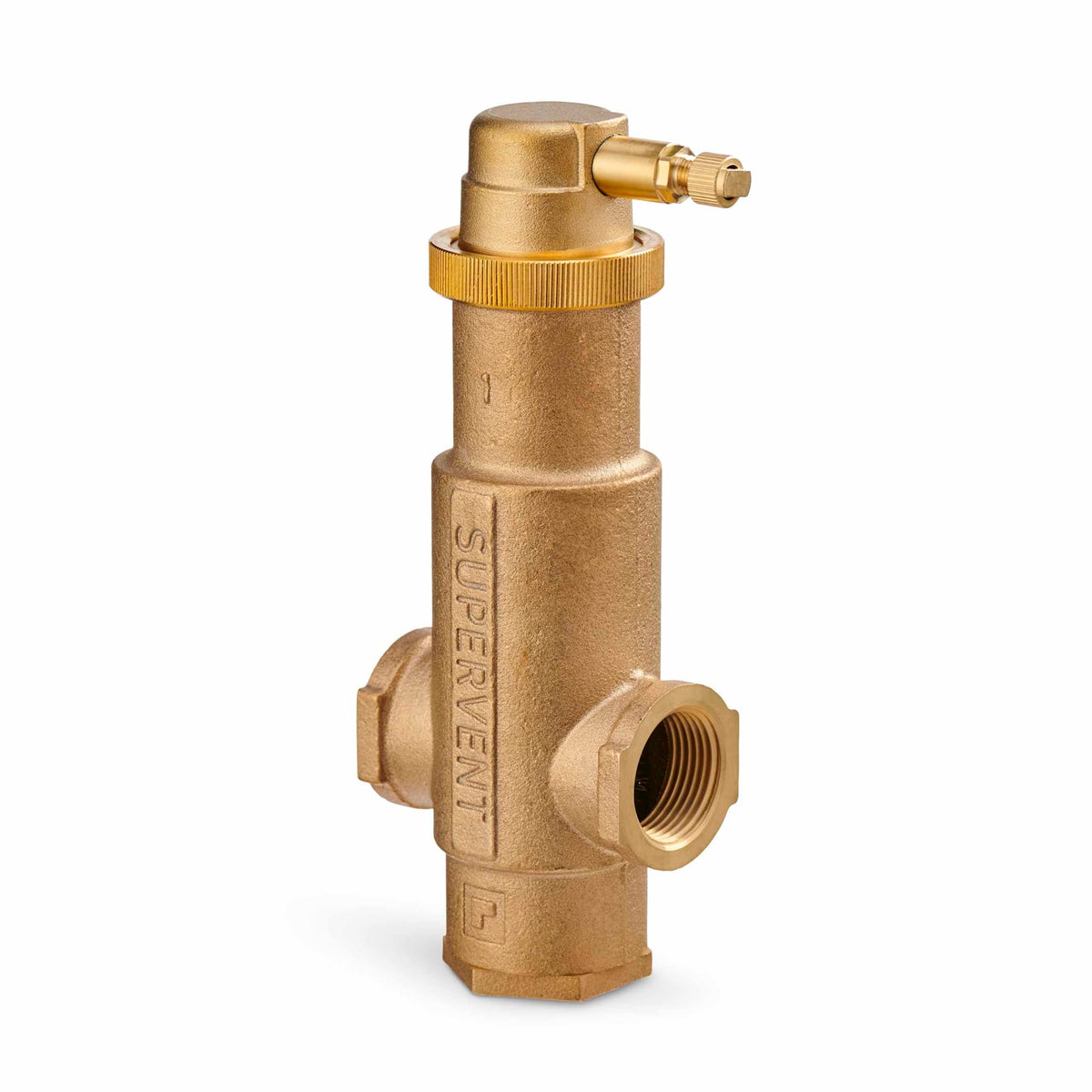

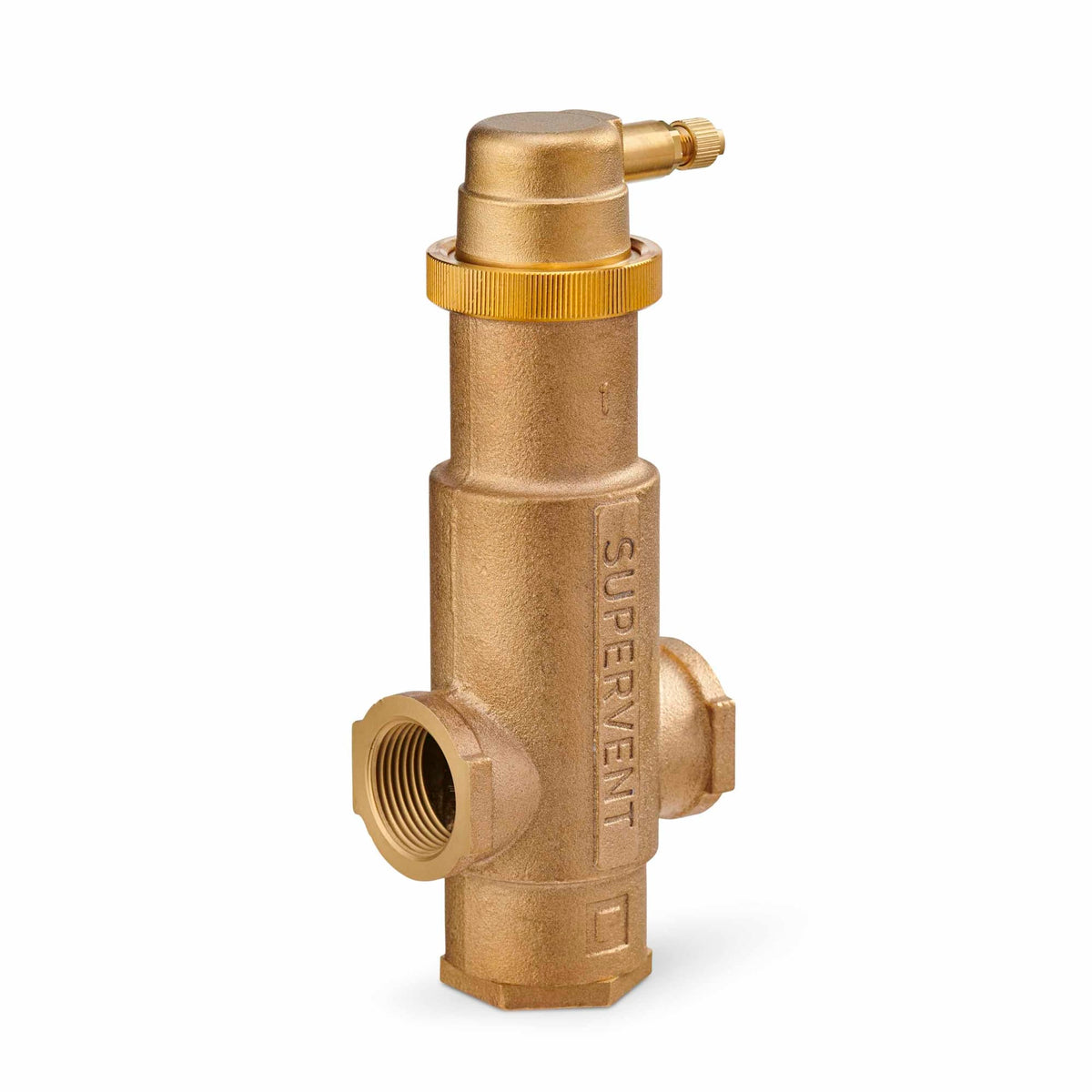

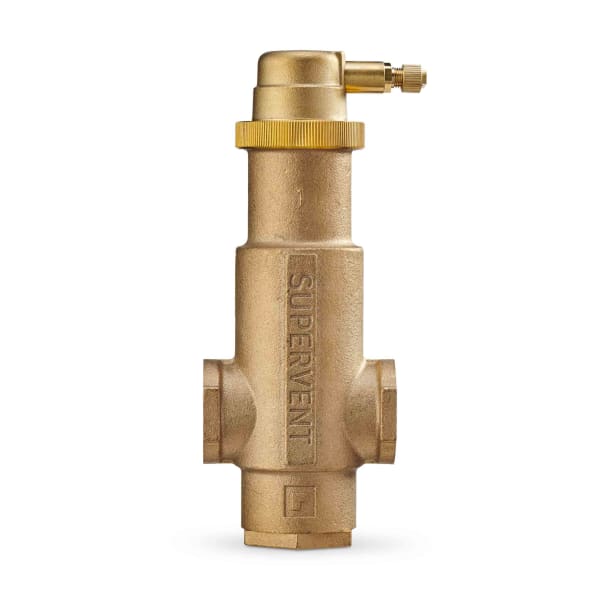

PV150/U 1-1/2 in NPT Connection SuperVent Air Eliminator
PV150/U 1-1/2 in NPT Connection SuperVent Air Eliminator
PV150/U 1-1/2 in NPT Connection SuperVent Air Eliminator

PV150/U 1-1/2 in NPT Connection SuperVent Air Eliminator

Part #
PV150/U
UPC
085267827959
$262.24

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1 1/2 in
Material
Bronze
Connection
Female NPT
Finish
Brass

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

PV150/U — 1-1/2 in NPT Connection SuperVent Air Eliminator.

Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.

Specifications

Part Number PV150/U
Type Air eliminator (air separator)
Pipe Size 1 1/2 in
Connections Female NPT
Flow capacity 50 Cv
Material Bronze
Maximum temperature 240 F
Maximum pressure 125 psi
Dimensions 9.7 in high x 4.3 in wide x 3.1 in deep; Maximum diameter: 3 3/32 in
Shipping Weight 5.2 lb
Application Residential or Commercial closed loop hydronic heating or chilled water systems
Controlled Media Non Potable Water
Flow Coefficient 53 Cv
Manufacturer Warranty 1 Year
Color Brass
Compatible With Hydronic Heating and Cooling Systems
For Use With PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
Bi-directional Flow Yes
Bottom Connection Yes
Connection Size Bottom Inlet 1/2 in, Bottom Inlet 12.7 mm
Connection Type Female NPT
DN Size DN40
Operating Pressure (Max) 125 psi
Product Diameter 3.09 in maximum
Product Height 9.7 in, 246 mm
Product Weight 5.2 lb, 2.4 kg
Product Width 4.3 in, 109 mm
Seal Material EPDM Rubber
Float Material TPX® Polymethylpentene (PMP)
Body Material Bronze
