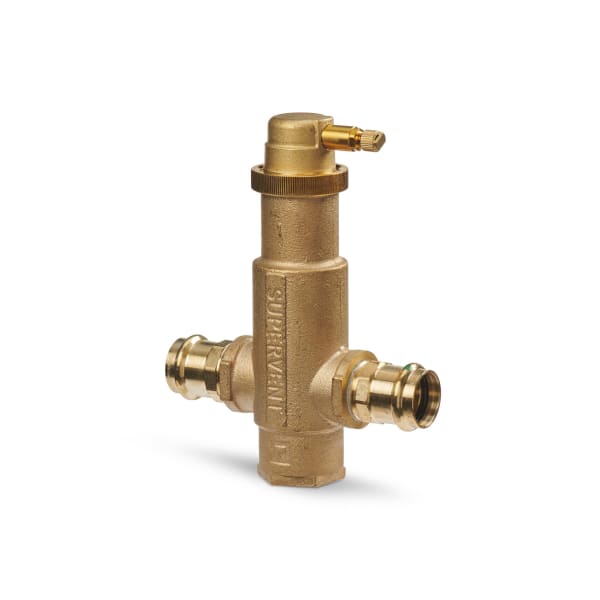

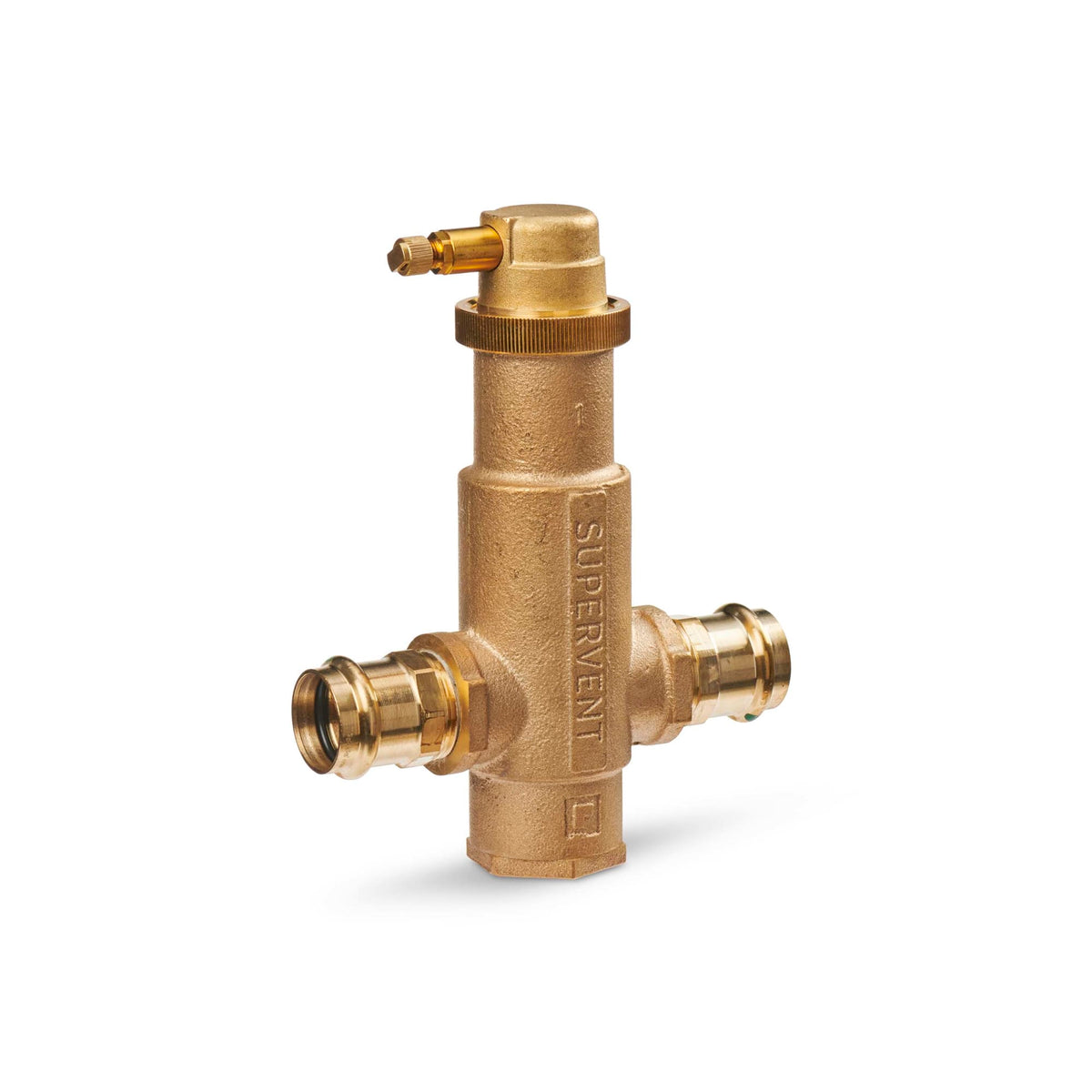

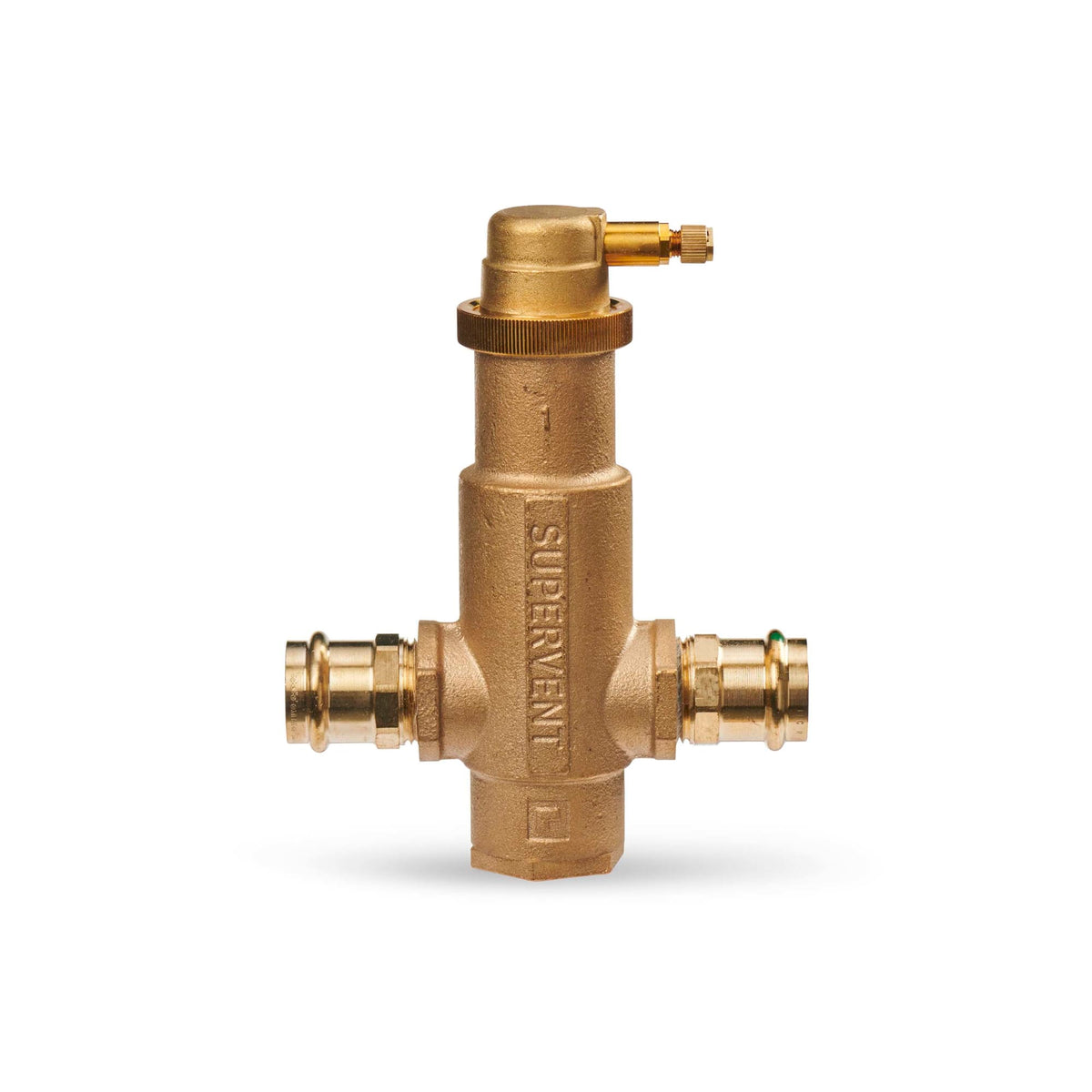

PV125P/U 1 1/4 in SuperVent Air Eliminator with a 1 in Pro Press Connection
PV125P/U 1 1/4 in SuperVent Air Eliminator with a 1 in Pro Press Connection
PV125P/U 1 1/4 in SuperVent Air Eliminator with a 1 in Pro Press Connection

PV125P/U 1 1/4 in SuperVent Air Eliminator with a 1 in Pro Press Connection

Part #
PV125P/U
UPC
194159005648
$284.50

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1 1/4 in
Material
Bronze
Connection
Press
Finish
Brass

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

PV125P/U — 1 1/4 in SuperVent Air Eliminator with a 1 in Pro Press Connection.

Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.

Specifications

Part Number PV125P/U
Type Air eliminator (air separator)
Pipe Size 1 1/4 in
Connections Press
Flow capacity 38 cv
Material Bronze
Maximum temperature 240 F
Maximum pressure 125 psi
Dimensions 8.4 in high x 4.4 in wide x 2.5 in deep
UPC 194159005648
Application Residential or Commercial closed loop hydronic heating or chilled water systems
Controlled Media Non Potable Water
Flow Coefficient 38 Cv
Manufacturer Warranty 1 Year
Color Brass
Compatible With Hydronic Heating and Cooling Systems
For Use With PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
Bi-directional Flow Yes
Bottom Connection Yes
Connection Size Bottom Inlet 1/2 in, Bottom Inlet 12.7 mm
Connection Type Pro Press
DN Size DN32
Operating Pressure (Max) 125 psi
Product Height 8.4 in, 213 mm
Product Weight 4.4 lb, 2 kg
Product Width 7.5 in, 191 mm
Seal Material EPDM Rubber
Float Material TPX® Polymethylpentene (PMP)
Body Material Bronze
