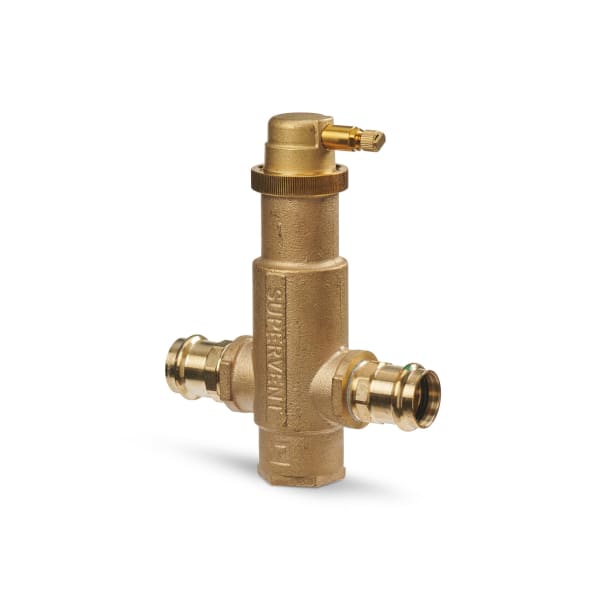

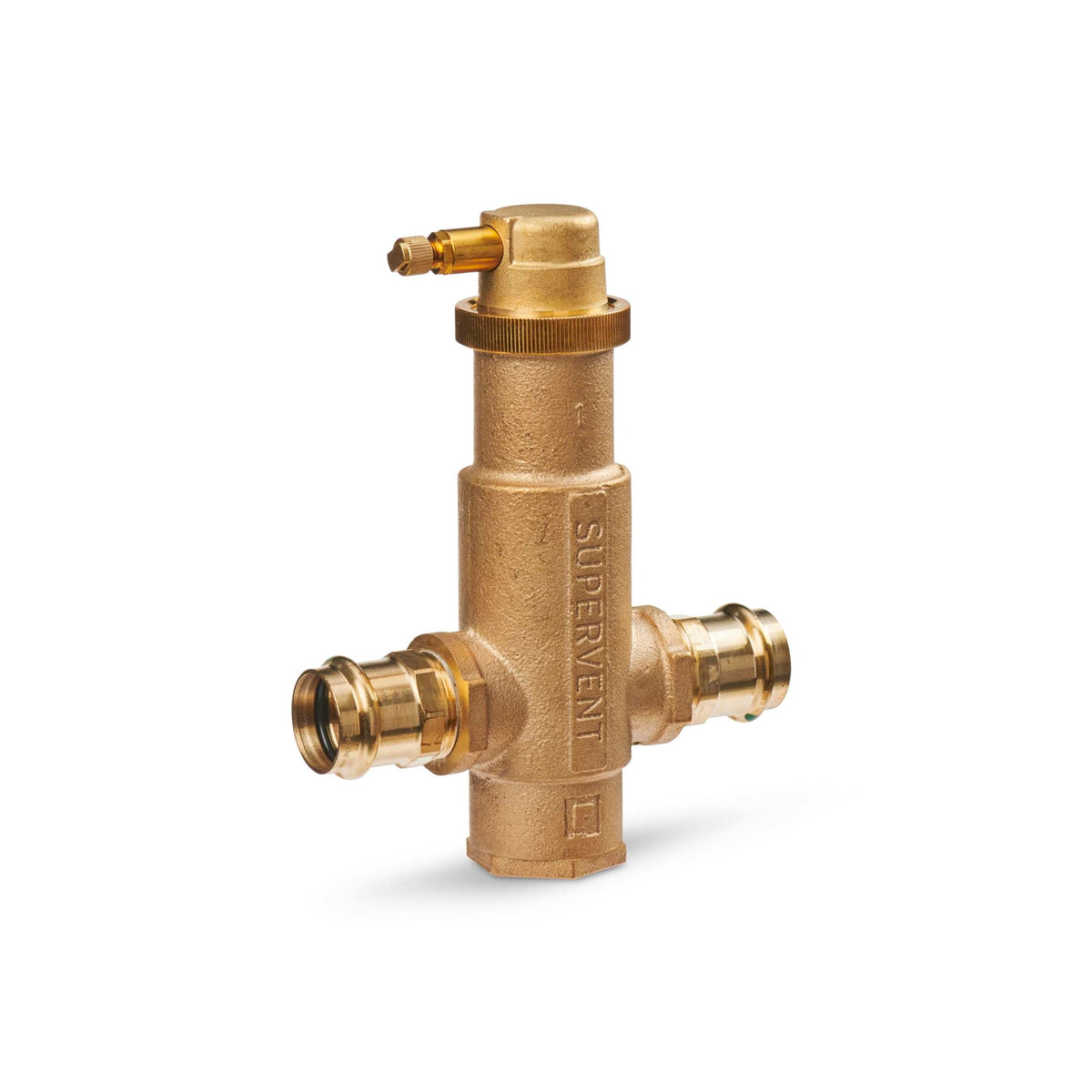

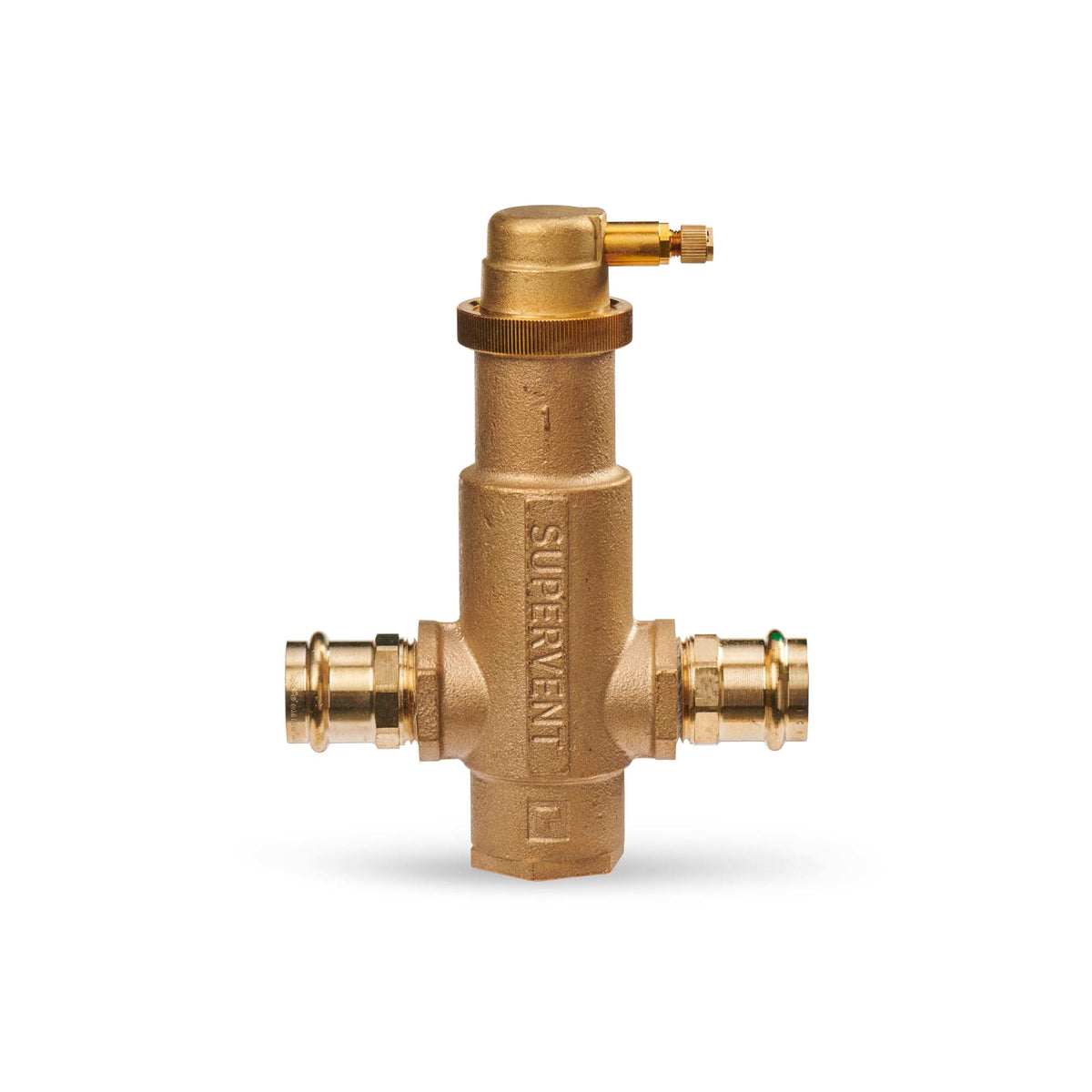

PV100P/U 1 Inch SuperVent Air Eliminator with a 1 Inch ProPress Connections and 22 Cv Capacity
PV100P/U 1 Inch SuperVent Air Eliminator with a 1 Inch ProPress Connections and 22 Cv Capacity
PV100P/U 1 Inch SuperVent Air Eliminator with a 1 Inch ProPress Connections and 22 Cv Capacity

PV100P/U 1 Inch SuperVent Air Eliminator with a 1 Inch ProPress Connections and 22 Cv Capacity

Part #
PV100P/U
UPC
194159005631
$189.67

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1 in
Material
Bronze
Connection
Press
Finish
Brass

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

PV100P/U — 1 Inch SuperVent Air Eliminator with a 1 Inch ProPress Connections and 22 Cv Capacity.

Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.

Specifications

Part Number PV100P/U
Type Air eliminator (air separator)
Pipe Size 1 in
Connections Press
Flow capacity 22 cv
Material Bronze
Maximum temperature 240 F
Maximum pressure 125 psi
Dimensions 8.1 in high x 6.4 in wide x 2.1 in deep
UPC 194159005631
Application Residential or Commercial closed loop hydronic heating or chilled water systems
Controlled Media Non Potable Water
Flow Coefficient 22 Cv
Manufacturer Warranty 1 Year
Color Brass
Compatible With Hydronic Heating and Cooling Systems
For Use With PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
Bi-directional Flow Yes
Bottom Connection Yes
Connection Size Bottom Inlet 1/2 in, Bottom Inlet 12.7 mm
Connection Type Pro Press
DN Size DN25
Operating Pressure (Max) 125 psi
Product Height 8.1 in, 206 mm
Product Weight 3.26 lb, 148 kg
Product Width 6.4 in, 163 mm
Seal Material EPDM Rubber
Float Material TPX® Polymethylpentene (PMP)
Body Material Bronze
