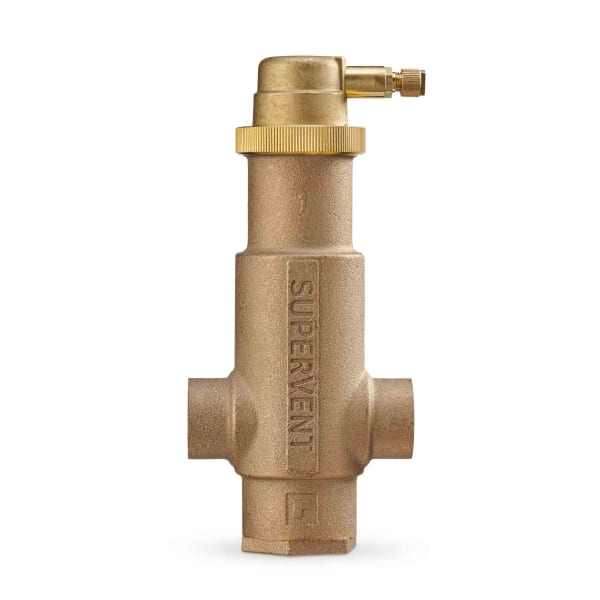

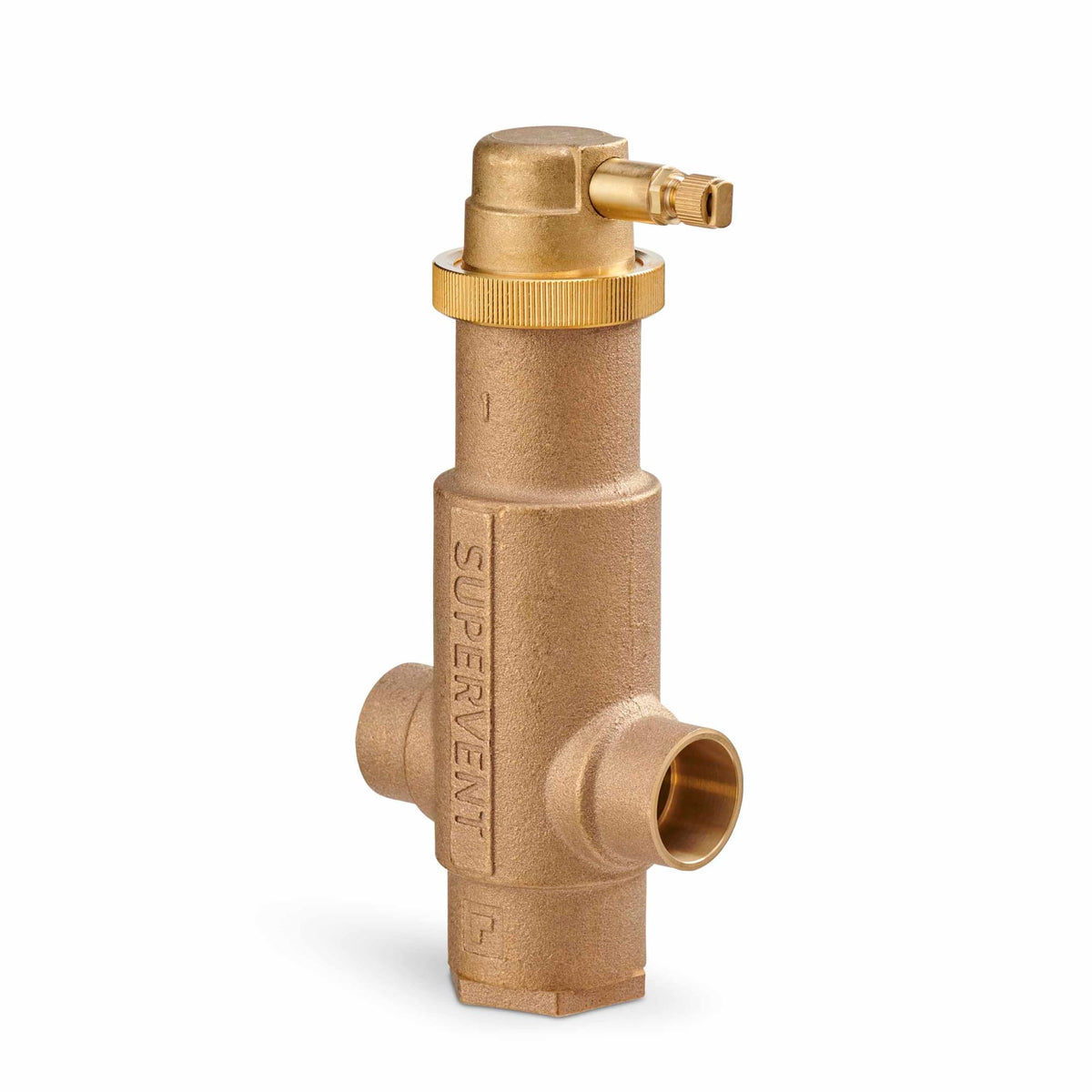

PV075/U 3/4 in NPT Connection SuperVent Air Eliminator
PV075/U 3/4 in NPT Connection SuperVent Air Eliminator
PV075/U 3/4 in NPT Connection SuperVent Air Eliminator

PV075/U 3/4 in NPT Connection SuperVent Air Eliminator

Part #
PV075/U
UPC
085267827843
$131.77

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
3/4 in
Material
Bronze
Connection
Female NPT
Finish
Brass

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

PV075/U — 3/4 in NPT Connection SuperVent Air Eliminator.

Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.

Specifications

Part Number PV075/U
Type Air eliminator (air separator)
Pipe Size 3/4 in
Connections Female NPT
Flow capacity 13 Cv
Material Bronze
Maximum temperature 240 F
Maximum pressure 125 psi
Dimensions 7.4 in high x 2.7 in wide x 1.9 in deep; Maximum diameter: 1 13/16 in
Shipping Weight 1.9 lb
Application Residential or Commercial closed loop hydronic heating or chilled water systems
Controlled Media Non Potable Water
Flow Coefficient 13 Cv
Manufacturer Warranty 1 Year
Color Brass
Compatible With Hydronic Heating and Cooling Systems
For Use With PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
Bi-directional Flow Yes
Bottom Connection Yes
Connection Size Bottom Inlet 1/2 in, Bottom Inlet 12.7 mm
Connection Type Female NPT
DN Size DN20
Operating Pressure (Max) 125 psi
Product Diameter 1.81 in maximum
Product Height 7.4 in, 188 mm
Product Weight 2 lb, 0.91 kg
Product Width 2.7 in, 68 mm
Seal Material EPDM Rubber
Float Material TPX® Polymethylpentene (PMP)
Body Material Bronze
