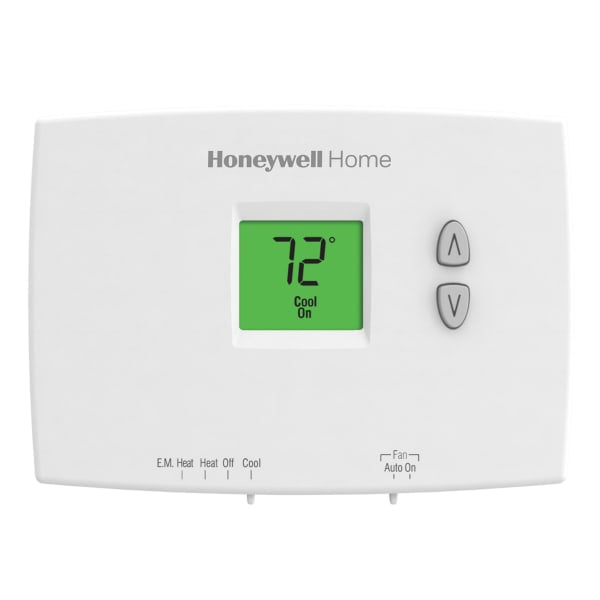

PRO 1000 Horizontal Non-Programmable Thermostat TH1210DH1001/U
- Part #
- TH1210DH1001/U
- UPC
- 085267386135
$60.45
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Premier White®
Full specifications 3 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
TH1210DH1001/U — PRO 1000 Horizontal Non-Programmable Thermostat.
Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.
Specifications
| Part Number | TH1210DH1001/U |
|---|---|
| UPC | 085267386135 |
| Application | 2H/1C heat pump with auxiliary heat |
| Thermostat Type | Non programmable |
| Stages | Up to 2 Heat/1 Cool Heat Pump Systems, Up to 2 Heat/1 Cool Conventional Systems |
| Smart Home Integration | No |
| Display Type | LCD Screen |
| Display Size | 1.32 sq in |
| Touchscreen | No |
| Display Language | English |
| Modes of Operation | Heat, Cool, Emergency Heat |
| Program Type | Manual / Not Programmed |
| Energy Star Certified | No |
| Power Supply | Battery Powered, Hardwired |
| Power Source | Hardwired, Battery Operated |
| Number of Batteries | 2 |
| Battery Size | AA |
| Manufacturer Warranty | 2 Years |
| Includes | Thermostat, Wall Anchors, Screws, Batteries, Literature |
| WiFi | No |
| Z-Wave Specifications | Not Applicable |
| RedLINK | No |
| Color | Premier White® |
| Sensor Type | Thermistor |
| Ambient Operating Temperature (Max) | 102 °F, 39 °C |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Differential Temperature | ± 1 °F, ± 0.5 °C |
| Fan Function | Cycled, Continuous |
| Demand Response | No |
| Temperature Accuracy | 0.5°C, 1°F |
| Electrical Connection Type | Screw terminals |
| Mounting Type | Horizontal Mount |
| Number of Fan Speeds | 1 |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Set point Temperature (Max) | Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C |
| Set point Temperature (Min) | Heat: 32 °F, Heat: 0 °C, Cool: 50 °F, Cool: 10 °C |
| Mounting Location | Wall |
| Product Height | 3.44 in, 87 mm |
| Product Width | 4.63 in, 119 mm |
| Product Depth | 1.19 in, 30 mm |
