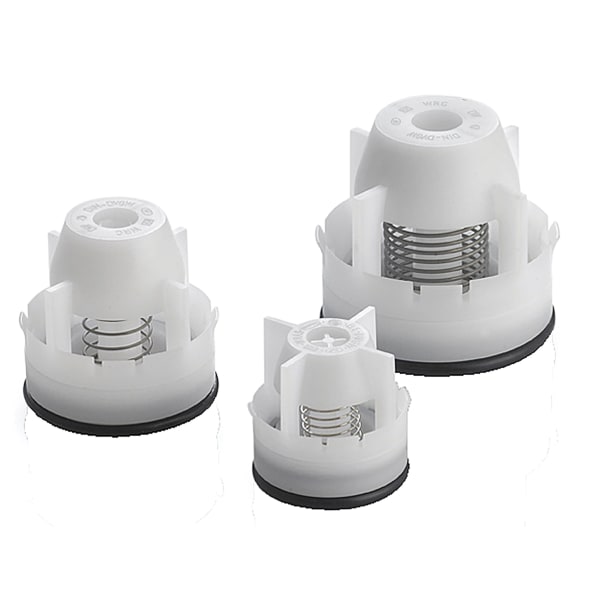

PCV100/U 1 in Circulating Pump Check Valve
- Part #
- PCV100/U
- UPC
- 085267837347
$7.01
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1 in
- Finish
- White
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
PCV100/U — 1 in Circulating Pump Check Valve.
Wet-rotor circulators, ECM variable-speed pumps, replacement cartridges and flanges for hydronic heating and cooling loops.
Specifications
| Part Number | PCV100/U |
|---|---|
| Type | Circulating pump check valve |
| Size | 1 in |
| Maximum flow | 34 gpm |
| Maximum fluid temperature | 200 F |
| Maximum pressure | 150 psi |
| UPC | 085267837347 |
| Application | Closed Loop Hydronic Heating Systems, Closed Loop Hydronic Cooling Systems, Solar Powered Systems |
| Approvals and Standards | NSF/ANSI 61 |
| Controlled Media | Non Potable Water |
| Flow Rate (Max) | 34 gpm |
| Manufacturer Warranty | 5 Years |
| Connection Size | 1 in |
| Submersible | Non Submersible |
| Media Temperature (Max) | 200 °F, 93 °C |
| Color | White |
| Compatible With | Hydronic Heating Systems, Hydronic Cooling Systems, Solar Powered Systems |
| For Use With | PC3F1558IUF00/U, PCG100/U |
| Includes | External O-ring in groove |
| Product Diameter | 1 in |
| Seal Material | EPDM Rubber |
