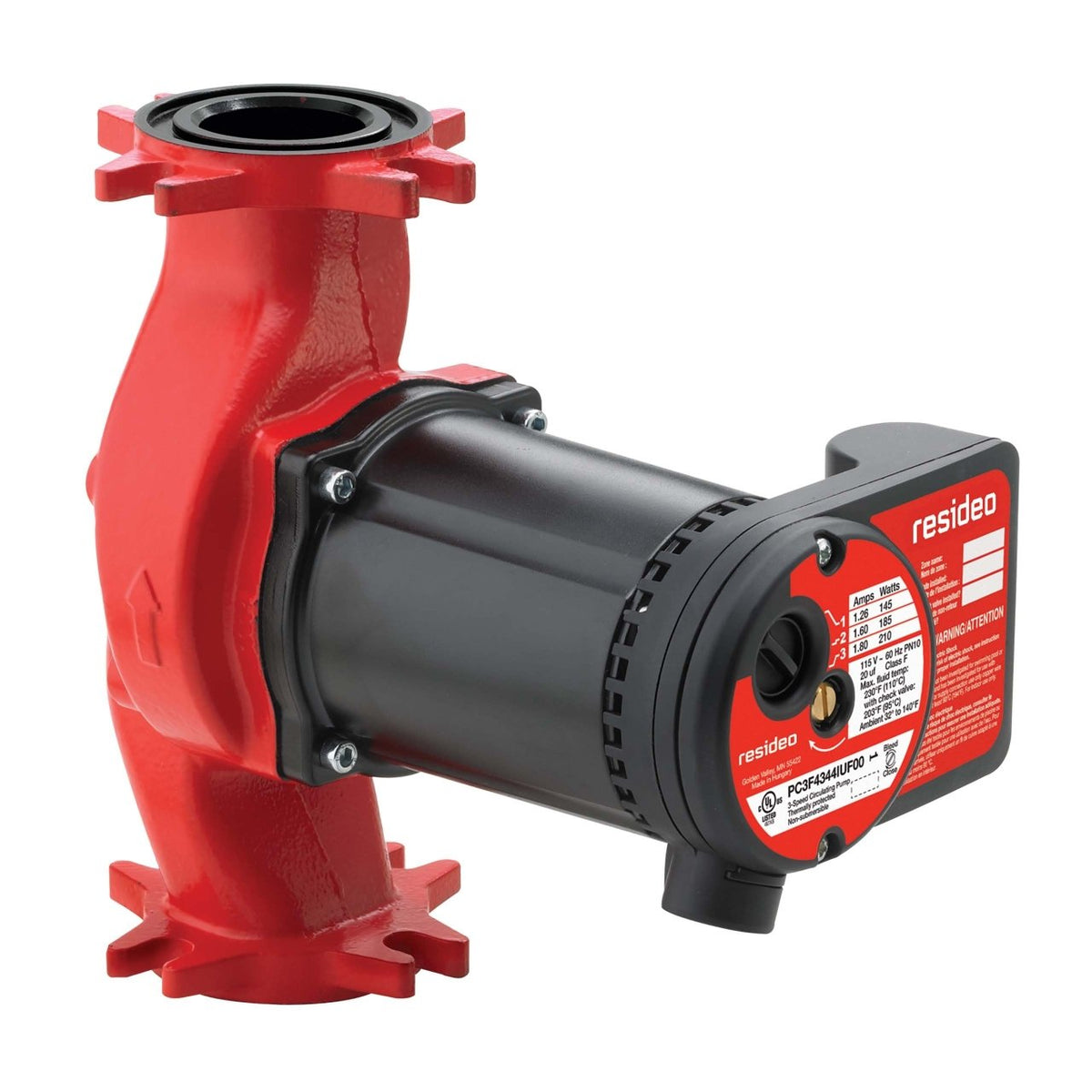

PC3F4344IUF00/U AquaPump Hydronic Circulating Pump, 3-Speed, 59 GPM Max
- Part #
- PC3F4344IUF00/U
- UPC
- 085267964579
$571.30
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3 2/5 in, 87 mm
- Material
- Cast Iron GG25
- Connection
- Flanged
- Finish
- Black, Red
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
PC3F4344IUF00/U — AquaPump Hydronic Circulating Pump, 3-Speed, 59 GPM Max.
Wet-rotor circulators, ECM variable-speed pumps, replacement cartridges and flanges for hydronic heating and cooling loops.
Specifications
| Part Number | PC3F4344IUF00/U |
|---|---|
| Application | Closed Loop Hydronic Heating Systems, Closed Loop Hydronic Cooling Systems, Solar Powered Systems |
| Approvals and Standards | Insulation Class F, Temperature Class: TF 95, UL Listed 4MX8 |
| Controlled Media | Non Potable Water |
| Flow Rate (Max) | 59 gpm, 170 lpm |
| Manufacturer Warranty | 5 Years |
| Power Source | Hardwired |
| Number of Speeds | 3 |
| Wattage Per Speed | 145 W for Speed 1, 185 W for Speed 2, 210 W for Speed 3 |
| Amp Drop Per Speed | 1.26 A for Speed 1, 1.61 A for Speed 2, 1.83 A for Speed 3 |
| Operating Frequency | 60 Hz |
| Operating Voltage | 115 VAC |
| Driving Noise Rating | Less than 43 dB(A) at 3.3 feet, Less than 43 dB(A) at 1 meter |
| Connection Size | 3 2/5 in, 87 mm |
| Connection Type | Flanged |
| Flange Connection Size | 3.4 in, 87 mm |
| Submersible | Non Submersible |
| Inlet Pressure (Min) | 4.1 psi at 194 °F, 4.1 psi at 90 °C, 0.73 psi at 167 °F, 0.73 psi at 75 °C |
| Media Pressure (Max) | 50 psi at 200 °F, 50 psi at 93 °C, 145 psi at room temperature |
| Pressure Head (Max) | 17 ft, 5.2 m |
| Media Temperature (Max) | 230 °F, 110 °C |
| Check Valve Media Temperature (Max) | 200 °F, 93 °C |
| Ambient Operating Temperature (Max) | 104 °F, 40 °C |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Color | Black, Red |
| Compatible With | Hydronic Heating Systems, Hydronic Cooling Systems, Solar Powered Systems |
| For Use With | PCG150/U, PCV150/U |
| A to B Port Dimensions | 8.5 in, 216 mm |
| Product Height | 8.5 in, 216 mm |
| Product Length | 6.1 in, 155 mm |
| Product Weight | 11 lb, 5 kg |
| Body Material | Cast Iron GG25 |
| Bearing Material | Ceramic |
| Seal Material | EPDM Rubber |
| Shaft Material | Ceramic |
| Impeller Material | Polyamide |
| UPC | 085267964579 |
| Country of Origin | HU |
