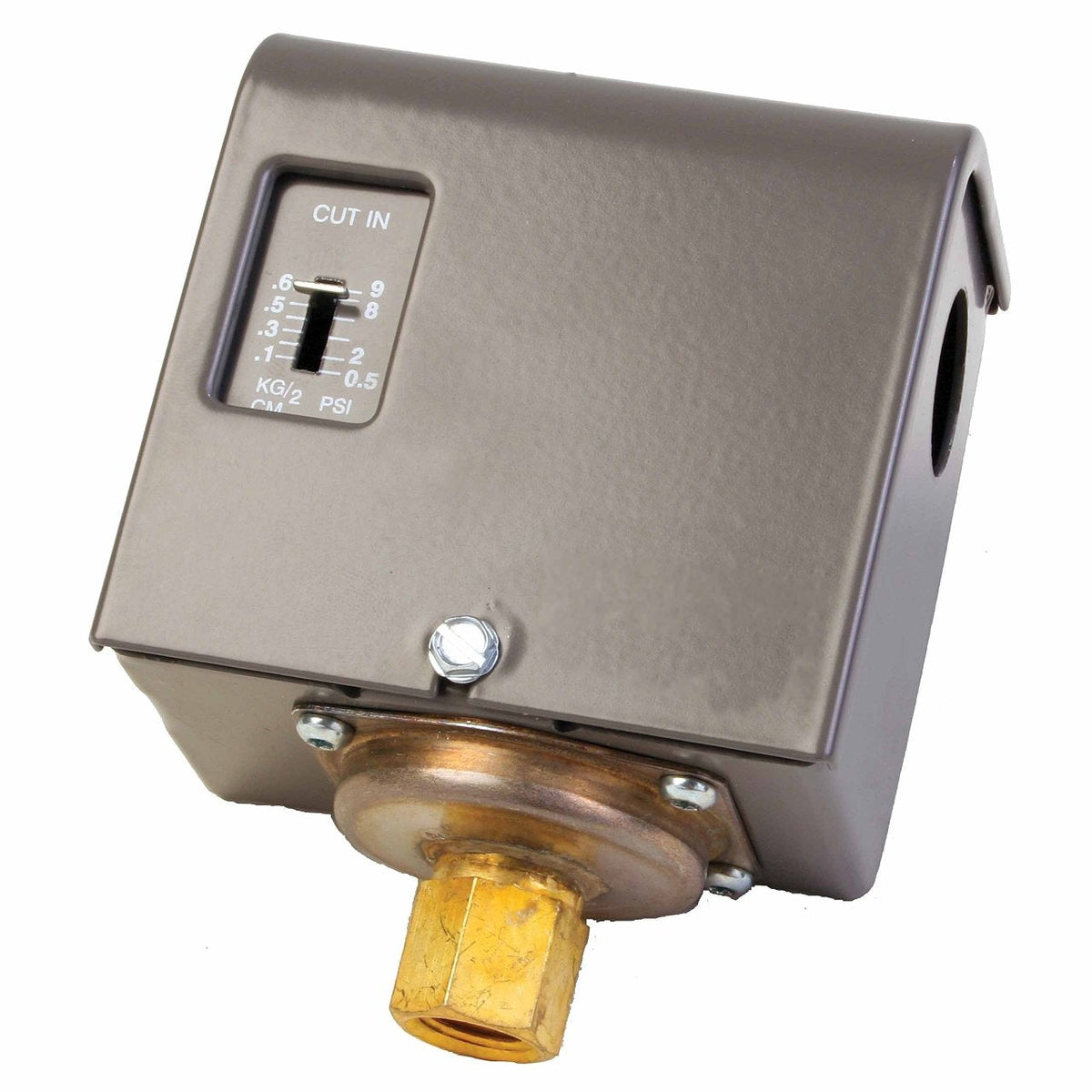

PA404B1023/U Pressuretrol Pressure Control, 0.5–9 psi, Without Lugs
- Part #
- PA404B1023/U
- UPC
- 085267064316
$279.40
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Gray
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
PA404B1023/U — Pressuretrol Pressure Control, 0.5–9 psi, Without Lugs.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | PA404B1023/U |
|---|---|
| Application | Used with suspension type unit heaters |
| Approvals and Standards | UL Listed: File no. MP466, Guide no. MBPR, CSA Listed: File no. LR1620 |
| Compatible With | Steam Heating Boilers |
| Adjustable Operating Pressure (Min) | 0.5 psi, 3 kPa |
| Adjustable Operating Pressure (Max) | 9.0 psi, 62 kPa |
| Differential Type | Additive |
| Adjustable Scale Range | 0.5 psi to 9 psi, 3 kPa to 62 kPa |
| Pressure Surge | 50 psi maximum, 345 kPa maximum |
| Switch Operation | Pressure actuated SPST, snap-action |
| Color | Gray |
| Product Height | 4.47 in, 114 mm |
| Product Length | 2.25 in, 58 mm |
| Product Width | 3.38 in, 86 mm |
| UPC | 085267064316 |
| Country of Origin | MX |
Ratings & details
- Pressure controller used with suspension
