Part #
NCB-240/130H
$3,786.99

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

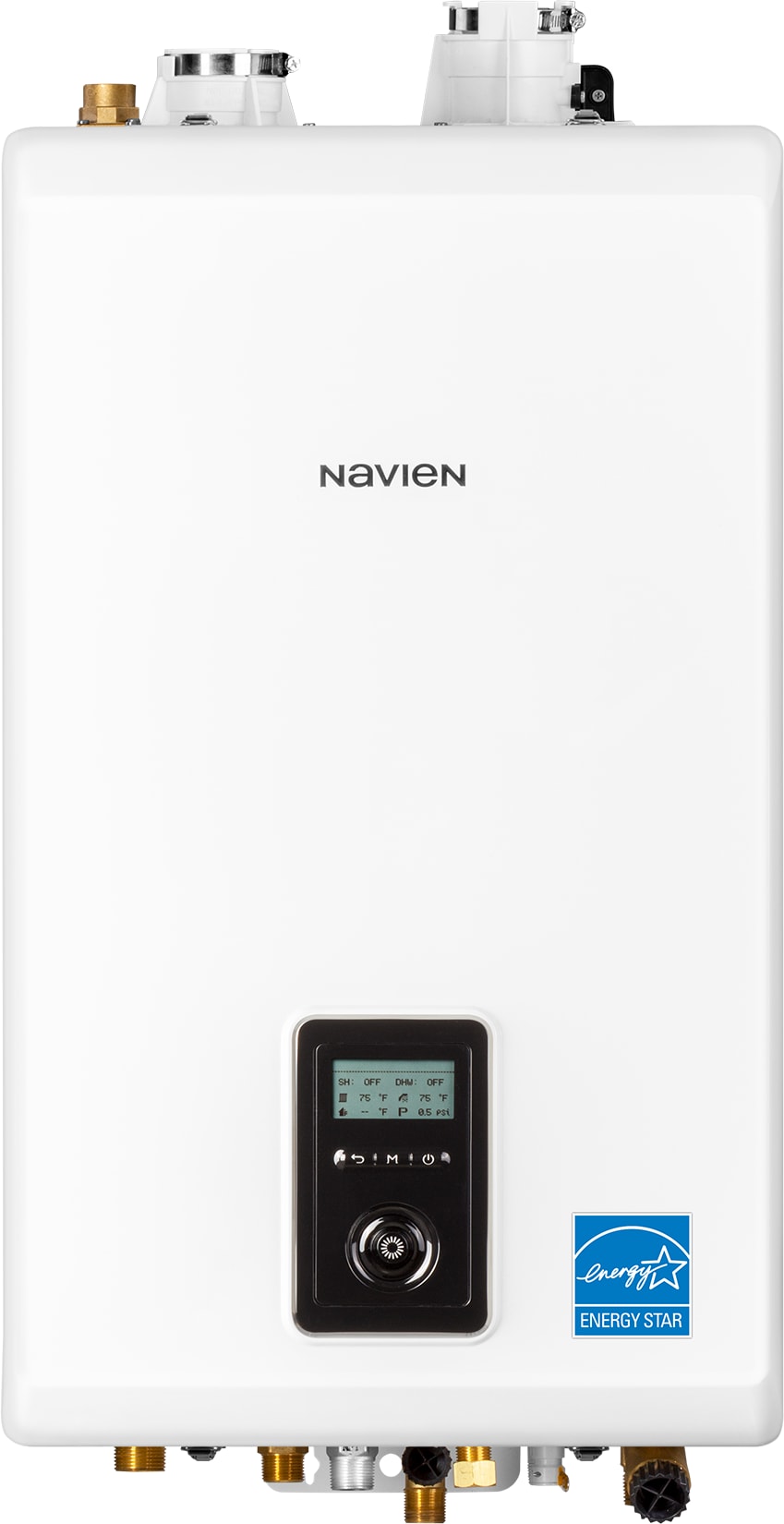

NCB-240/130H — High Efficiency Condensing Combi-Boiler - Max Htg Input: 130,000 BTU/h, Max DHW Input: 199,900 BTU/h, Indoor Wall-Hung.

Condensing, combi and cast iron boilers for hydronic heating, many with domestic hot water built in. Size from a heat-loss calculation, not the old boiler's rating.

Specifications

Part Number NCB-240/130H
AFUE 95
Application Indoor potable and hydronic heating
Fuel Type Natural Gas or Propane
BTU Input Maximum Heating 130,000 Btu/h
BTU Input Minimum Heating 13,000 Btu/hr
BTU Input Domestic Maximum 199,900 Btu/hr
Hot Water Flow 5.1 GPM @ 70 Degree Rise F
DHW Temperature Range 86-140 Degrees F
Gas Inlet 3/4"
Cold & Hot Connections Domestic 3/4" MIP
Heating System Inlet 1"
Heating System Outlet 1"
Vent Type Direct or power vent
Vent Size 2" or 3"
Vent Material Polypropylene / PVC / CPVC / SS
Installation Type Indoor Wall Mount

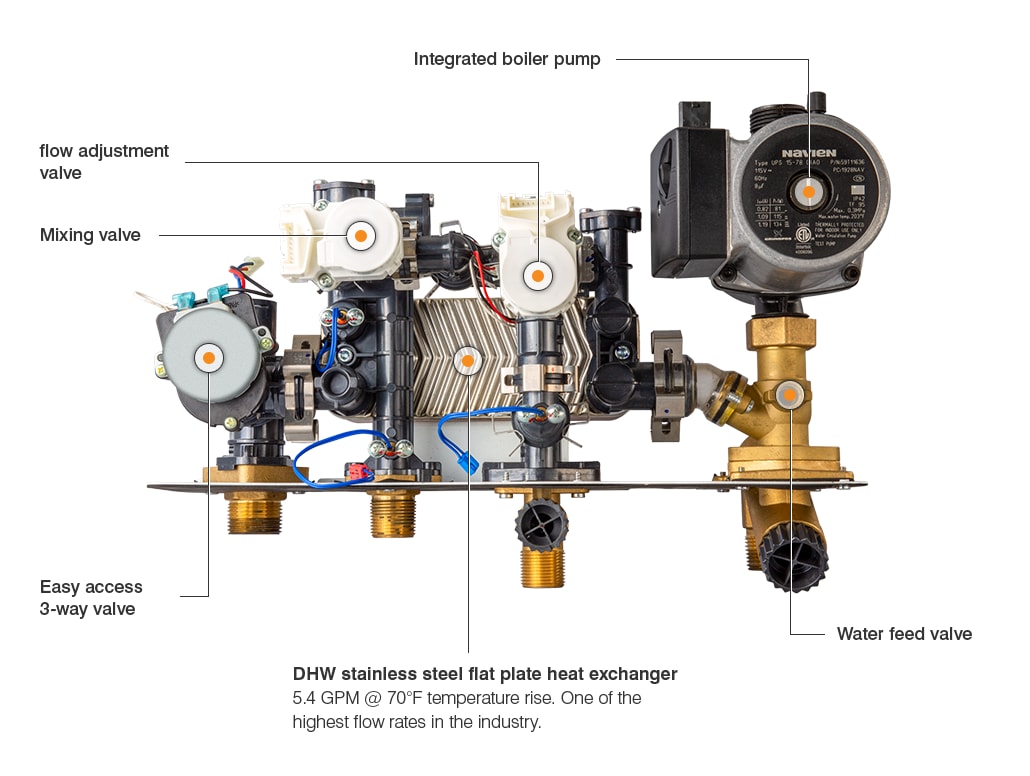

Boiler Pump Included Yes
Priority Zone Control Built-in 3 zone pumps and 3 zone valves powered connections

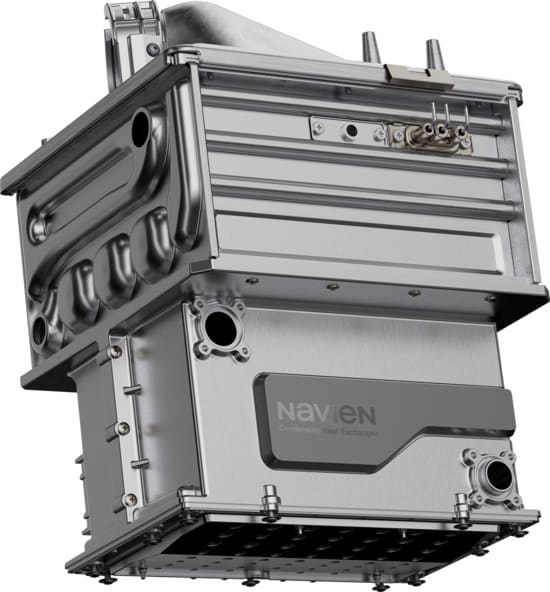

Heat Exchanger Type Stainless Steel
Volts 120 Volts
Height 29.3"
Width 17.3"
Depth 12.8"
Weight 96 lb
Manufacturer Warranty 10 year heat exchanger/ 5 year parts/ 1 year labor
