Multi-System Pilot Burner Q348U1009/U
Multi-System Pilot Burner Q348U1009/U
Multi-System Pilot Burner Q348U1009/U

Multi-System Pilot Burner Q348U1009/U

Part #
Q348U1009/U
UPC
085267462174
$86.03

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

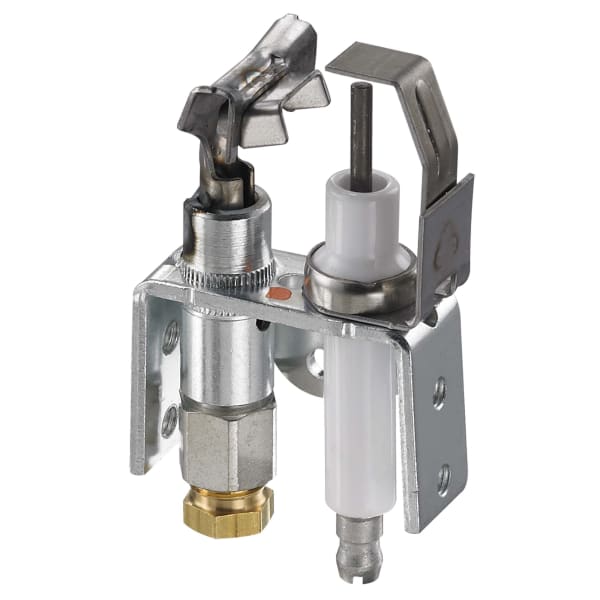

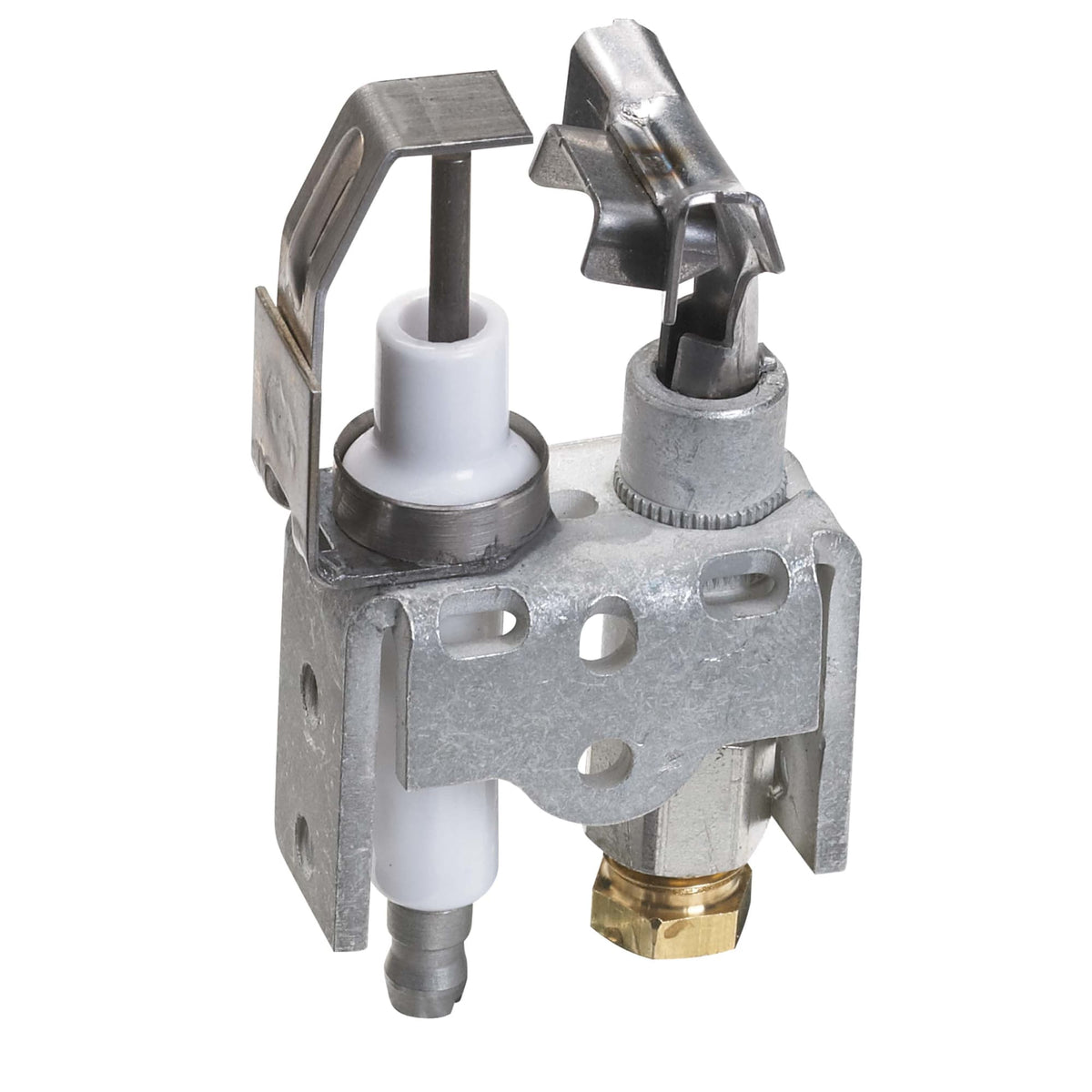

Q348U1009/U — Multi-System Pilot Burner.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number Q348U1009/U
Type Pilot burner
Universal Yes
UPC 085267462174
Application Universal Pilot Burner for Intermittent Pilot Applications
Gas Type Natural Gas, LPG
Type of Fuel Natural Gas, LPG
Igniter-Sensor Rod Single
Aeration Non-Primary
Mounting Bracket Style Type U

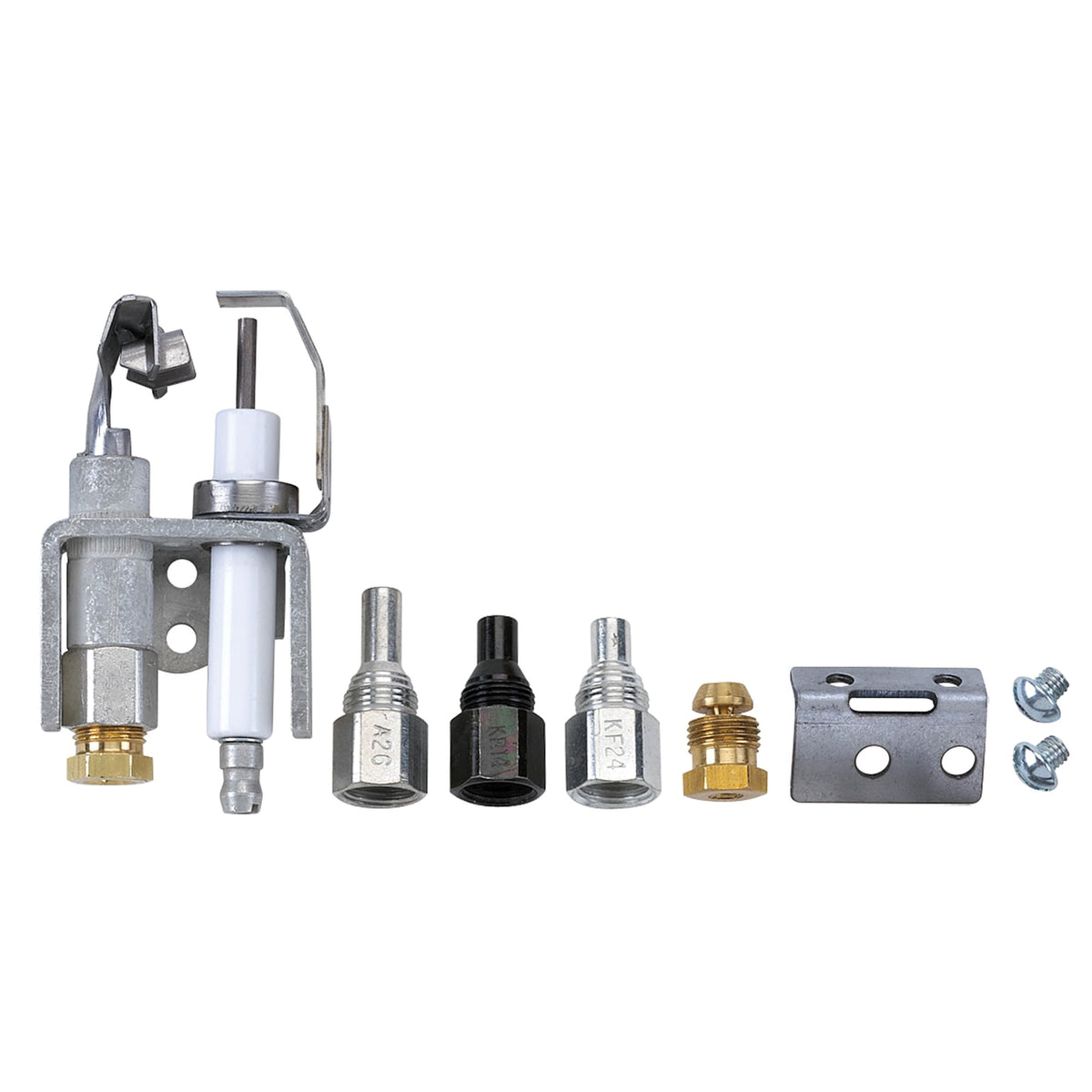

Includes NE22, KF24, A26, KR14 orifices, 1"" batwing, 1/4 in. compression fittings, 1/8 in. compression fittings
Compatible With Gas-fired Systems
Tip Direction Dual Wing
Tip Style Batwing
Compression Fitting Diameter 1/4 in|1/8 in
