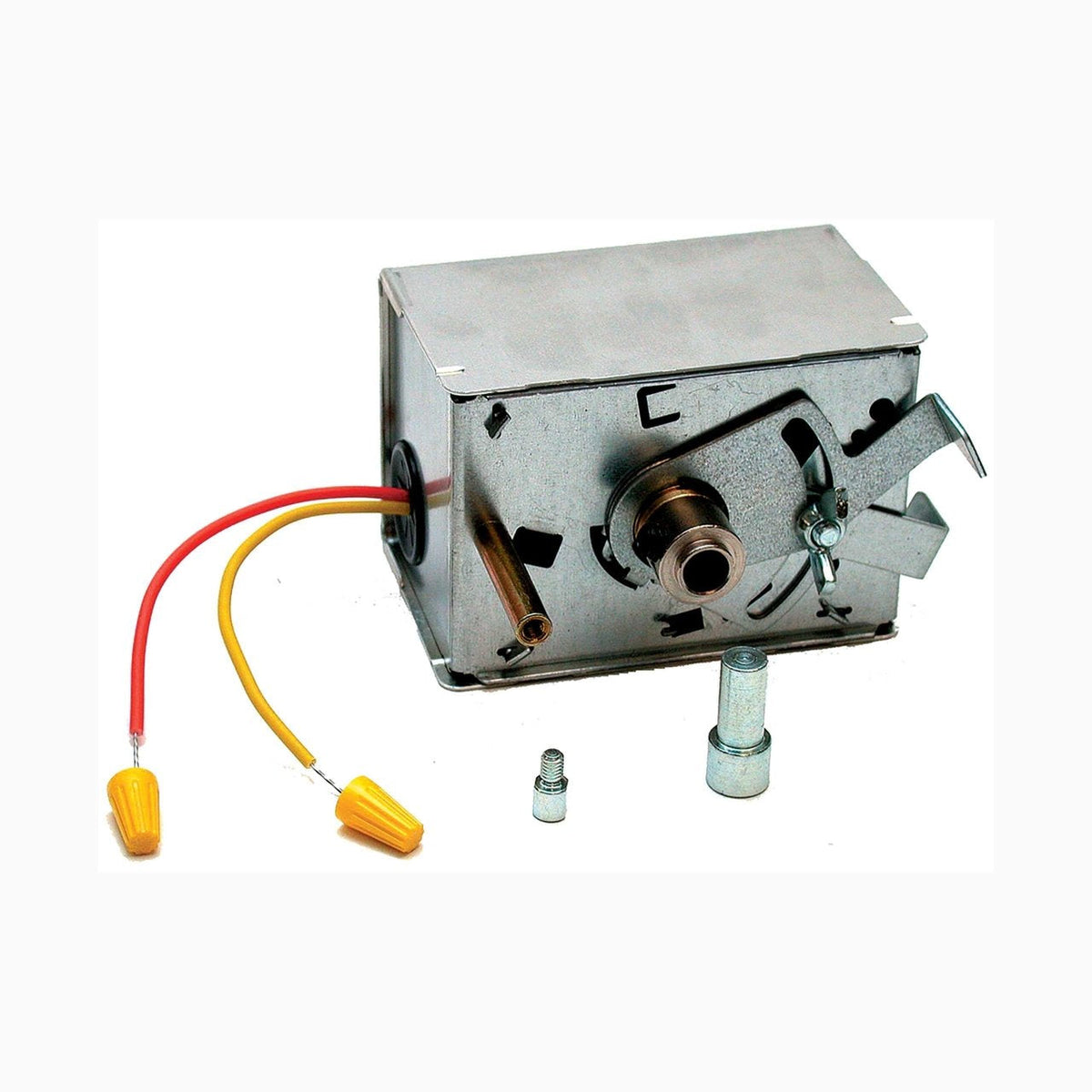

M847A1031/U Damper Replacement Part, 38 in Linkage Chain, Extended Bracket
- Part #
- M847A1031/U
- UPC
- 085267127837
$185.00
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
M847A1031/U — Damper Replacement Part, 38 in Linkage Chain, Extended Bracket.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | M847A1031/U |
|---|---|
| Product Height | 3.5 in, 89 mm |
| Product Weight | 1.8 lb |
| Product Width | 2.63 in, 66 mm |
| Includes | 38 in linkage chain |
| Ambient Operating Temperature (Min) | 40 °F, 5 °C |
| Ambient Operating Temperature (Max) | 125 °F, 50 °C |
| Mounting Type | Direct Coupled, Foot Mounted, Horizontal Mount, Vertical Mount |
| Operating Frequency | 60 Hz |
| Product Depth | 3.31 in, 84 mm |
| Rotation Direction | Actuator Wheel: when energized, this wheel rotates in the clockwise direction when facing the wheel. |
| Supply Voltage | 24 V AC |
| UPC | 085267127837 |
| Country of Origin | MX |
