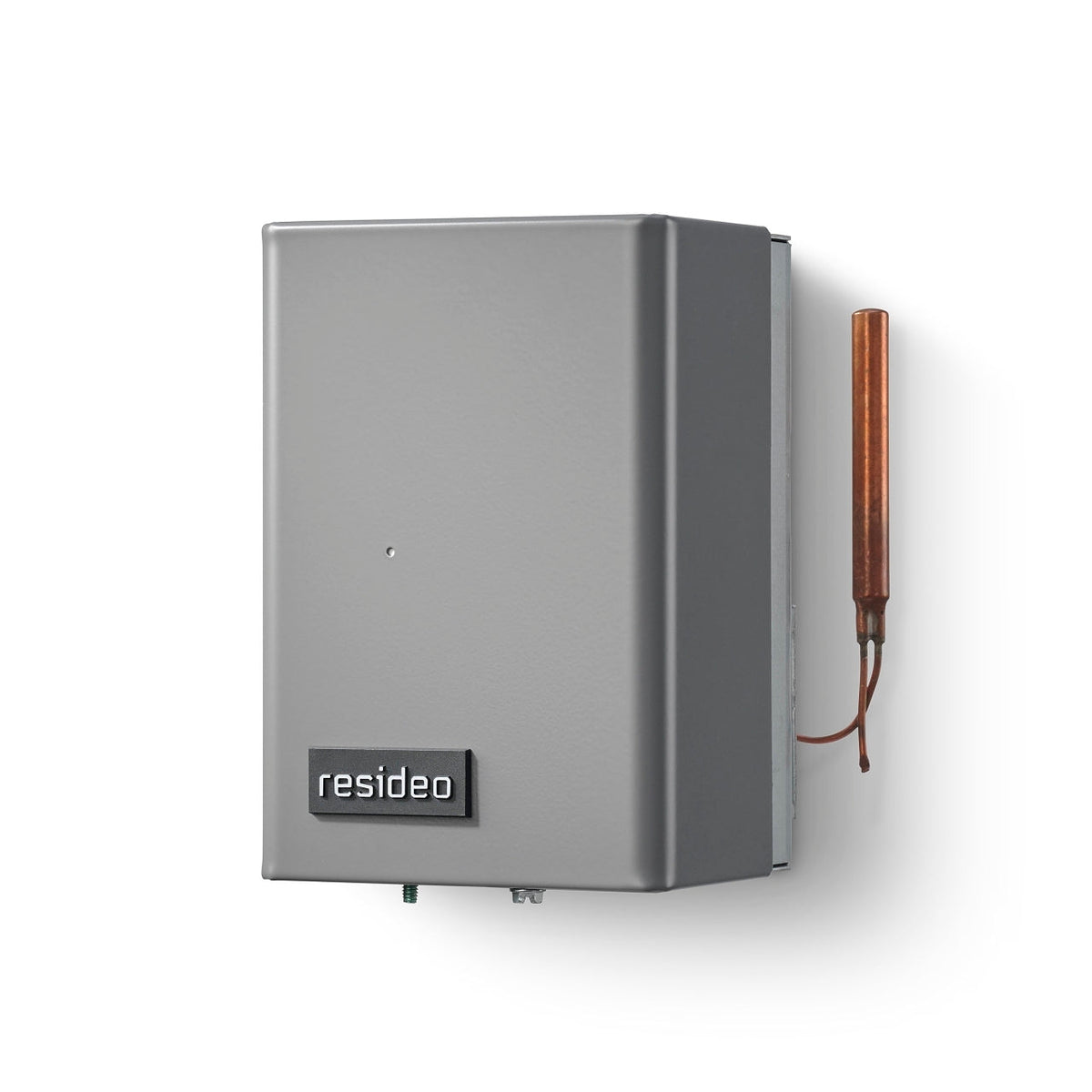

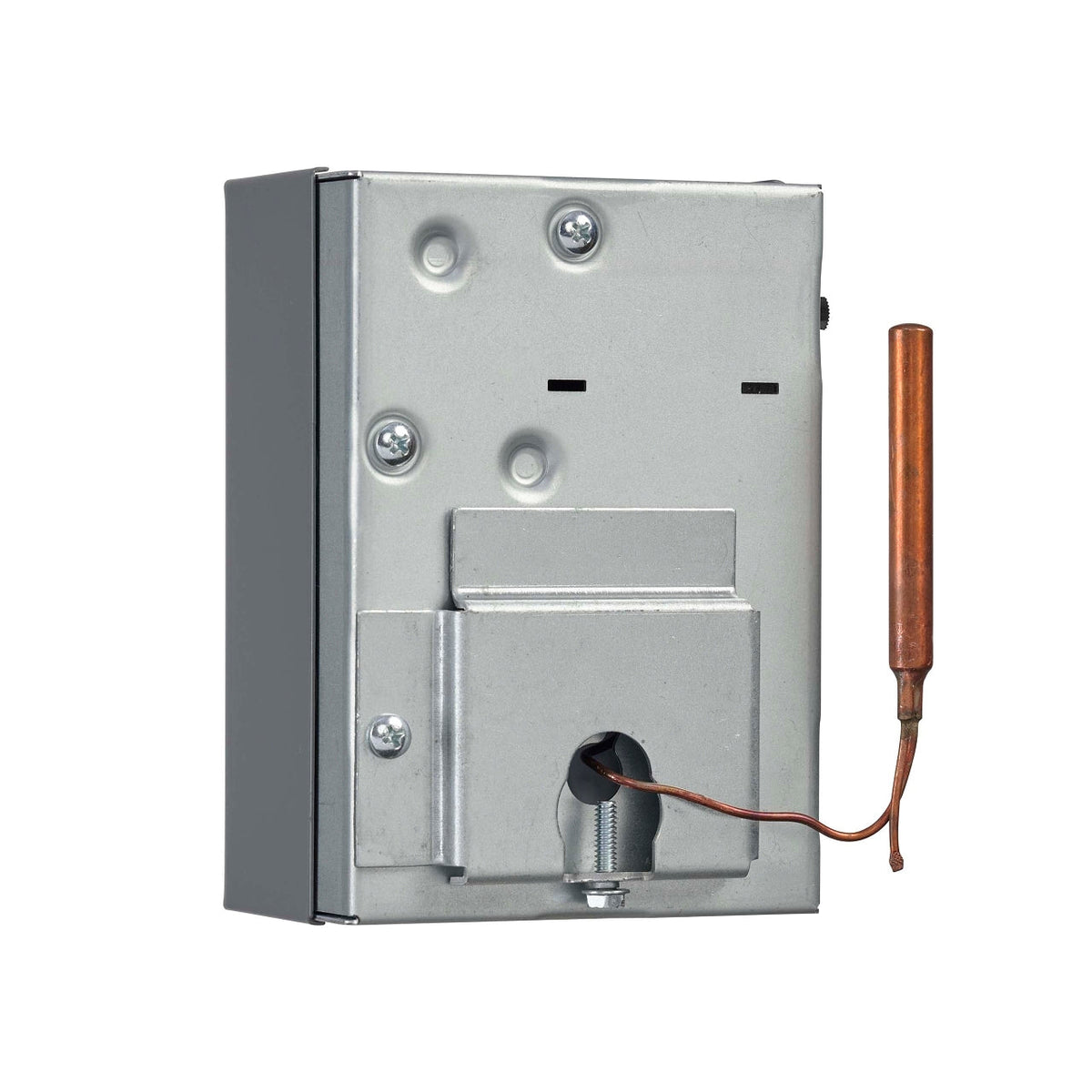

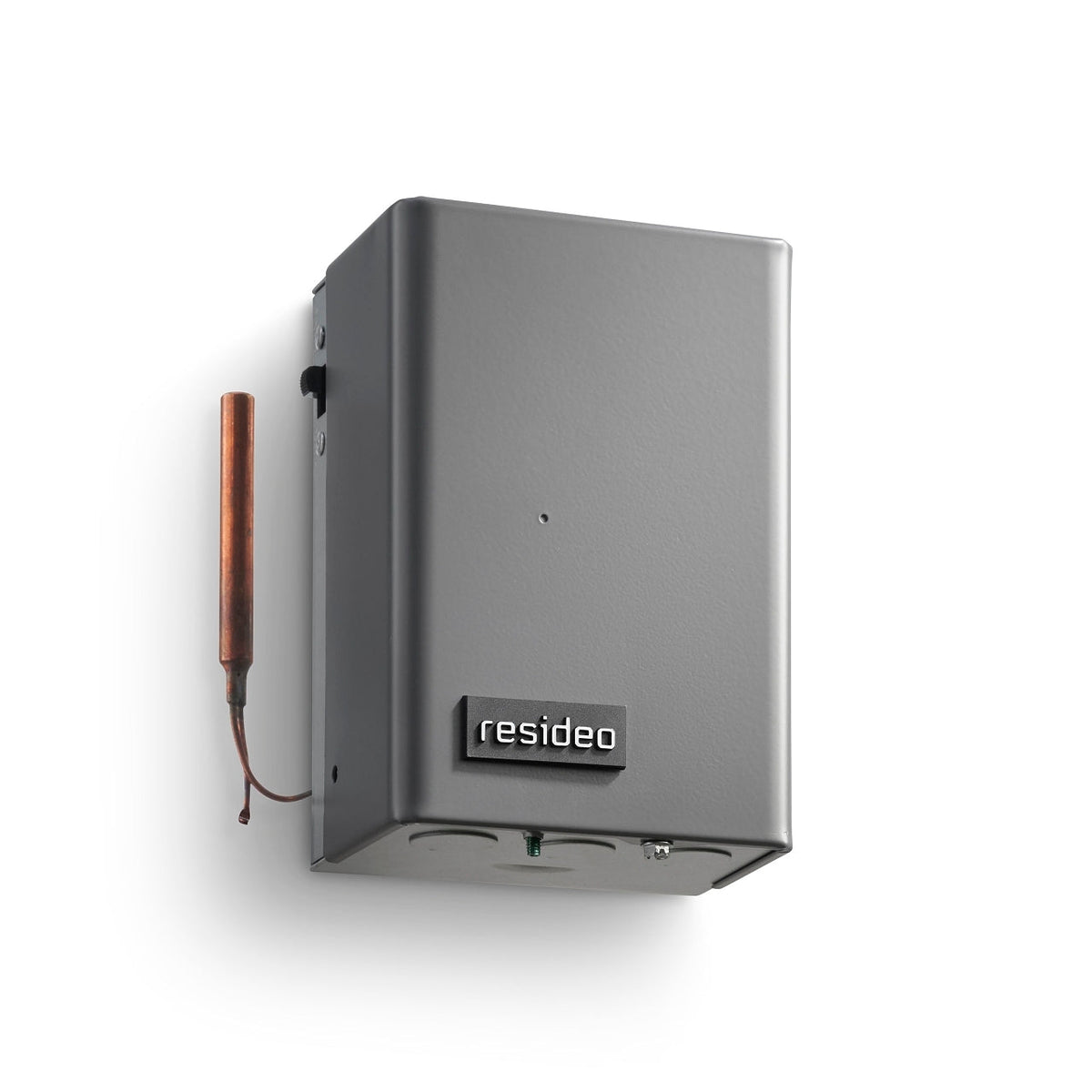

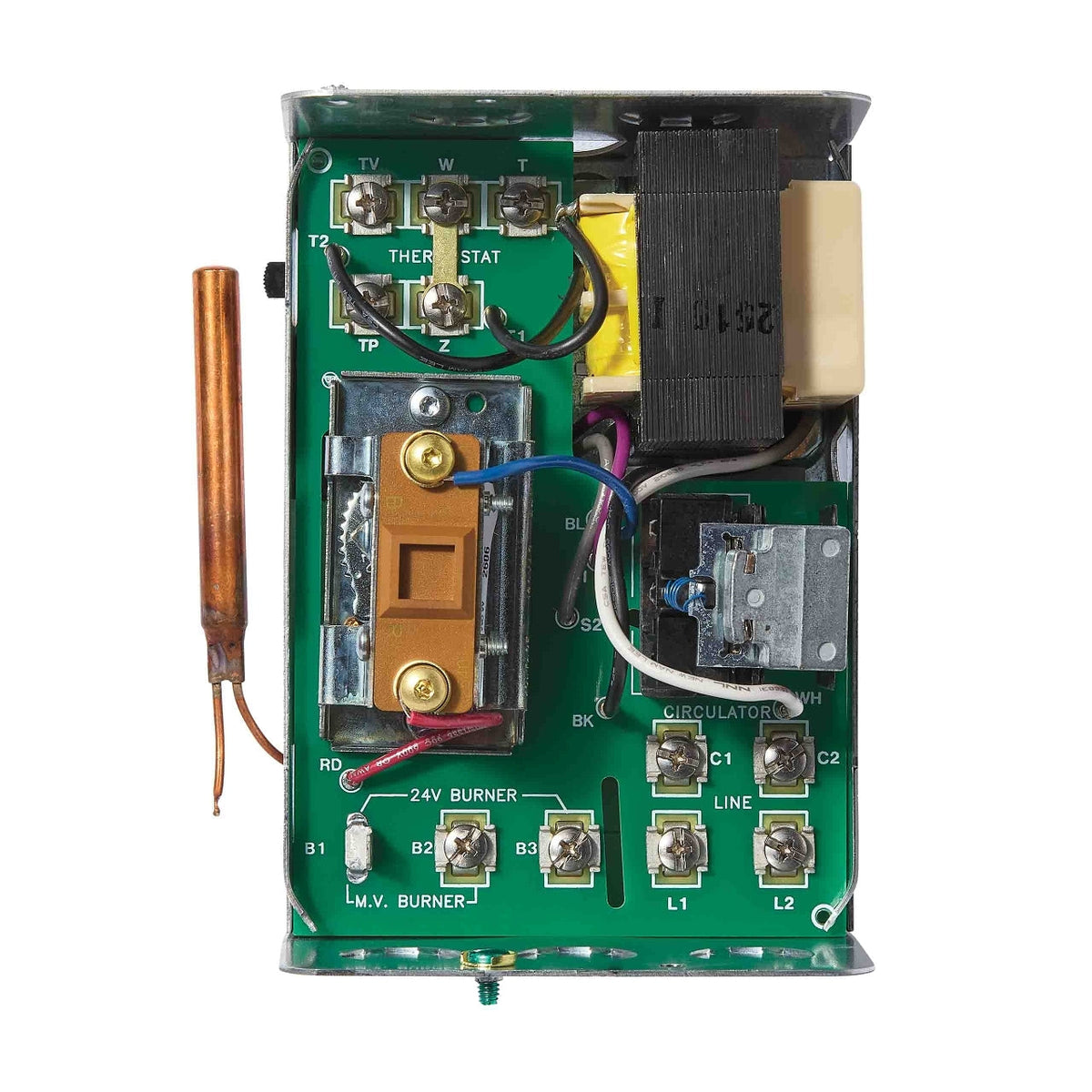

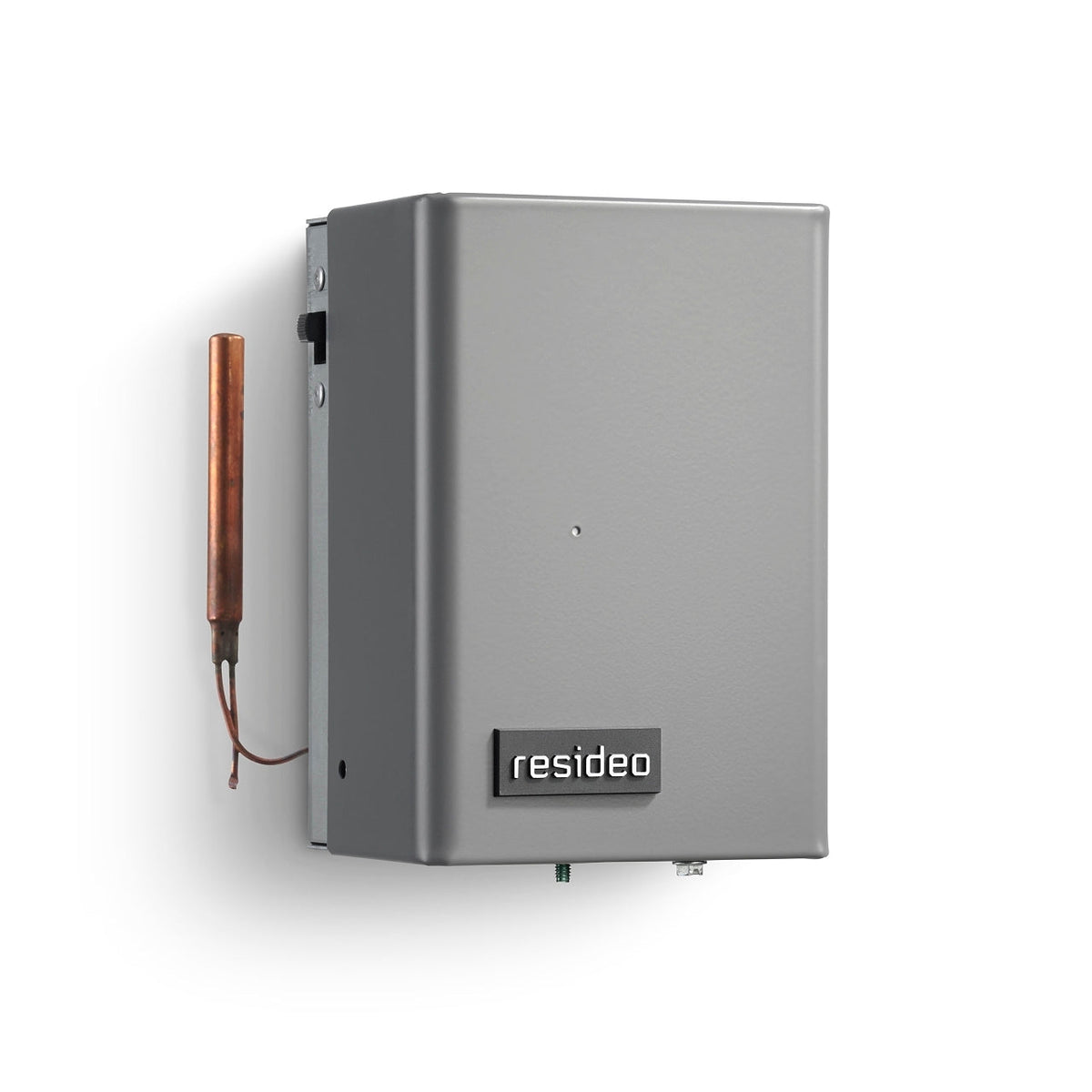

L8148J1009/U Aquastat Control, 140–240°F, 120 VAC, Universal Mount, Less Well
L8148J1009/U Aquastat Control, 140–240°F, 120 VAC, Universal Mount, Less Well
L8148J1009/U Aquastat Control, 140–240°F, 120 VAC, Universal Mount, Less Well
L8148J1009/U Aquastat Control, 140–240°F, 120 VAC, Universal Mount, Less Well
L8148J1009/U Aquastat Control, 140–240°F, 120 VAC, Universal Mount, Less Well

L8148J1009/U Aquastat Control, 140–240°F, 120 VAC, Universal Mount, Less Well

Part #
L8148J1009/U
UPC
085267055239
$368.14

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 8 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L8148J1009/U — Aquastat Control, 140–240°F, 120 VAC, Universal Mount, Less Well.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L8148J1009/U
Application Combination Aquastat Relay for use with either Low Voltage or Power Pile Gas Valves
Approvals and Standards UL Listed (models with well): File No. MP466, Guide No. MBPR, CSA Certified: File No. LR1620, Guide No. 400-E-O
Color Gray
Compatible With Hot Water, Hydronic Heating Systems
Includes 50 VA transformer, Heat Conductive Compound
Mounting Type Horizontal Mount, Vertical Mount
Differential Temperature 8 °F Fixed
High Limit Set point Temperature (Min) 120 °F, 54 °C
High Limit Set point Temperature (Max) 240 °F, 116 °C
Electrical Connection Type Quick-Connect / Screw
Electrical Ratings at Full Load 7.4 A at 120 V AC, 3.7 A at 240 V AC
Electrical Ratings at Locked Rotor 44.4 A at 120 V AC, 22.2 A at 240 V AC
Electrical Ratings Millivolt At Locked Rotor-- 0.25 A at 1/4 to 12 V DC
Operating Frequency 60 Hz
Operating Pressure (Max) 255 psi Immersion Well, 1757 kPa Immersion Well
Operating Voltage 120 V AC
Switch Type SPST: High Limit and Circulator
Insulation Depth 1.5 in to 3 in, 38 mm to 76 mm
Capillary Length 4 1/2 in
Product Height 6.13 in, 156 mm
Product Length 4.31 in, 110 mm
Product Width 3.13 in, 79 mm
Hazmat Information Dangerous Goods in Excepted Quantities
UPC 085267055239

Ratings & details

  • High limit opens burner circuit only
