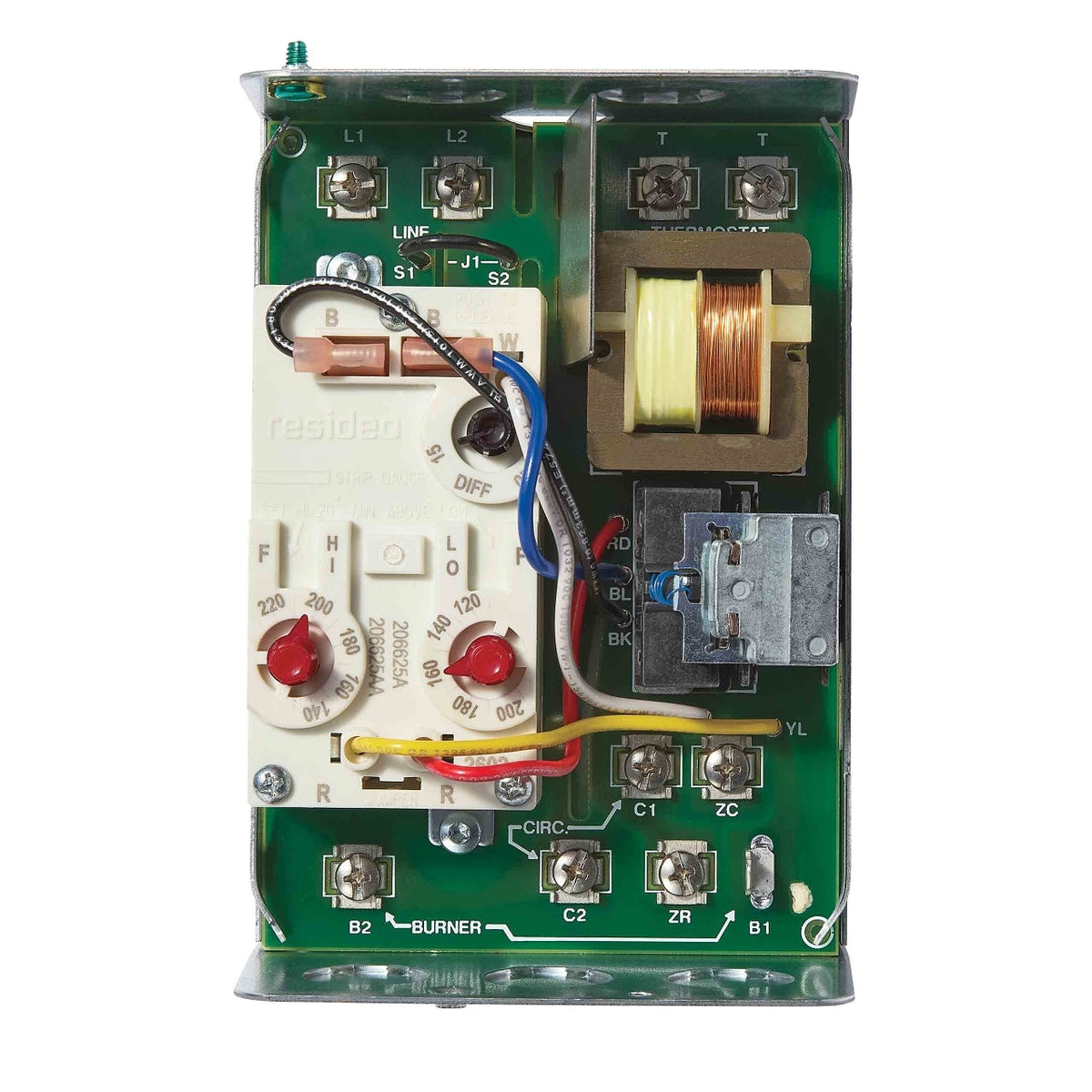

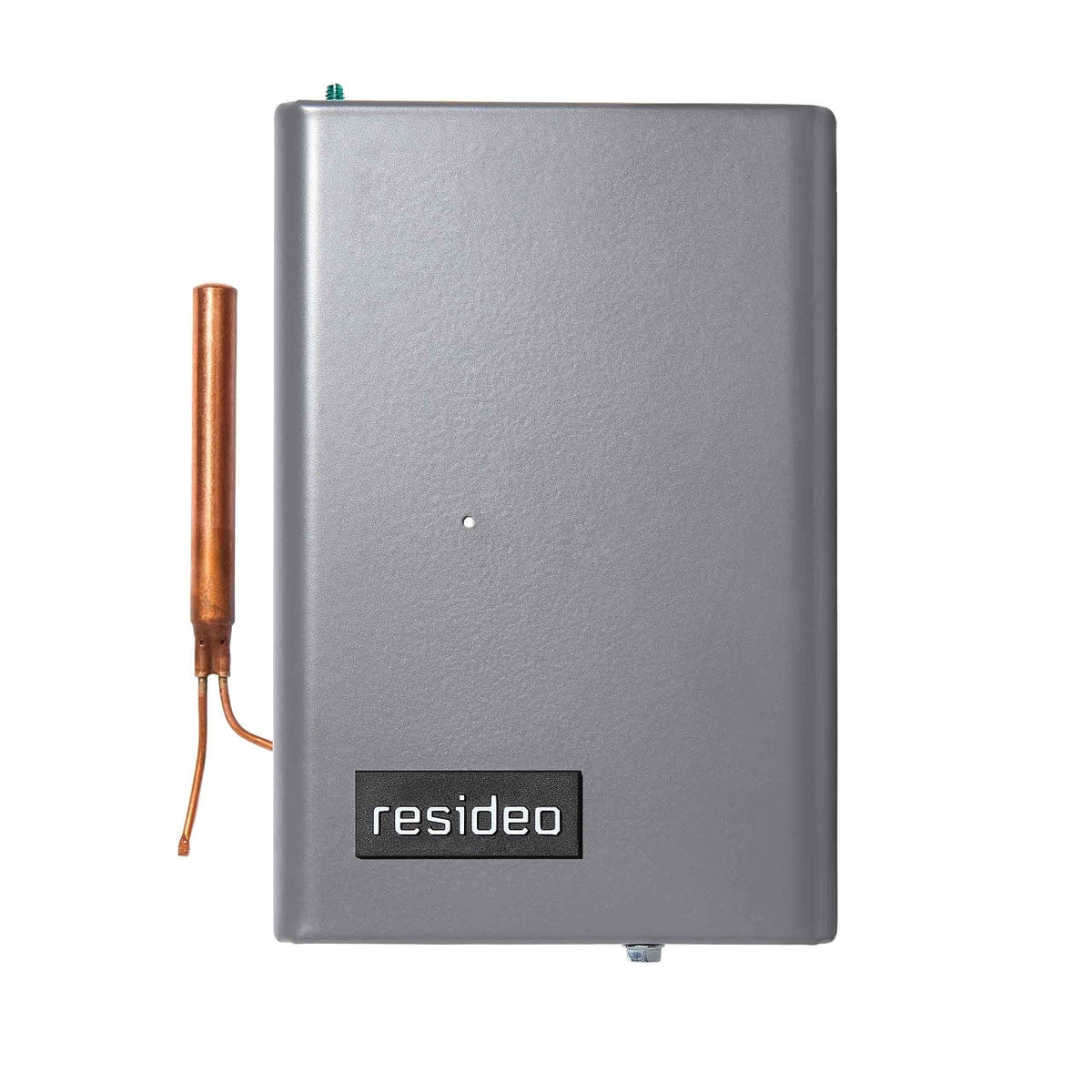

L8124A1015/U Triple Aquastat Relay, 120 VAC, High Limit 130–240°F, Low Limit 110–220°F
L8124A1015/U Triple Aquastat Relay, 120 VAC, High Limit 130–240°F, Low Limit 110–220°F

L8124A1015/U Triple Aquastat Relay, 120 VAC, High Limit 130–240°F, Low Limit 110–220°F

Part #
L8124A1015/U
UPC
085267054867
$401.87

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L8124A1015/U — Triple Aquastat Relay, 120 VAC, High Limit 130–240°F, Low Limit 110–220°F.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L8124A1015/U
Application Aquastat Relay with High Limit Protection, Circulator Control and Low Limit
Color Gray
Compatible With Hot Water, Hydronic Heating Systems
Includes 3 in insertion well and ground screw
Mounting Type Vertical Mount
Low Limit Differential Temperature 10 °F to 25 °F Adjustable
Low Limit Set point Temperature (Min) 110 °F, 43 °C, Adjustable
Low Limit Set point Temperature (Max) 220 °F, 104 °C, Adjustable
High Limit Differential Temperature 10 °F Fixed
High Limit Set point Temperature (Min) 130 °F, 54 °C, Adjustable
High Limit Set point Temperature (Max) 240 °F, 116 °C, Adjustable
Electrical Ratings at Full Load 7.4 A at 120 V AC, 3.7 A at 240 V AC
Electrical Ratings at Locked Rotor 44.4 A at 120 V AC, 22.2 A at 240 V AC
Operating Pressure (Max) 200 psi on outside of immersion well, 100 psi on capsule if inserted directly, 1378 kPa on outside of immersion well, 690 kPa on capsule if inserted directly
Insulation Depth 3 in, 76 mm
Product Height 6.13 in, 156 mm
Product Length 4.38 in, 111 mm
Product Width 3.06 in, 78 mm
Hazmat Information Dangerous Goods in Excepted Quantities
UPC 085267054867

Ratings & details

  • Mount directly to boiler
