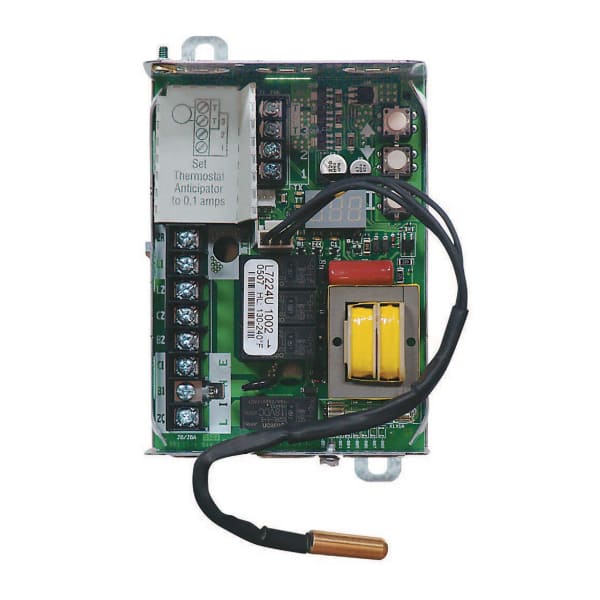

L7224U1002/U Universal Electronic Oil Aquastat with EnviraCOM Communication

L7224U1002/U Universal Electronic Oil Aquastat with EnviraCOM Communication

Part #
L7224U1002/U
UPC
085267255431
$257.57

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L7224U1002/U — Universal Electronic Oil Aquastat with EnviraCOM Communication.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L7224U1002/U
Type Electronic oil aquastat
Communication EnviraCOM
UPC 085267255431
Application Oil Aquastat Controller
Approvals and Standards UL Component Recognized, Canadian UL Component Recognized, 2012 Department of Energy Standards Compliant
Color Gray
Compatible With Hot Water, Hydronic Heating Systems
Mounting Type Flush Mounted, Remote Mount, Well Mount, Horizontal Mount, Vertical Mount
Low Limit Differential Temperature 10 °F to 25 °F Adjustable
Low Limit Set point Temperature (Min) 110 °F, 43 °C
Low Limit Set point Temperature (Max) 220 °F, 104 °C
High Limit Differential Temperature 5 °F to 20 °F Adjustable
High Limit Set point Temperature (Min) 130 °F, 54 °C
High Limit Set point Temperature (Max) 240 °F, 116 °C
Electrical Ratings at Full Load 7.4 A at 120 V AC
Electrical Ratings at Locked Rotor 44.4 A Inrush
Operating Frequency 60 Hz
Operating Voltage 120 V AC
Type of Fuel Oil
Switch Type 3 SPST: High and Low Limit, Circulator
Product Height 7.13 in, 181 mm
Product Length 4.25 in, 109 mm
Product Width 2.63 in, 67 mm
Operating Relative Humidity (Min) 0% Non-condensing
Operating Relative Humidity (Max) 95% Non-condensing

Ratings & details

  • Heat Conductive Grease 1/2 oz (120650/U)
