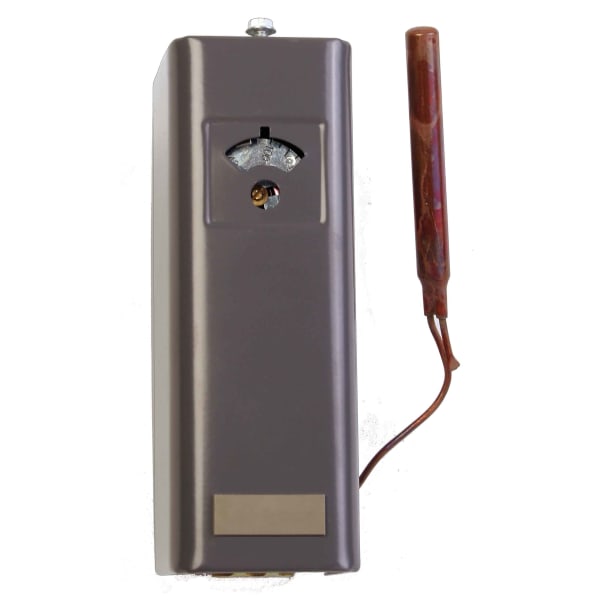

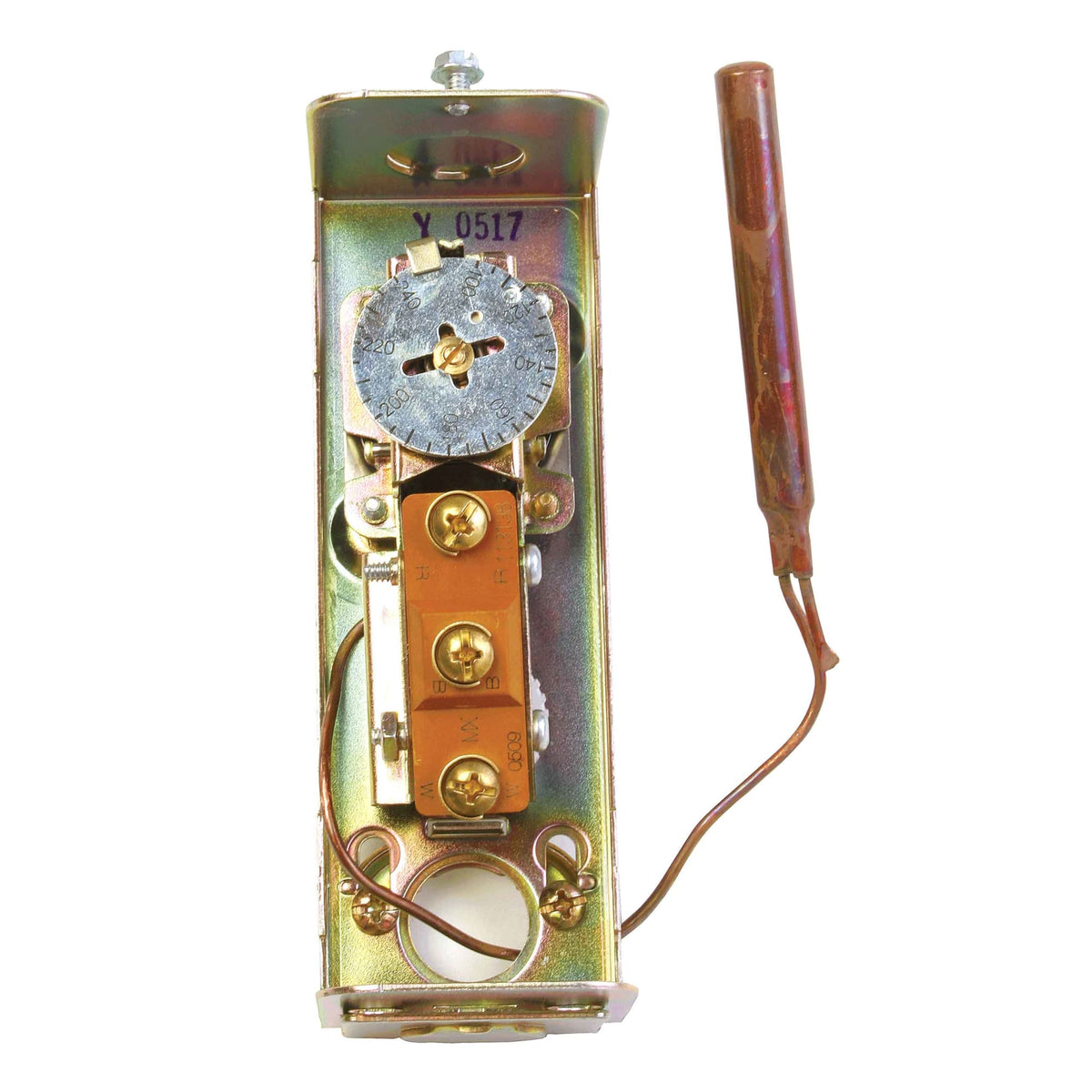

L6006A1012/U Circulator Aquastat Controller, High or Low Limit, Range 100-240 °F, 1/2 in NPT, Fixed Differential, SPST
L6006A1012/U Circulator Aquastat Controller, High or Low Limit, Range 100-240 °F, 1/2 in NPT, Fixed Differential, SPST

L6006A1012/U Circulator Aquastat Controller, High or Low Limit, Range 100-240 °F, 1/2 in NPT, Fixed Differential, SPST

Part #
L6006A1012/U
UPC
085267053686
$268.66

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Connection
1/2 in NPT
Finish
Gray

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L6006A1012/U — Circulator Aquastat Controller, High or Low Limit, Range 100-240 °F, 1/2 in NPT, Fixed Differential, SPST.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L6006A1012/U
Temperature range 100–240 °F
Differential Fixed
Switch action SPST
Connections 1/2 in NPT
UPC 085267053686
Application Circulator Control and High Limit or Low Limit
Approvals and Standards UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, CSA Certified: File No. LR95329-1
Color Gray
Compatible With Hot Water, Hydronic Heating Systems
Includes 1/2 in Well - 123869A
Mounting Type Horizontal Mount, Vertical Mount
Differential Temperature 5 °F Fixed, 3 °C Fixed
Electrical Ratings at Full Load 8 A @ 120 V AC, 5.1 A @ 240 V AC
Electrical Ratings at Locked Rotor 48 A @ 120 V AC, 30.6 A @ 240 V AC
Electrical Ratings Millivolt 0.25 A @ 0.25 to 12 V DC
Switch Type SPDT
Well Spud Size 1/2 in 14 NPT, 13 mm 14 NPT
Insulation Depth 1.5 in
Capillary Length 1 1/2 in
Bulb Diameter 3/8 in, 10 mm
Bulb Length 2 7/8 in, 73 mm
Bulb Material Copper (Cu)
Product Height 5.63 in, 143 mm
Product Width 2 in, 51 mm
Ambient Temperature (Max) 150 °F, 66 °C
Hazmat Information Dangerous Goods in Excepted Quantities
