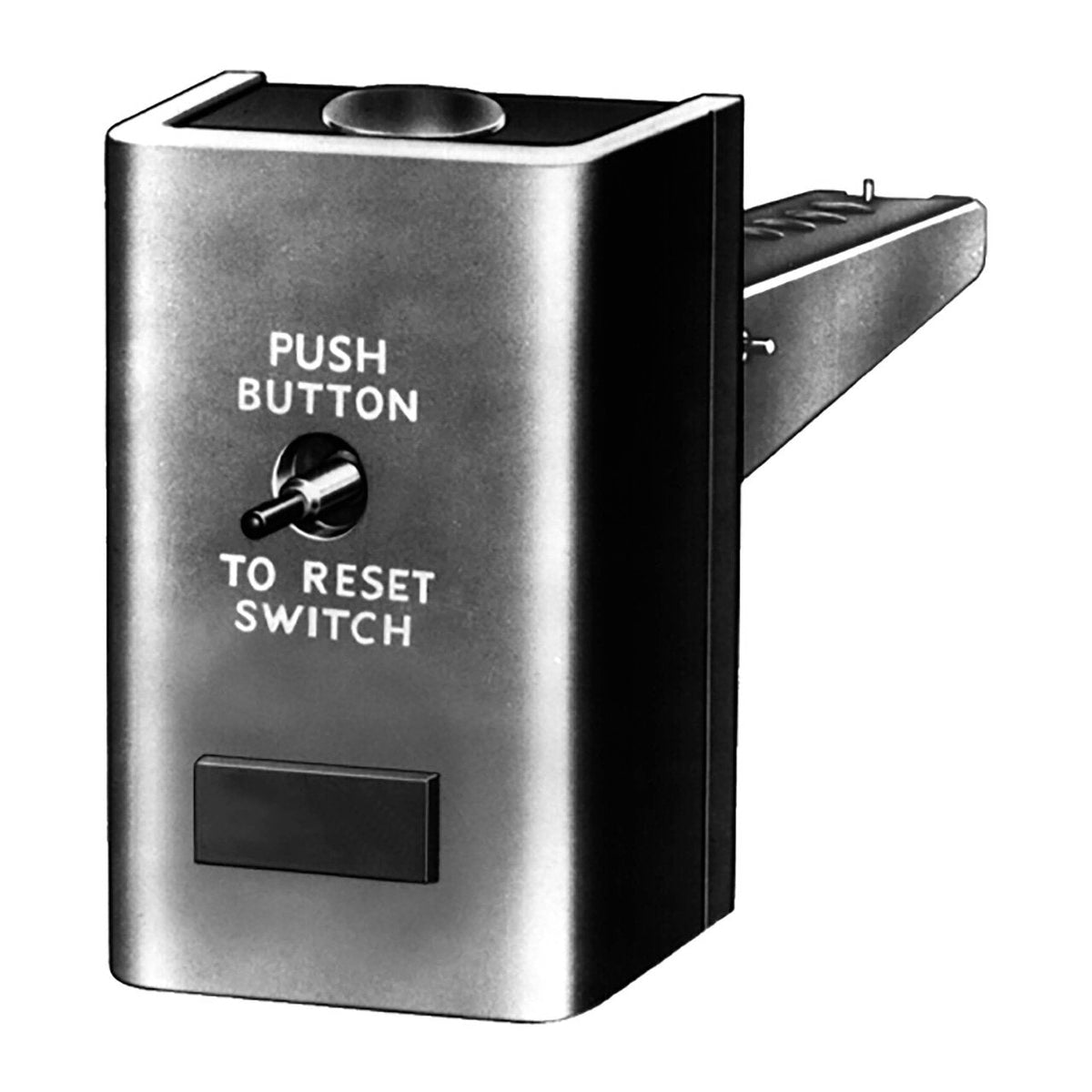

L4029E1227/U Limit Control, Factory Set 125°F, 3 in Insertion
- Part #
- L4029E1227/U
- UPC
- 085267049429
$197.41
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Smooth Gray
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
L4029E1227/U — Limit Control, Factory Set 125°F, 3 in Insertion.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | L4029E1227/U |
|---|---|
| Approvals and Standards | UL Listed: File No. MP466, Vol. 8, Guide No. MBPR2, CSA Certified: File No. LR95329-5 |
| Ambient Operating Temperature (Max) | 190 °F, 88 °C |
| High Limit Differential Temperature | 25 °F, 14 °C |
| Electrical Ratings at Full Load | Limit: 2 A @ 30 V AC: 10 A @ 120 V AC: 5 A @ 240 V AC |
| Electrical Ratings at Locked Rotor | Limit: 60 A @ 120 V AC: 30 A @ 240 V AC |
| Pilot Duty Rating | 0.25 A @ 0.25 to 12 V DC |
| Switch Action | Normally closed SPST switch opens on temperature rise to the set point, Switch must be manually reset to operate |
| Element Insertion Length | 3 in, 76 mm |
| Product Height | 3.75 in, 95 mm |
| Product Width | 2.31 in, 59 mm |
| Additional Dimensions Details | 2 in deep excluding element, 51 mm deep excluding element |
| Finish | Smooth Gray |
| UPC | 085267049429 |
| Country of Origin | MX |
Ratings & details
- Requires manual reset
