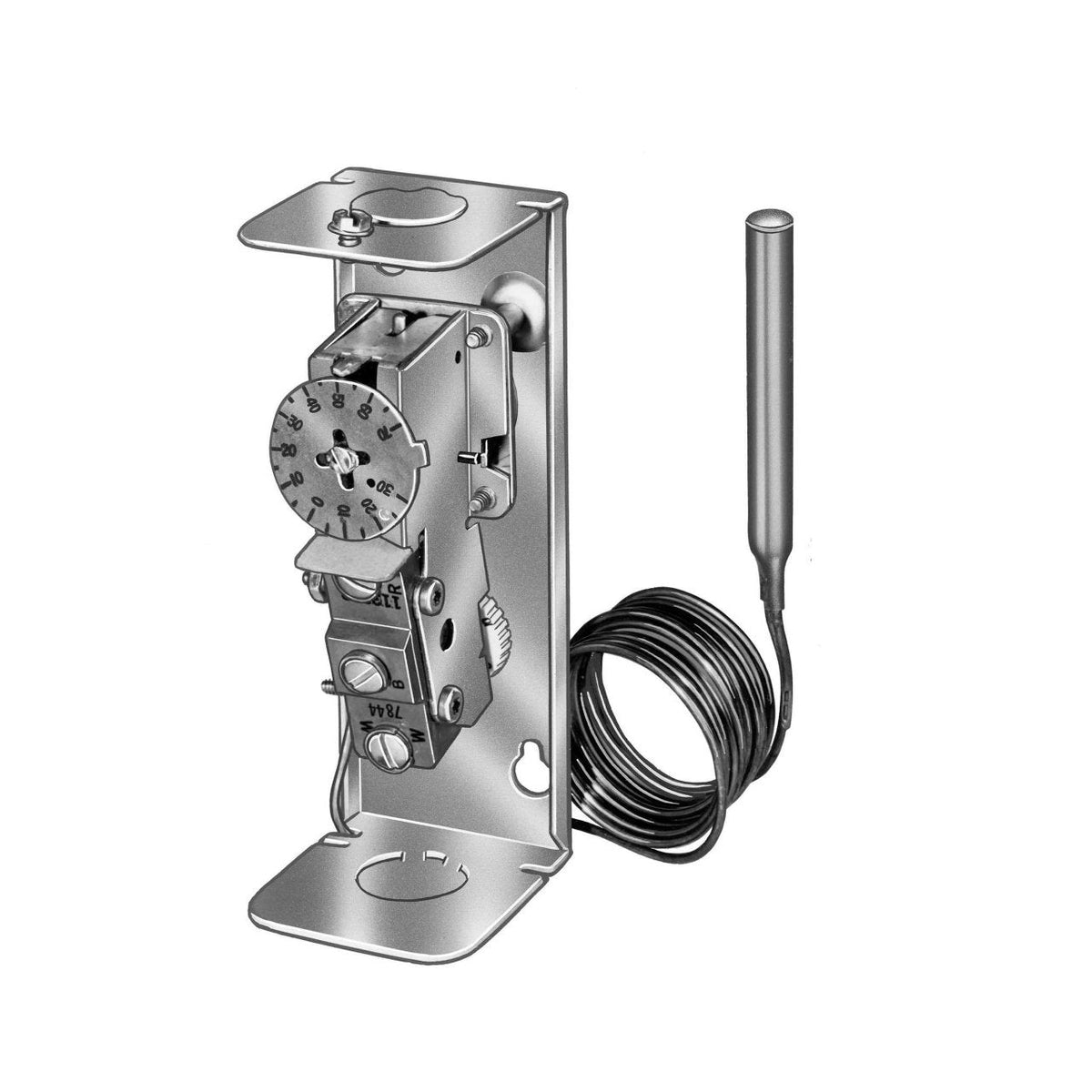

L4008E1305/U Manual Reset Aquastat, Breaks on Rise, 100–240°F, 66 in Capillary, Less Well
L4008E1305/U Manual Reset Aquastat, Breaks on Rise, 100–240°F, 66 in Capillary, Less Well

L4008E1305/U Manual Reset Aquastat, Breaks on Rise, 100–240°F, 66 in Capillary, Less Well

Part #
L4008E1305/U
UPC
085267136013
$291.23

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 7 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L4008E1305/U — Manual Reset Aquastat, Breaks on Rise, 100–240°F, 66 in Capillary, Less Well.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L4008E1305/U
Application High Limit Control with Manual Reset
Approvals and Standards UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, CSA Certified: File No. LR95329-1
Color Gray
Compatible With Hot Water, Hydronic Heating Systems
Mounting Type Horizontal Mount, Vertical Mount
Differential Temperature Manual Reset
Electrical Ratings at Full Load 8 A @ 120 V AC, 5.1 A @ 240 V AC
Electrical Ratings at Locked Rotor 48 A @ 120 V AC, 30.6 A @ 240 V AC
Electrical Ratings Millivolt 0.25 A @ 0.25 to 12 V DC
Switch Action Contacts break on temperature rise
Switch Type SPST - NC
Capillary Length 66 in
Bulb Diameter 3/8 in, 10 mm
Bulb Length 2 7/8 in, 73 mm
Bulb Material Copper (Cu)
Product Height 5.63 in, 143 mm
Product Width 2 in, 51 mm
Ambient Temperature (Max) 150 °F, 66 °C
Hazmat Information Dangerous Goods in Excepted Quantities
UPC 085267136013
Country of Origin MX
Product Features Stop factory- Set at 240 °F, Stop factory- Set at 116 °C

Ratings & details

  • Stop factory- Set at 240 °F
  • Stop factory- Set at 116 °C
