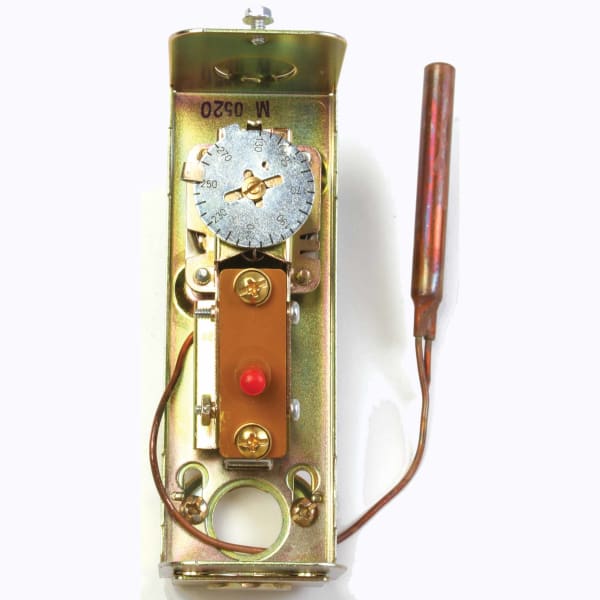

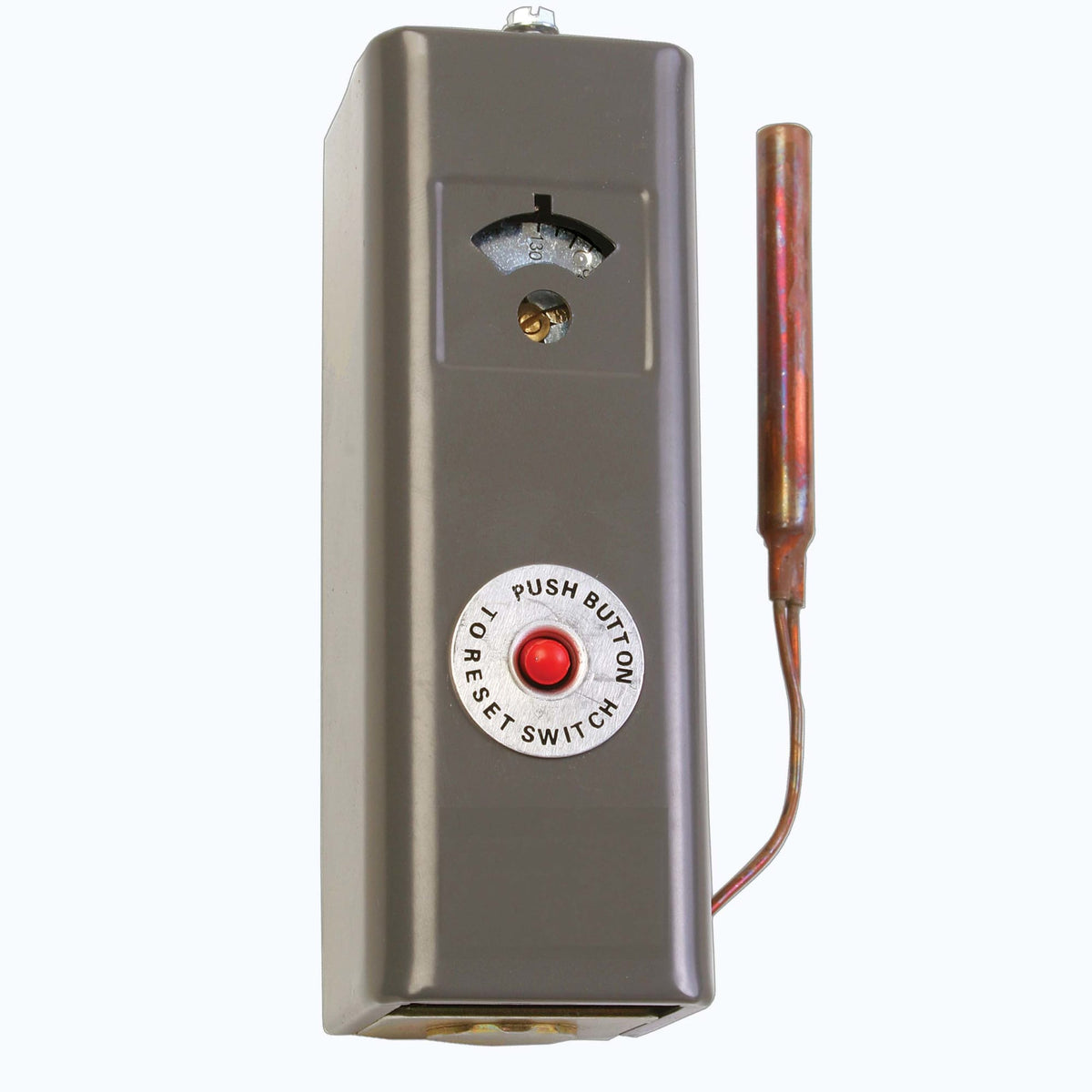

L4006E1067/U Aquastat, Breaks on Rise, 130-270F Range, 250F Factory Stop, Less Well
L4006E1067/U Aquastat, Breaks on Rise, 130-270F Range, 250F Factory Stop, Less Well

L4006E1067/U Aquastat, Breaks on Rise, 130-270F Range, 250F Factory Stop, Less Well

Part #
L4006E1067/U
UPC
085267048903
$273.94

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Metallic

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L4006E1067/U — Aquastat, Breaks on Rise, 130-270F Range, 250F Factory Stop, Less Well.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L4006E1067/U
Temperature range 130–270 °F
Immersion well Not included
Shipping Weight 5.0 lb
Application High Limit Control
Color Metallic
Compatible With Hot Water, Hydronic Heating Systems
Includes Heat Conductive Compound, Stop factory-set at 250 F (121 C), Well adapter
Mounting Type Horizontal Mount, Vertical Mount
Switch Type SPST - NC
Well Spud Size 1/2 in 14 NPT, 13 mm 14 NPT
Capillary Length 3 in
Bulb Length 3/8 in x 2 7/8 in
Bulb Material Copper (Cu)
Product Height 5.63 in
Product Length 2 in
Product Width 2.13 in
Hazmat Information Dangerous Goods in Excepted Quantities

Manufacturer documents
