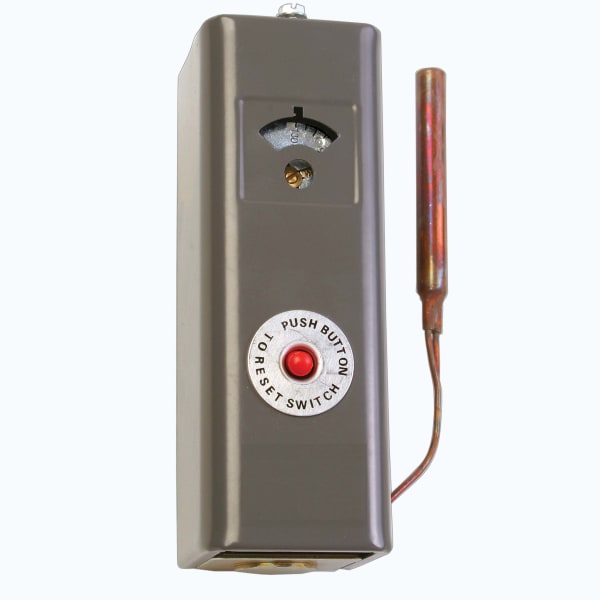

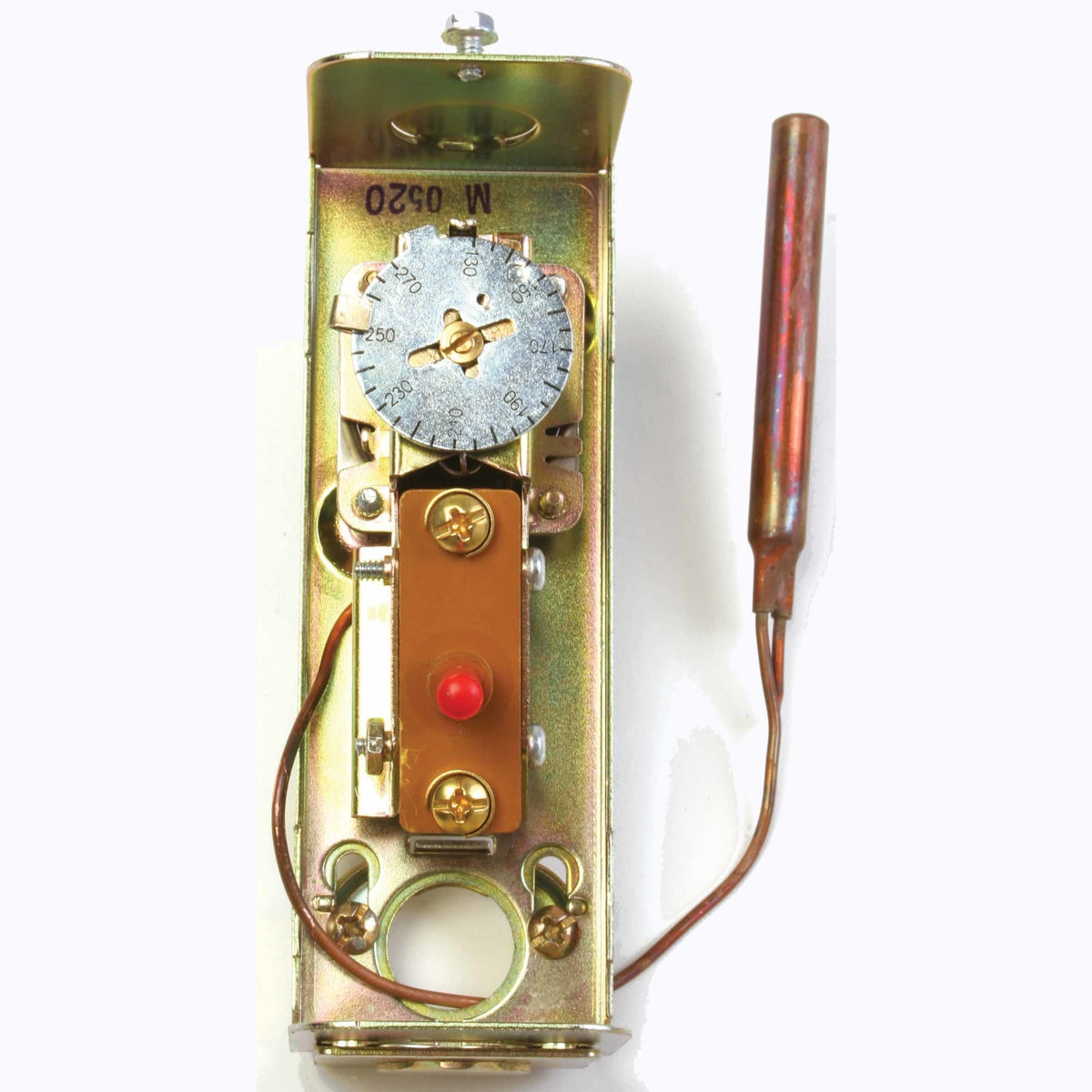

L4006E1042/U High Limit Aquastat Controller, Range 130-270 °F, Manual Reset, 8.5 in Capillary Length, SPST, Contacts Break on Temperature Rise
L4006E1042/U High Limit Aquastat Controller, Range 130-270 °F, Manual Reset, 8.5 in Capillary Length, SPST, Contacts Break on Temperature Rise

L4006E1042/U High Limit Aquastat Controller, Range 130-270 °F, Manual Reset, 8.5 in Capillary Length, SPST, Contacts Break on Temperature Rise

Part #
L4006E1042/U
UPC
085267048897
$282.83

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L4006E1042/U — High Limit Aquastat Controller, Range 130-270 °F, Manual Reset, 8.5 in Capillary Length, SPST, Contacts Break on Temperature Rise.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L4006E1042/U
Temperature range 130–270 °F
Switch action SPST
Reset Manual
Capillary length 8.5 in
UPC 085267048897
Application High Limit Control with Manual Reset
Product Features Stop factory- Set at 240 °F, Stop factory- Set at 116 °C
Approvals and Standards UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, CSA Certified: File No. LR95329-1, AGA Certified
Color Gray
Compatible With Hot Water, Hydronic Heating Systems
Differential Temperature Manual Reset
Operating Temperature (Min) 130 °F, 54 °C
Operating Temperature (Max) 270 °F, 132 °C
Electrical Ratings at Full Load 8 A @ 120 V AC, 5.1 A @ 240 V AC
Electrical Ratings at Locked Rotor 48 A @ 120 V AC, 30.6 A @ 240 V AC
Electrical Ratings Millivolt 0.25 A @ 0.25 to 12 V DC
Switch Type SPST
Well Spud Size 1/2 in 14 NPT, 13 mm 14 NPT
Insulation Depth 3 in
Bulb Diameter 3/8 in, 10 mm
Bulb Length 2 7/8 in, 73 mm
Bulb Material Copper (Cu)
Product Height 5.63 in, 143 mm
Product Width 2 in, 51 mm
Product Weight 1.26 lb, 0.57 kg
Ambient Temperature (Max) 150 °F, 66 °C
Hazmat Information Dangerous Goods in Excepted Quantities
