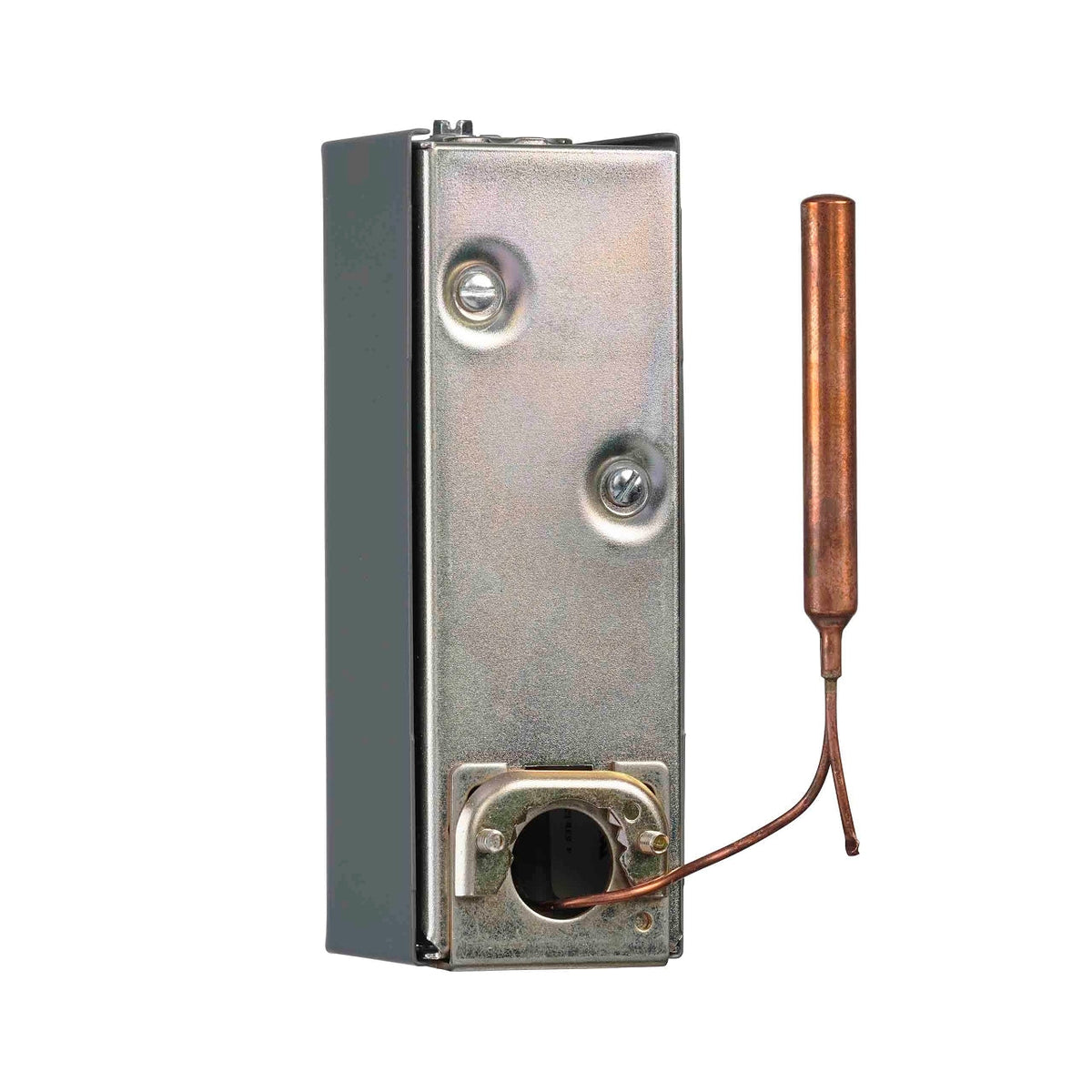

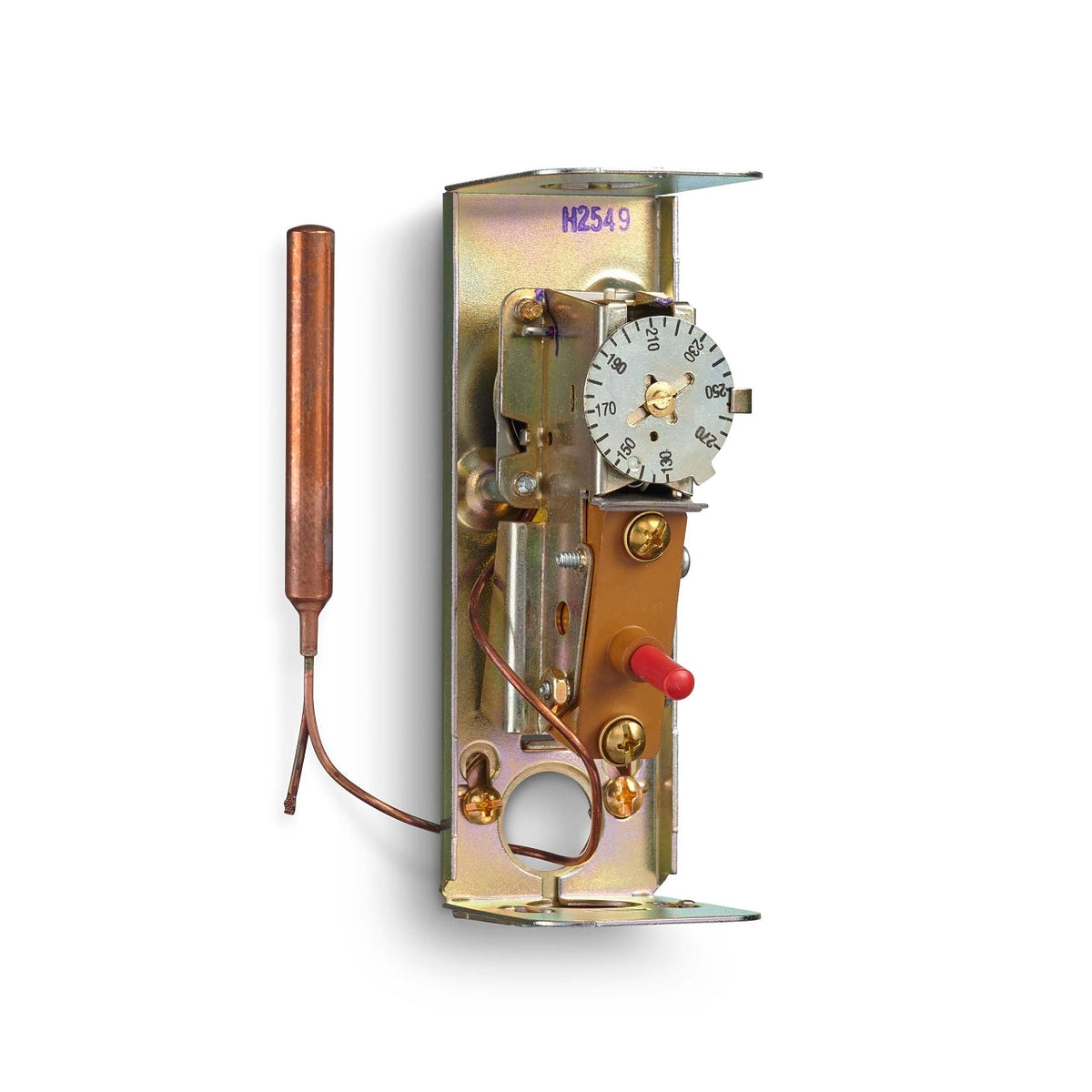

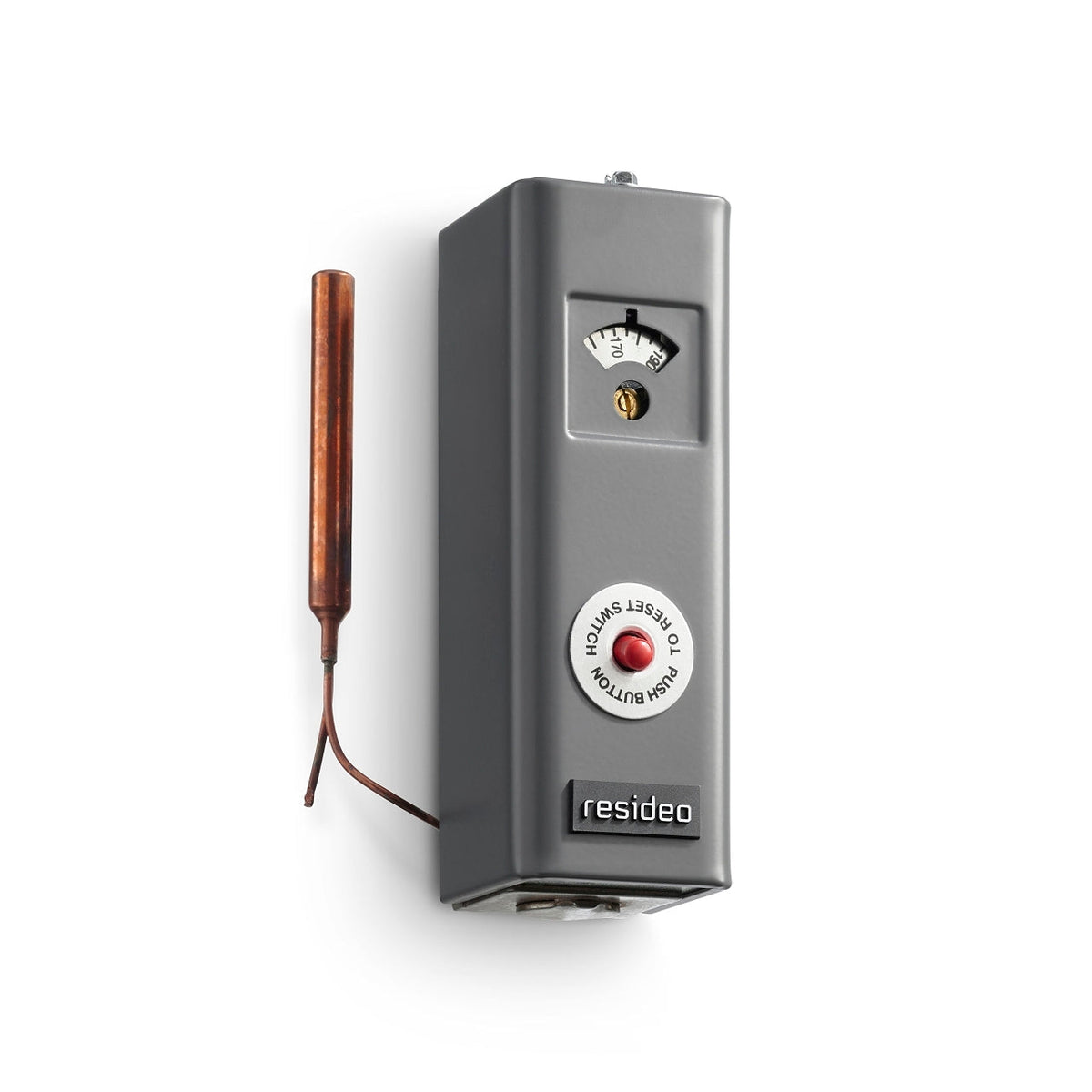

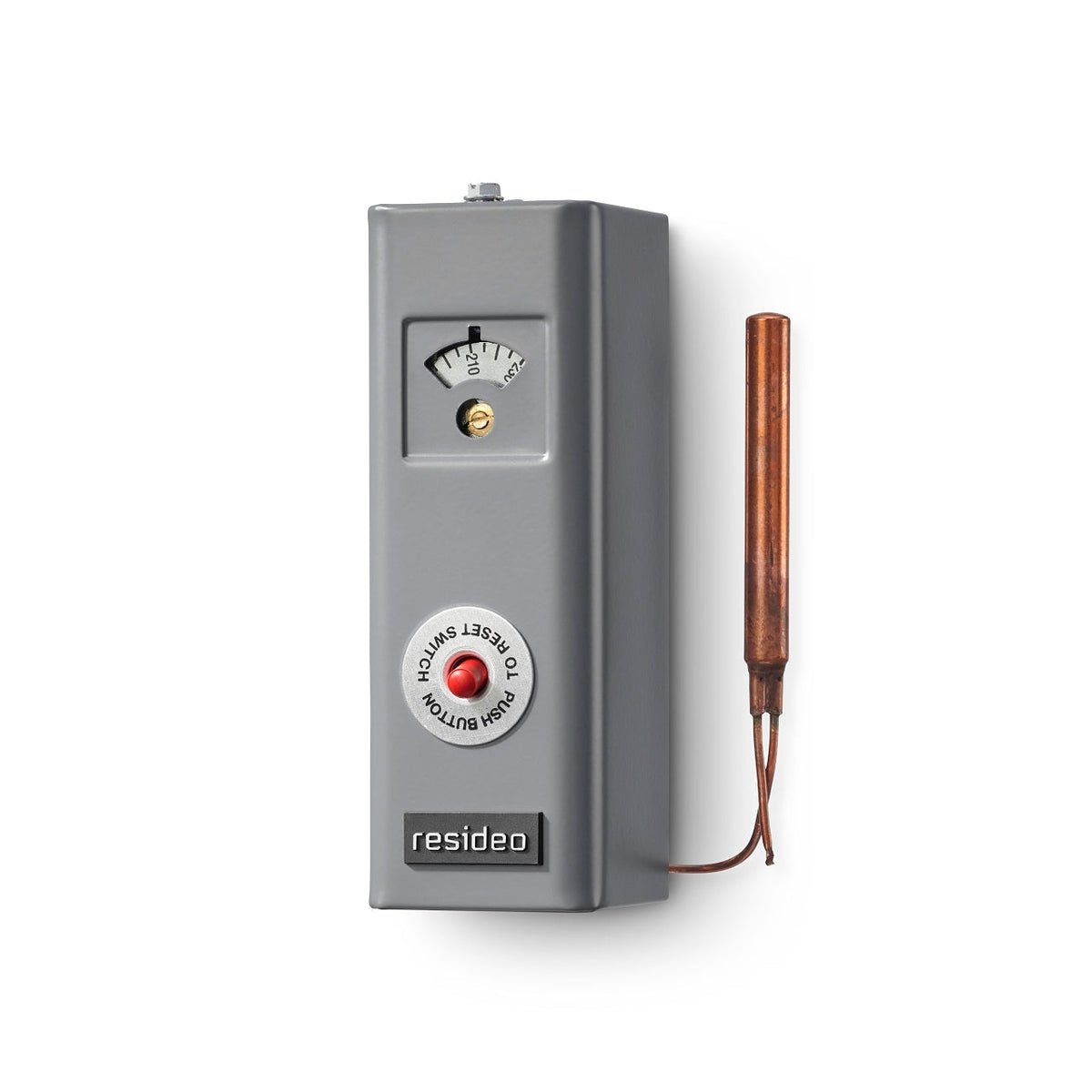

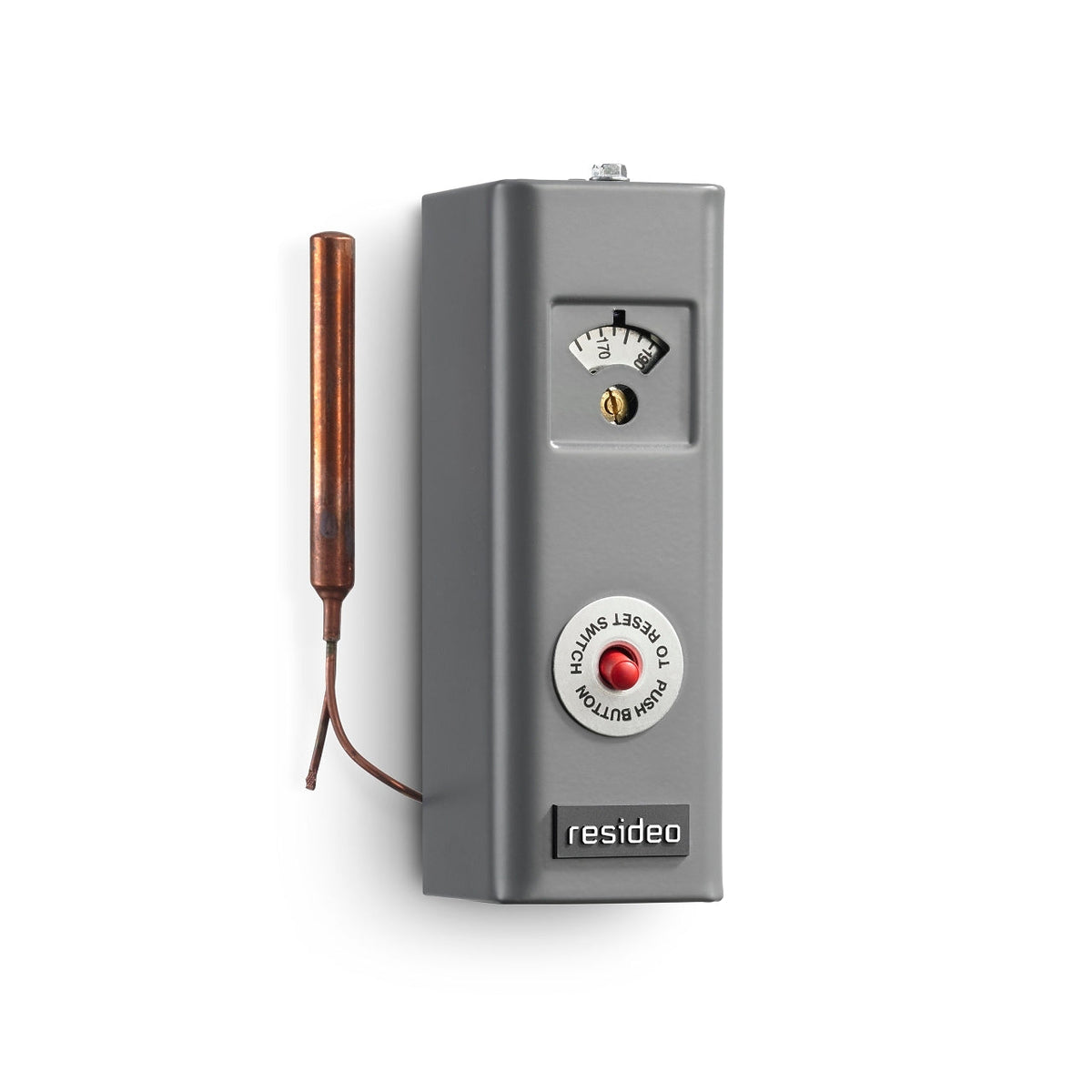

L4006E1000/U Manual Reset Aquastat, Breaks on Rise, 130–270°F, with 1/2 in Well
L4006E1000/U Manual Reset Aquastat, Breaks on Rise, 130–270°F, with 1/2 in Well
L4006E1000/U Manual Reset Aquastat, Breaks on Rise, 130–270°F, with 1/2 in Well
L4006E1000/U Manual Reset Aquastat, Breaks on Rise, 130–270°F, with 1/2 in Well
L4006E1000/U Manual Reset Aquastat, Breaks on Rise, 130–270°F, with 1/2 in Well

L4006E1000/U Manual Reset Aquastat, Breaks on Rise, 130–270°F, with 1/2 in Well

Part #
L4006E1000/U
UPC
085267048873
$156.46

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Metallic

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L4006E1000/U — Manual Reset Aquastat, Breaks on Rise, 130–270°F, with 1/2 in Well.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L4006E1000/U
Application High Limit Control
Approvals and Standards AGA Certified, UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
Color Metallic
Compatible With Hot Water, Hydronic Heating Systems
Includes Stop factory-set at 250 F (121 C)
Mounting Type Horizontal Mount, Vertical Mount
Differential Temperature Manual Reset
Limit Stop Factory set at 250 °F, Factory set at 121 °C
Operating Temperature (Min) 130 °F, 54 °C
Operating Temperature (Max) 270 °F, 132 °C
Electrical Ratings at Full Load 8A at 120 Vac, 1.3A at 240 Vac
Electrical Ratings at Locked Rotor 48A at 120 Vac, 30.6A at 240 Vac
Electrical Ratings Millivolt 0.25 A at 0.25 to 12 Vdc
Switch Action SPST, Contacts break on temperature rise
Well Spud Size 1/2 in 14 NPT, 13 mm 14 NPT
Capillary Length 1 1/2 in
Bulb Diameter 3/8 in, 10 mm
Bulb Length 2-7/8 in, 73 mm
Product Height 5.63 in
Product Length 2 in
Product Width 2.13 in
Product Weight 1.46 lb
Hazmat Information Dangerous Goods in Excepted Quantities
UPC 085267048873
Country of Origin MX

Ratings & details

  • Direct or well immersion of the sensing element
  • Models available for strap-on mounting
  • Models include heat-conductive compound
  • Select models have wells
  • UL limit rated device
