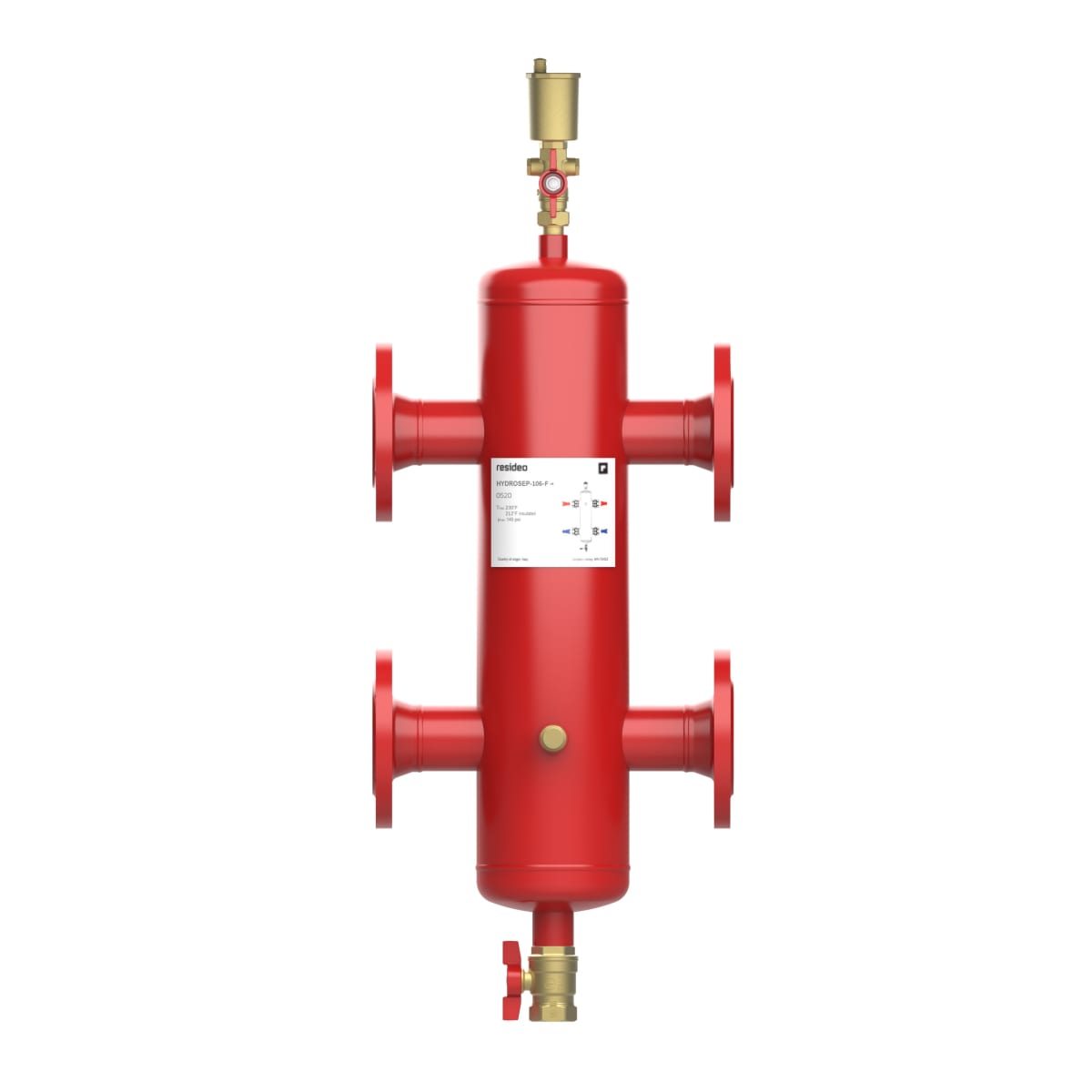

HYDROSEP-110-F/U Hydraulic Separator, 6 in Flanged
HYDROSEP-110-F/U Hydraulic Separator, 6 in Flanged
HYDROSEP-110-F/U Hydraulic Separator, 6 in Flanged
HYDROSEP-110-F/U Hydraulic Separator, 6 in Flanged
Ships by truck

HYDROSEP-110-F/U Hydraulic Separator, 6 in Flanged

Part #
HYDROSEP-110-F/U
UPC
194159006669
$6,833.57

Available · ships in 1–2 business days

Ships by truck · free freight delivery. The carrier calls you to schedule delivery.

Size
6"
Material
FE360 varnished Steel
Connection
Flange

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

HYDROSEP-110-F/U — Hydraulic Separator, 6 in Flanged.

Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.

Specifications

Part Number HYDROSEP-110-F/U
Connection Type Flange
Controlled Media Water; 50% (maximum) Glycol Mixture
Size 6"
Manufacturer Warranty 5 Years
UPC 194159006669
Pipe Size 6 in.
DN Size DN150
Separator Connection ASME 150 lb flange
Air Vent Valve Connection 1/2 in
Discharge Valve Connection 1 in
Flow Rate (Max) 418.27 gpm, 95 m3/h
Operating Pressure (Max) 145 psi, 10 Bar
Air Vent Operating Pressure (Max) 72 psi, 5 bar
Ambient Operating Temperature (Min) 32 °F, 0 °C
Ambient Operating Temperature (Max) 230 °F, 110 °C
Media Temperature (Min) 32 °F, 0 °C
Media Temperature (Max) 266 °F, 130 °C
Volume 28.79 gal, 109 L
Insulation Shell Thickness 0.78 in, 20 mm
Insulation Shell Material Polypropylene
Air Vent Material ASTM B124 UNS C37700 (CW617N EN 12165) Brass
Body Material FE360 varnished Steel
Drain Ball Valve Material ASTM B124 UNS C37700 (CW617N EN 12165) brass
